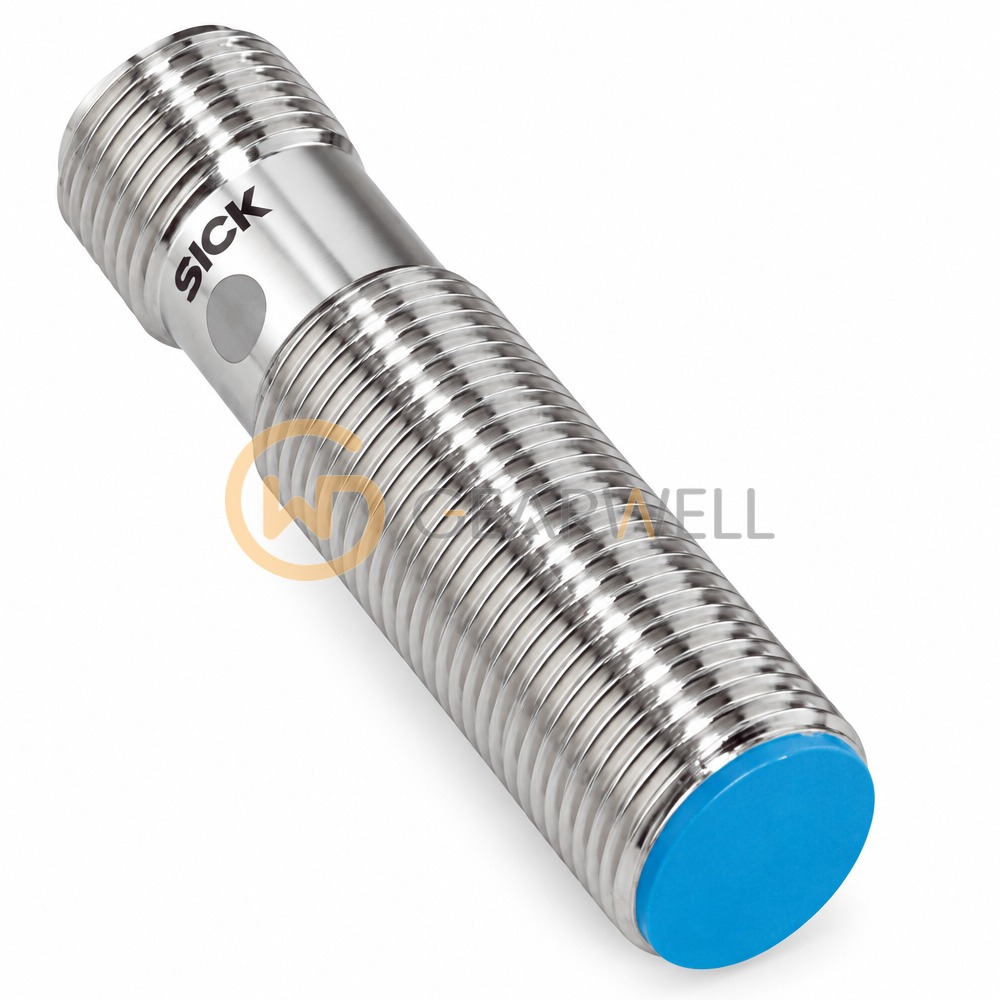

SICK 1065021 IME Inductive Proximity Sensor
- Brand
- SICK
- Model
- 1065021
- GEARWELL SKU
- GWP-000027726
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- PNP
- Connection
- Male connector M12, 4-pin
- Thread size
- M12x1
- Installation
- Flush
- Sensing range
- 4 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1065021 IME Inductive Proximity Sensor |
|---|---|
| Brand | SICK |
| Model | 1065021 |
| Category | Proximity & Photoelectric Sensors |
| Output | PNP |
| Connection | Male connector M12, 4-pin |
| Thread size | M12x1 |
| Installation | Flush |
| Sensing range | 4 mm |
| Housing length | 46 mm |
| Supply voltage | 10 ... 30 V DC |
| Enclosure rating | IP67 |
| Housing material | Stainless steel V2A, DIN 1.4305 / AISI 303 |
| Scope of delivery | 2 x fastening nut, stainless steel V2A |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Switching function | NO (normally open) |
| Switching frequency | 2000 Hz |
| Usable thread length | 29 mm |
| Sensing face material | Plastic, PA 66 |
| Ambient operating temperature | -25 ... +75 °C |
