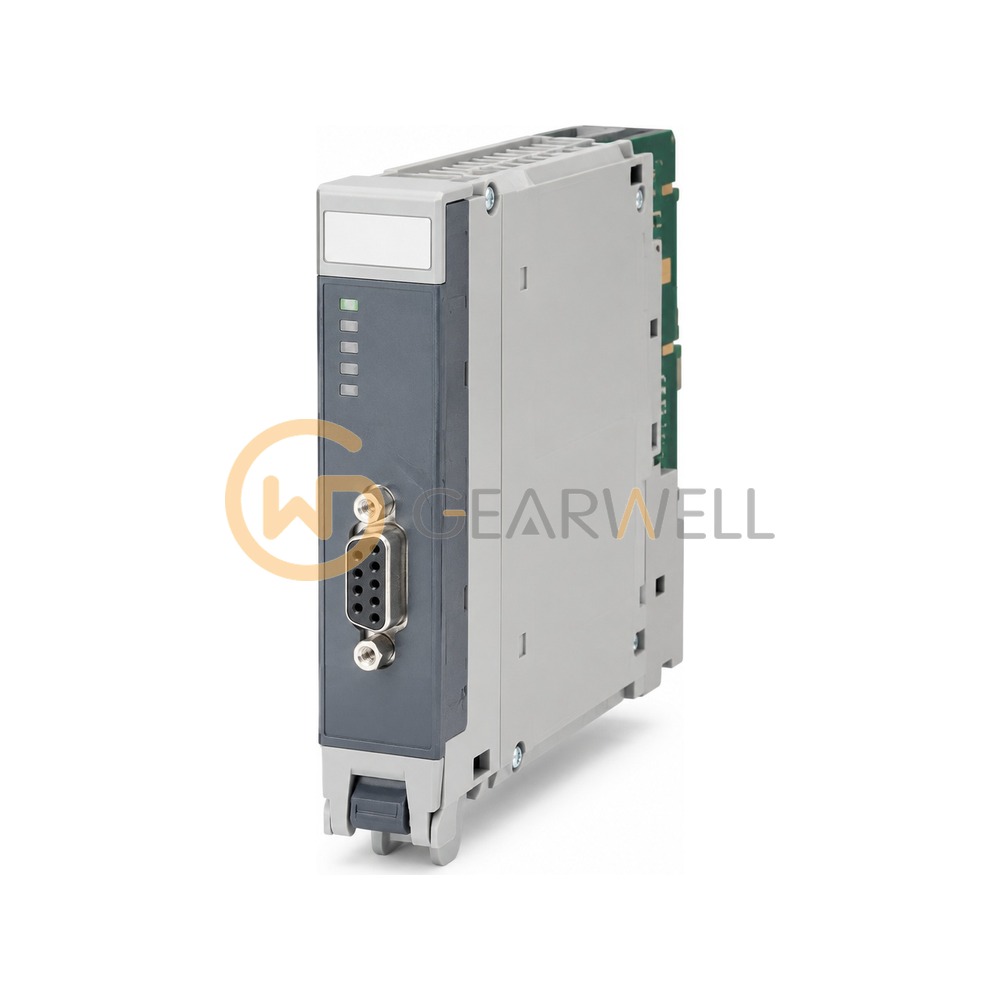

ProSoft Technology PTQ-PDPS PROFIBUS DP Slave Module for Quantum
- Brand
- ProSoft Technology
- Model
- PTQ-PDPS
- GEARWELL SKU
- GWP-000034861
- Category
- Industrial Communication
Key specifications
- Evidence
- ProSoft Technology PTQ-PDPS datasheet (prosoft-technology.com legacy downloads)
- I/O data
- 122 words input, 122 words output, 200 words combined max
- Baud rate
- 9.6 kbit/s to 12 Mbit/s
- Form factor
- Single slot, Quantum backplane (local rack, up to 4 per rack)
- Node address
- 0 to 125
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology PTQ-PDPS PROFIBUS DP Slave Module for Quantum |
|---|---|
| Brand | ProSoft Technology |
| Model | PTQ-PDPS |
| Category | Industrial Communication |
| Evidence | ProSoft Technology PTQ-PDPS datasheet (prosoft-technology.com legacy downloads) |
| I/O data | 122 words input, 122 words output, 200 words combined max |
| Baud rate | 9.6 kbit/s to 12 Mbit/s |
| Form factor | Single slot, Quantum backplane (local rack, up to 4 per rack) |
| Node address | 0 to 125 |
| PROFIBUS role | DP-V0 slave |
| Lifecycle status | Legacy product (ProSoft Legacy Products page) |
| PROFIBUS connector | DB-9F |
| Dimensions (H x W x D) | 250 x 103.85 x 40.34 mm |
| Operating temperature | 0 to 60 °C |
| Backplane current load | 1100 mA max @ 5 VDC |
