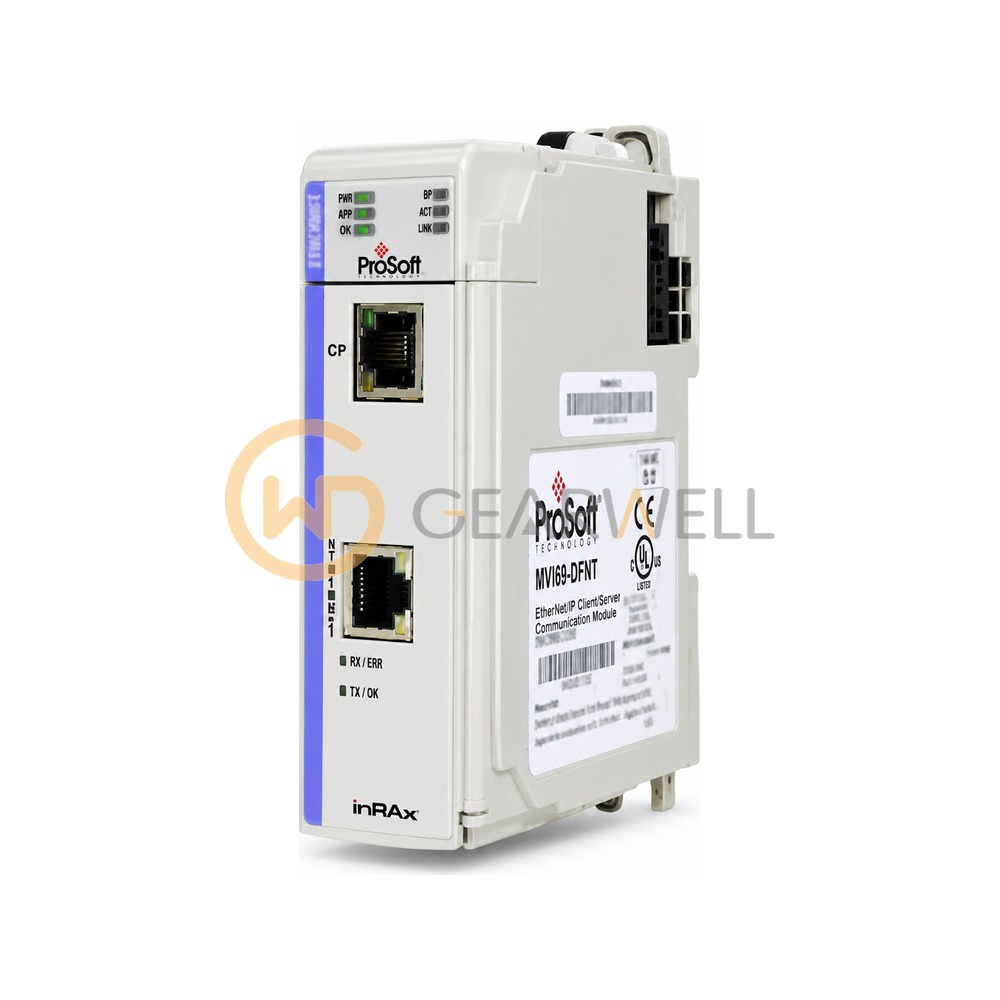

ProSoft Technology MVI69-DFNT EtherNet/IP Client/Server Module
- Brand
- ProSoft Technology
- Model
- MVI69-DFNT
- GEARWELL SKU
- GWP-000034858
- Category
- Industrial Communication
Key specifications
- Servers
- 20
- Commands
- Up to 100 user-configured commands
- Evidence
- ProSoft Technology official product page (prosoft-technology.com)
- Protocol
- EtherNet/IP (DF1 for Ethernet), explicit messaging client/server
- Form factor
- Single slot, 1769 backplane
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology MVI69-DFNT EtherNet/IP Client/Server Module |
|---|---|
| Brand | ProSoft Technology |
| Model | MVI69-DFNT |
| Category | Industrial Communication |
| Servers | 20 |
| Commands | Up to 100 user-configured commands |
| Evidence | ProSoft Technology official product page (prosoft-technology.com) |
| Protocol | EtherNet/IP (DF1 for Ethernet), explicit messaging client/server |
| Form factor | Single slot, 1769 backplane |
| Seller code | ProSoft MVI69-DFNT |
| Current load | 800 mA max @ 5 VDC |
| Ethernet port | 10/100 Base-T |
| Lifecycle status | Limited Availability |
| Electrical isolation | 1500 V rms at 50-60 Hz for 60 s |
| Operating temperature | 0 to 60 °C |
