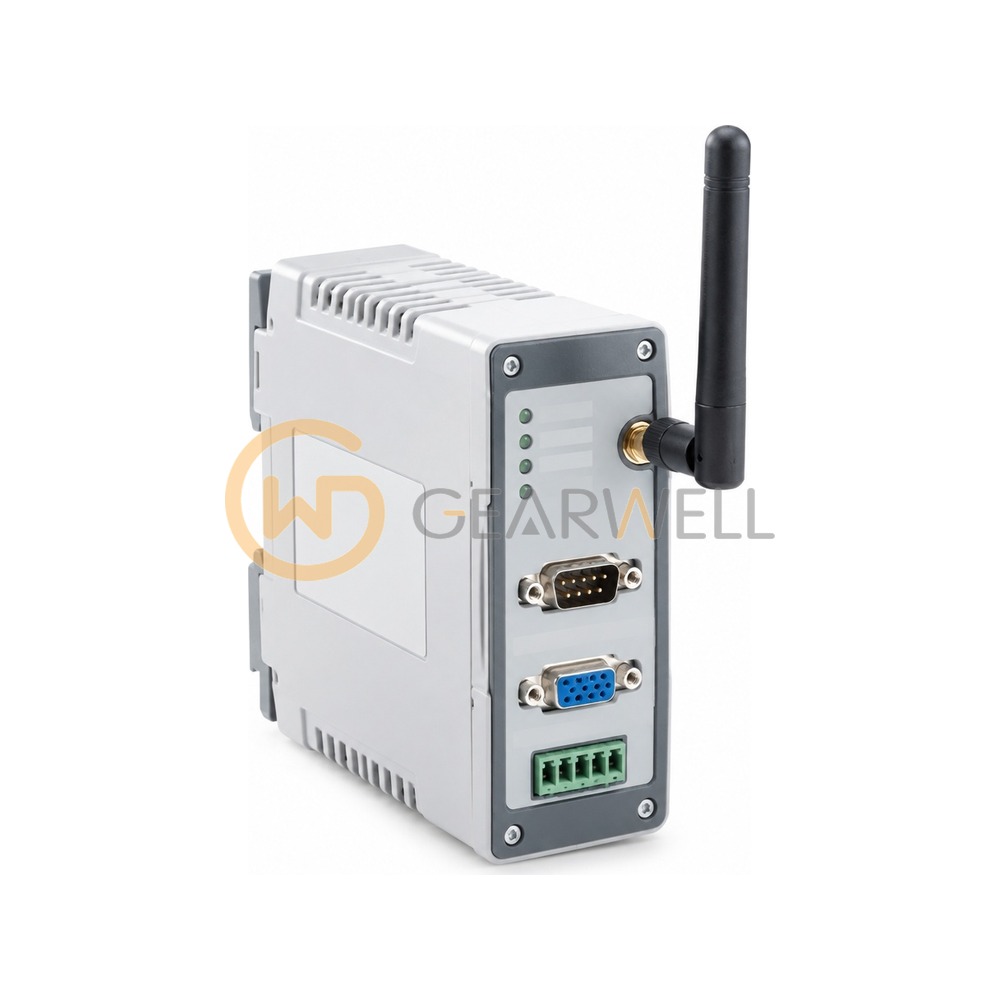

ProSoft Technology 6105-WA-PDPS Wireless PROFIBUS DP Slave Gateway
- Brand
- ProSoft Technology
- Model
- 6105-WA-PDPS
- GEARWELL SKU
- GWP-000034856
- Category
- Industrial Communication
Key specifications
- Radio
- 2.4 GHz DSSS 802.11b, 11/5.5/2/1 Mbps, 32 mW (15 dBm)
- Evidence
- ProSoft Technology 'Wireless PROFIBUS Gateways 6104-WA-PDPM / 6105-WA-PDPS' datasheet (prosoft-technology.com legacy downloads)
- I/O data
- 244 bytes input, 244 bytes output, 400 bytes total
- Power supply
- 24 VDC nominal, 18 to 36 VDC; 500 mA max @ 24 VDC
- Antenna ports
- 2 x RP-SMA, automatic antenna diversity
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology 6105-WA-PDPS Wireless PROFIBUS DP Slave Gateway |
|---|---|
| Brand | ProSoft Technology |
| Model | 6105-WA-PDPS |
| Category | Industrial Communication |
| Radio | 2.4 GHz DSSS 802.11b, 11/5.5/2/1 Mbps, 32 mW (15 dBm) |
| Evidence | ProSoft Technology 'Wireless PROFIBUS Gateways 6104-WA-PDPM / 6105-WA-PDPS' datasheet (prosoft-technology.com legacy downloads) |
| I/O data | 244 bytes input, 244 bytes output, 400 bytes total |
| Power supply | 24 VDC nominal, 18 to 36 VDC; 500 mA max @ 24 VDC |
| Antenna ports | 2 x RP-SMA, automatic antenna diversity |
| PROFIBUS role | DP-V0 slave (Siemens SPC3 chipset), node address 1 to 125 |
| Lifecycle status | Legacy product (ProSoft Legacy Products page) |
| PROFIBUS baud rate | 9.6 kbit/s to 12 Mbit/s |
| Operating temperature | -20 to 50 °C |
