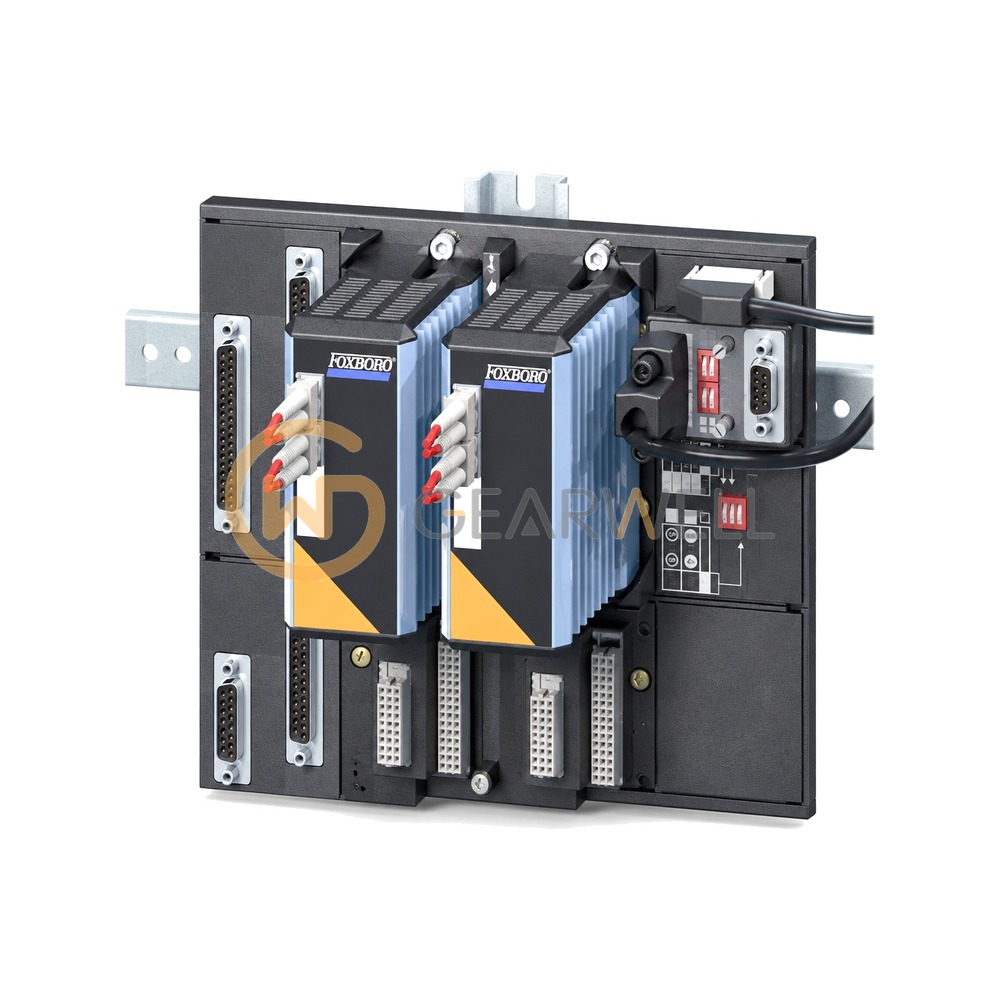

Foxboro FCM100Et I/A Series Redundant Fieldbus Communications Module
- Brand
- Foxboro
- Model
- FCM100Et
- GEARWELL SKU
- GWP-000035374
- Category
- Industrial Communication
Key specifications
- Mass
- 284 g (10 oz) approximate
- Evidence
- Foxboro PSS 21H-2Y10 B4 (official PSS hosted at paresource.se.com)
- Part number
- P0926GS
- Supply voltage
- 24 V dc +5%, -10%
- Control network
- The MESH, 100 Mbps fiber optic Ethernet (MMF 62.5/125 µm, LC connectors)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Foxboro FCM100Et I/A Series Redundant Fieldbus Communications Module |
|---|---|
| Brand | Foxboro |
| Model | FCM100Et |
| Category | Industrial Communication |
| Mass | 284 g (10 oz) approximate |
| Evidence | Foxboro PSS 21H-2Y10 B4 (official PSS hosted at paresource.se.com) |
| Part number | P0926GS |
| Supply voltage | 24 V dc +5%, -10% |
| Control network | The MESH, 100 Mbps fiber optic Ethernet (MMF 62.5/125 µm, LC connectors) |
| Module fieldbus | HDLC, 2 Mbps |
| Dimensions (H x W x D) | 102 x 45 x 104 mm |
| FBMs per FCM100Et (max.) | 32 |
| Operating temperature | 0 to +50 °C |
| Power consumption (max.) | 7 W |
| Product specification | PSS 21H-2Y10 B4 |
