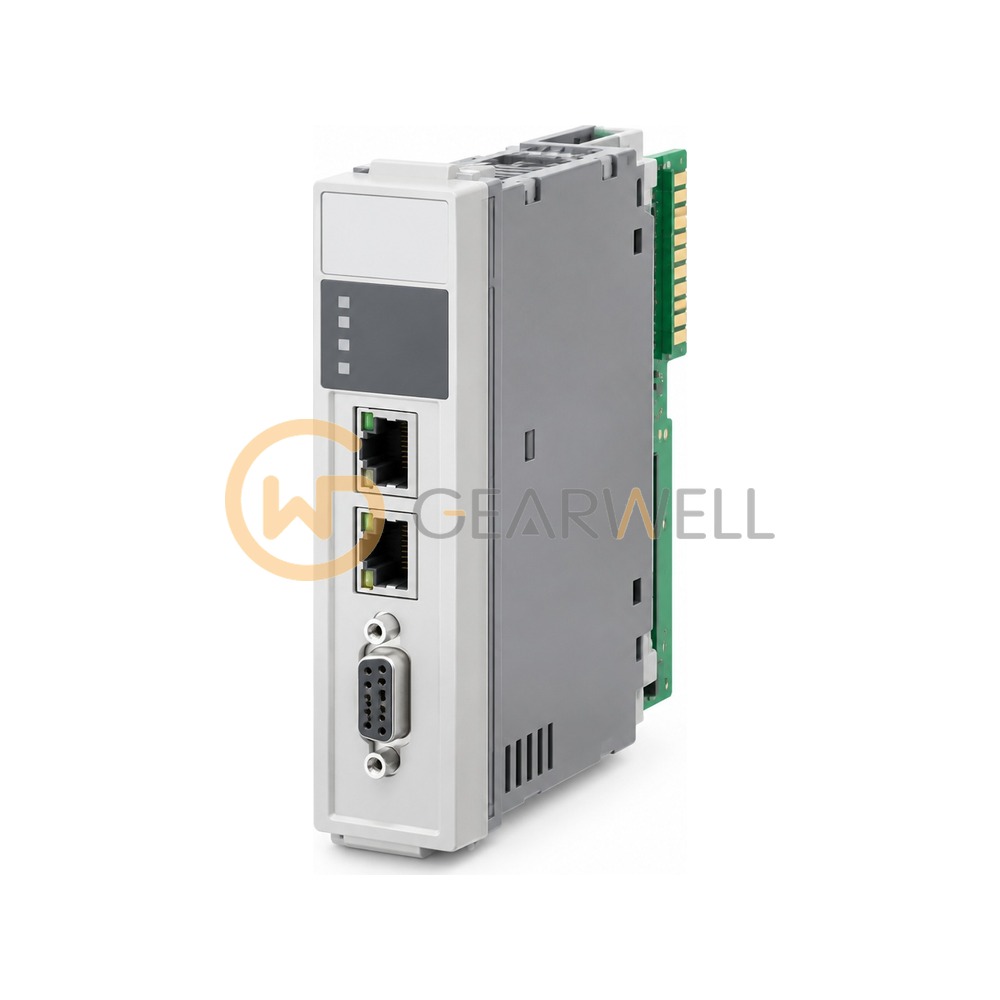

ProSoft Technology MVI94-MCM-MHI Modbus Master/Slave Module
- Brand
- ProSoft Technology
- Model
- MVI94-MCM-MHI
- GEARWELL SKU
- GWP-000034860
- Category
- Industrial Communication
Key specifications
- Version
- OEM version of MVI94-MCM (Version 1.12M)
- Evidence
- ProSoft Technology MVI94-MCM datasheet, ordering information lists MVI94-MCM-MHI (prosoft-technology.com)
- Form factor
- Single slot, 1794 FLEX backplane
- Serial ports
- PRT1 RS-232 config (Mini-DIN); PRT2 RS-232/422/485 jumper selectable, 500 V isolation
- Data registers
- Up to 5000 registers
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology MVI94-MCM-MHI Modbus Master/Slave Module |
|---|---|
| Brand | ProSoft Technology |
| Model | MVI94-MCM-MHI |
| Category | Industrial Communication |
| Version | OEM version of MVI94-MCM (Version 1.12M) |
| Evidence | ProSoft Technology MVI94-MCM datasheet, ordering information lists MVI94-MCM-MHI (prosoft-technology.com) |
| Form factor | Single slot, 1794 FLEX backplane |
| Serial ports | PRT1 RS-232 config (Mini-DIN); PRT2 RS-232/422/485 jumper selectable, 500 V isolation |
| Data registers | Up to 5000 registers |
| Master commands | 100 per port |
| Lifecycle status | Discontinued (ProSoft LifeCycle Letter MVI94-MCM-MHI, MVI94-DNP, MVI94-ADM, 23 Aug 2022) |
| External power supply | 12 to 24 VDC, 340 to 170 mA |
| Operating temperature | 0 to 55 °C |
| Modbus functions (slave) | 1, 2, 3, 4, 5, 6, 15, 16 |
| Dimensions (H x W x D, in base) | 94.0 x 94.0 x 69.0 mm |
