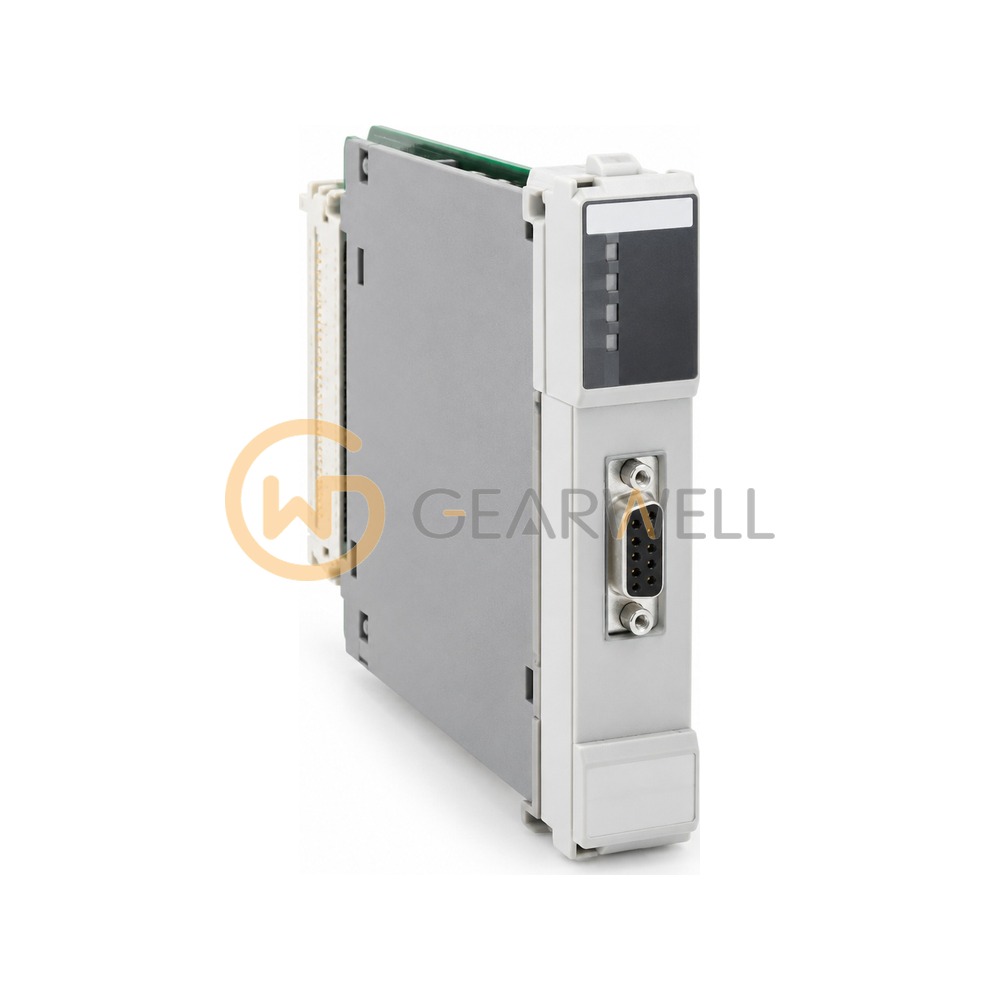

ProSoft Technology MVI69-GSC CompactLogix Generic ASCII Serial Module
- Brand
- ProSoft Technology
- Model
- MVI69-GSC
- GEARWELL SKU
- GWP-000034859
- Category
- Industrial Communication
Key specifications
- Platform
- CompactLogix / MicroLogix 1500 LRP, single slot 1769 backplane
- Baud rate
- 110 to 115.2K baud
- Isolation
- 500 V optical isolation from backplane
- String length
- up to 4096 characters
- Application ports
- 2 ASCII ports, RS-232/RS-485/RS-422 (jumper selectable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology MVI69-GSC CompactLogix Generic ASCII Serial Module |
|---|---|
| Brand | ProSoft Technology |
| Model | MVI69-GSC |
| Category | Industrial Communication |
| Platform | CompactLogix / MicroLogix 1500 LRP, single slot 1769 backplane |
| Baud rate | 110 to 115.2K baud |
| Isolation | 500 V optical isolation from backplane |
| String length | up to 4096 characters |
| Application ports | 2 ASCII ports, RS-232/RS-485/RS-422 (jumper selectable) |
| Register transfer | up to 4000 registers |
| Operating temperature | 0 to 60 °C |
