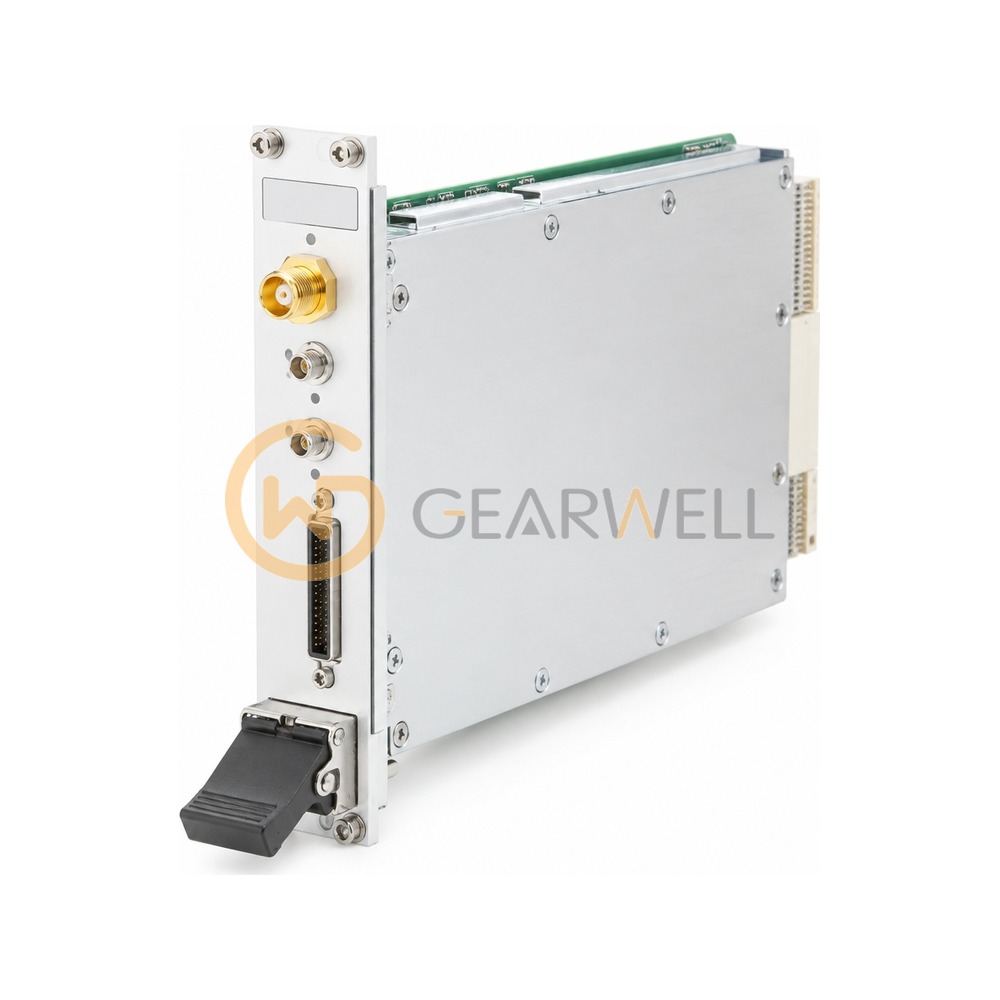

National Instruments PXI-5600 PXI RF Downconverter Module
- Brand
- National Instruments
- Model
- PXI-5600
- GEARWELL SKU
- GWP-000034737
- Category
- Test & Measurement
Key specifications
- Evidence
- National Instruments 374421E-01 NI PXI-5661 Specifications (NI 5600 downconverter tables) (hosted at apexwaves.com)
- Form factor
- 3U, three-slot PXI/cPCI module, 21.6 x 6.0 x 13.0 cm
- Frequency range
- 9 kHz to 2.7 GHz
- Identity document
- National Instruments 373786B-01 PXI-5600 Letter of Volatility (hosted at apexwaves.com)
- Power requirements
- +3.3 V 920 mA, +5 V 2.3 A, +12 V 700 mA, -12 V 115 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments PXI-5600 PXI RF Downconverter Module |
|---|---|
| Brand | National Instruments |
| Model | PXI-5600 |
| Category | Test & Measurement |
| Evidence | National Instruments 374421E-01 NI PXI-5661 Specifications (NI 5600 downconverter tables) (hosted at apexwaves.com) |
| Form factor | 3U, three-slot PXI/cPCI module, 21.6 x 6.0 x 13.0 cm |
| Frequency range | 9 kHz to 2.7 GHz |
| Identity document | National Instruments 373786B-01 PXI-5600 Letter of Volatility (hosted at apexwaves.com) |
| Power requirements | +3.3 V 920 mA, +5 V 2.3 A, +12 V 700 mA, -12 V 115 mA |
| RF input / IF output | SMA female, 50 Ω, AC coupled |
| Calibration interval | 1 year |
| Instantaneous bandwidth | 20 MHz |
| Hardware tuning resolution | 1 MHz, minimum |
