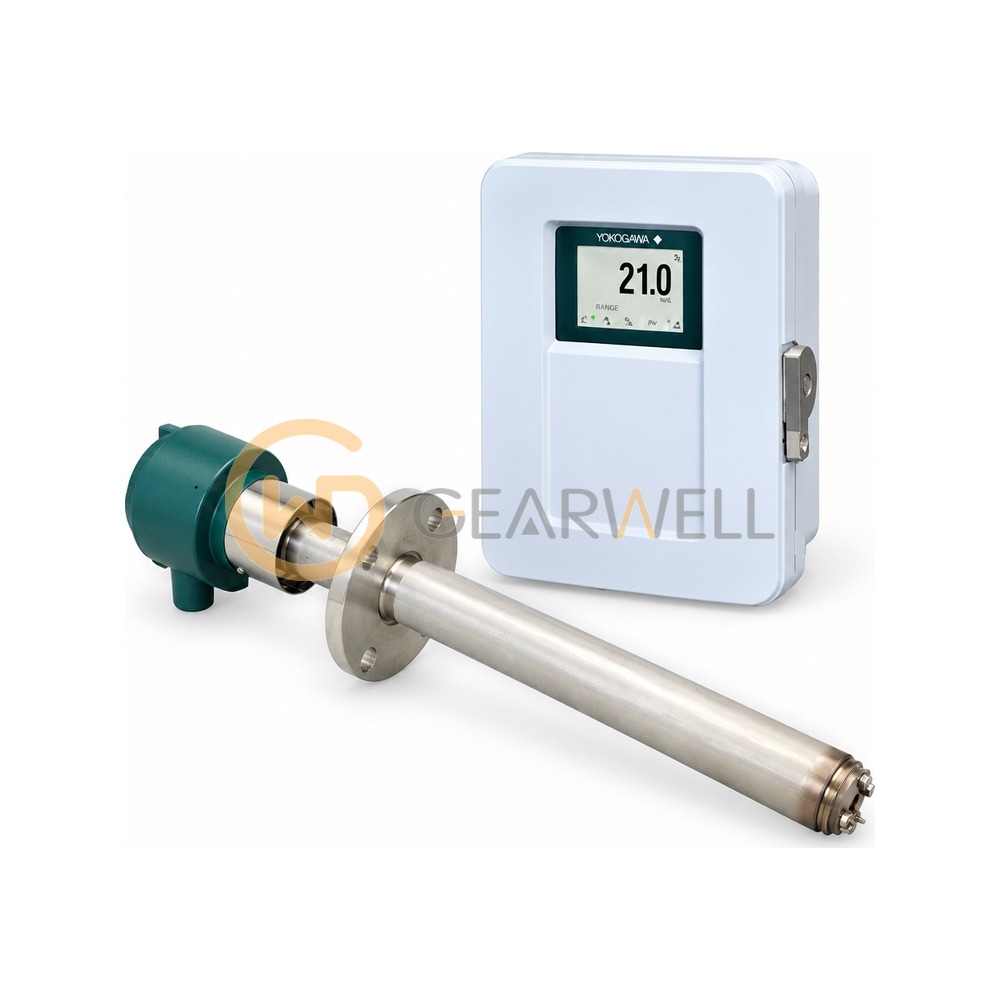

YOKOGAWA ZR22G-040-S-A-E-T-T-E-A Zirconia Oxygen Analyzer Detector
- Brand
- YOKOGAWA
- Model
- ZR22G-040-S-A-E-T-T-E-A
- GEARWELL SKU
- GWP-000035368
- Category
- Test & Measurement
Key specifications
- Suffix -A
- Always -A
- Suffix -A (flange)
- ANSI Class 150 2 RF
- Suffix -040 (length)
- 0.4 m
- Sample gas pressure
- -5 to +250 kPa
- Suffix -T (gas thread)
- 1/4NPT (Female)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA ZR22G-040-S-A-E-T-T-E-A Zirconia Oxygen Analyzer Detector |
|---|---|
| Brand | YOKOGAWA |
| Model | ZR22G-040-S-A-E-T-T-E-A |
| Category | Test & Measurement |
| Suffix -A | Always -A |
| Suffix -A (flange) | ANSI Class 150 2 RF |
| Suffix -040 (length) | 0.4 m |
| Sample gas pressure | -5 to +250 kPa |
| Suffix -T (gas thread) | 1/4NPT (Female) |
| Sample gas temperature | 0 to 700 °C (probe only) |
| Suffix -E (reference gas) | External connection (Instrument air) |
| Suffix -S (wetted material) | Stainless steel |
| Suffix -E (instruction manual) | English |
| Suffix -T (connection box thread) | 1/2 NPT |
