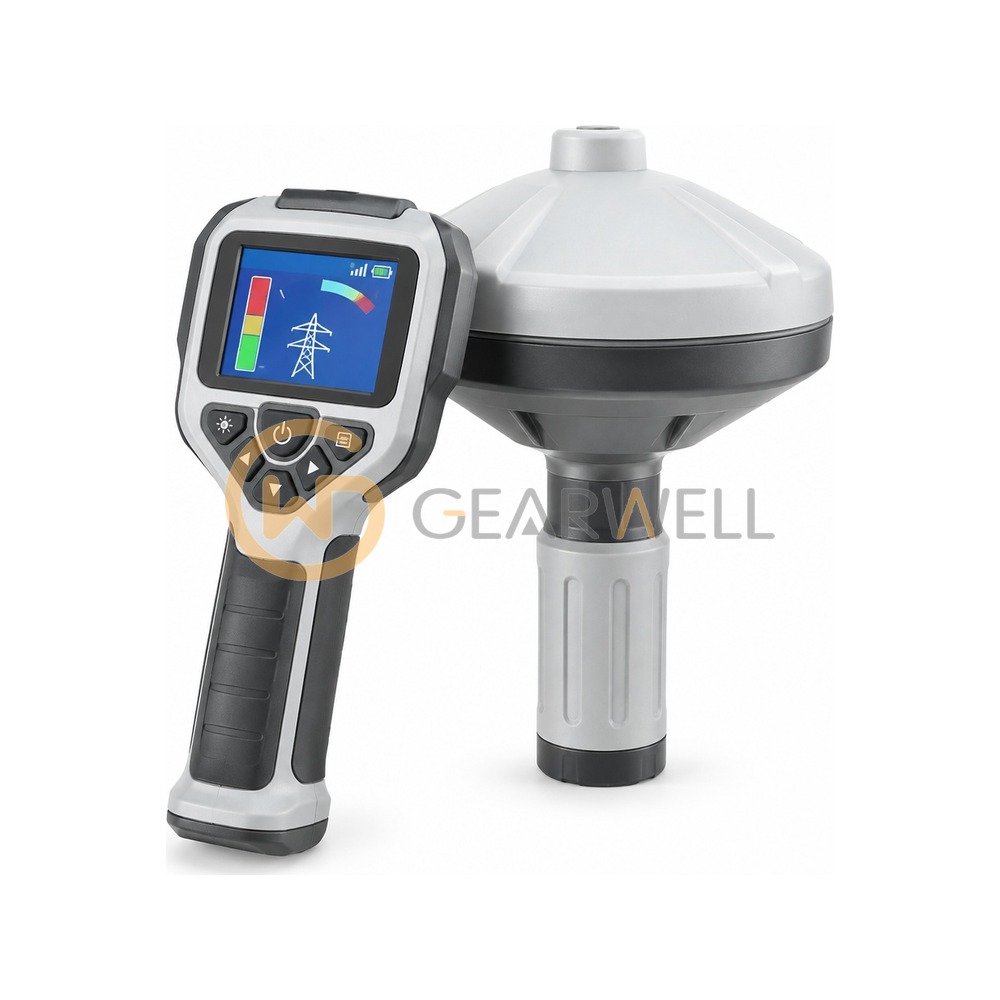

VICTOR 7600 Wireless High Voltage Detector
- Brand
- VICTOR
- Model
- 7600
- GEARWELL SKU
- GWP-000035059
- Category
- Test & Measurement
Key specifications
- Power
- collector DC 3.7 V Li battery; receiver DC 8.4 V Li battery
- Display
- 3.5-inch true-colour LCD
- Evidence
- VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403)
- Data storage
- 8000 records
- Detection range
- 0...500 kV (400 V / 10 / 35 / 110 / 220 / 500 kV)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VICTOR 7600 Wireless High Voltage Detector |
|---|---|
| Brand | VICTOR |
| Model | 7600 |
| Category | Test & Measurement |
| Power | collector DC 3.7 V Li battery; receiver DC 8.4 V Li battery |
| Display | 3.5-inch true-colour LCD |
| Evidence | VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403) |
| Data storage | 8000 records |
| Detection range | 0...500 kV (400 V / 10 / 35 / 110 / 220 / 500 kV) |
| Frequency range | 45.0...55.0 Hz |
| Insulating pole | approx. 3 m extended / 0.7 m retracted |
| Code as collected | VICTOR 7600 |
| Wireless transmission | 433 MHz, approx. 100 m line of sight |
| Contact voltage measurement | 0...110 kV |
