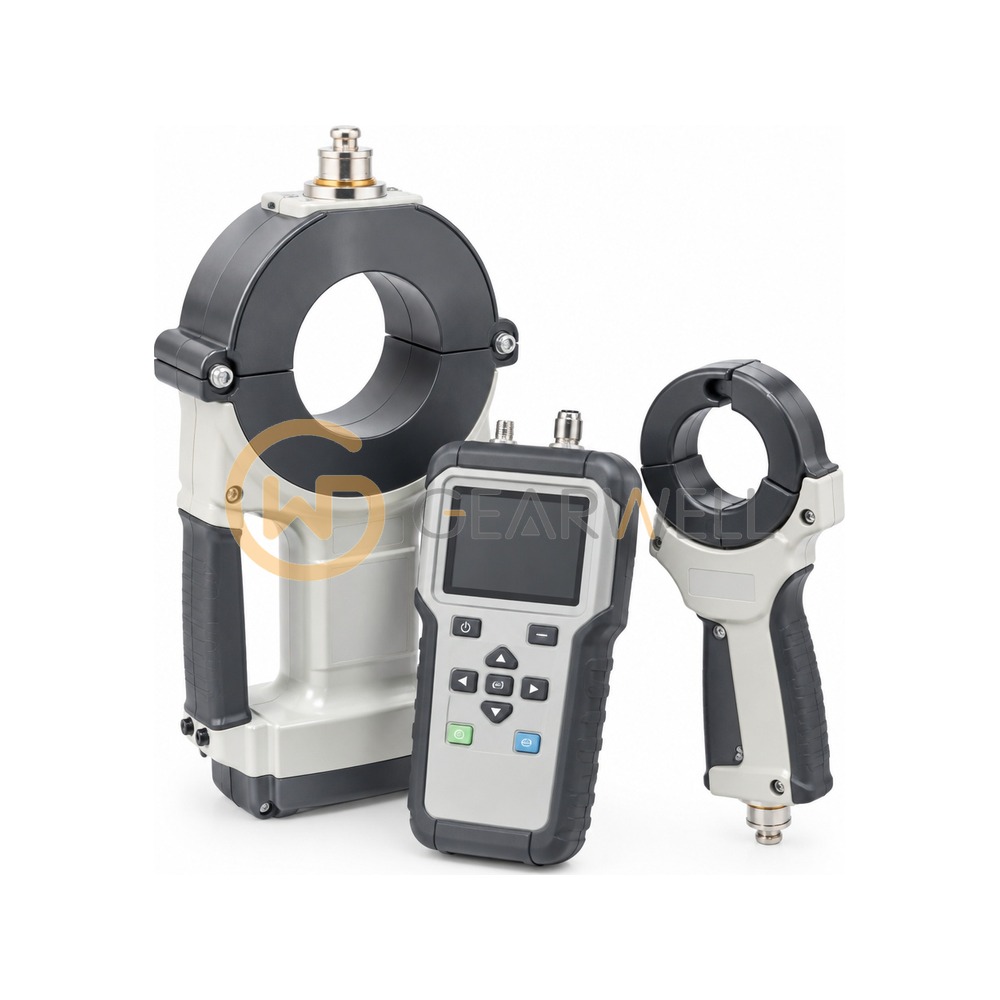

VICTOR 9100C Wireless High-Voltage CT Ratio Tester
- Brand
- VICTOR
- Model
- 9100C
- GEARWELL SKU
- GWP-000035062
- Category
- Test & Measurement
Key specifications
- Evidence
- VICTOR 9100C operating manual (maker's original document, hosted at datasheet.lcsc.com)
- Function
- Primary/secondary current, ratio, phase and polarity test of CTs and transformers below 35 kV
- Data storage
- 3000 records
- Power supply
- DC 6 V, 4 x LR03 (AAA) alkaline
- Insulating pole
- ø32 mm, 5 x 1 m sections, 110 kV
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VICTOR 9100C Wireless High-Voltage CT Ratio Tester |
|---|---|
| Brand | VICTOR |
| Model | 9100C |
| Category | Test & Measurement |
| Evidence | VICTOR 9100C operating manual (maker's original document, hosted at datasheet.lcsc.com) |
| Function | Primary/secondary current, ratio, phase and polarity test of CTs and transformers below 35 kV |
| Data storage | 3000 records |
| Power supply | DC 6 V, 4 x LR03 (AAA) alkaline |
| Insulating pole | ø32 mm, 5 x 1 m sections, 110 kV |
| Code as collected | VICTOR 9100C |
| Primary clamp jaw | ø48 mm |
| Primary current range | 0.0 A to 800 A, resolution 0.1 A, ±0.5 %FS |
| Ratio measuring range | 1 to 500 (resolution 0.1) |
| Secondary current range | 0.00 mA to 5 A, resolution 0.01 mA, ±0.5 %FS |
| Wireless transmission distance | 100 m |
