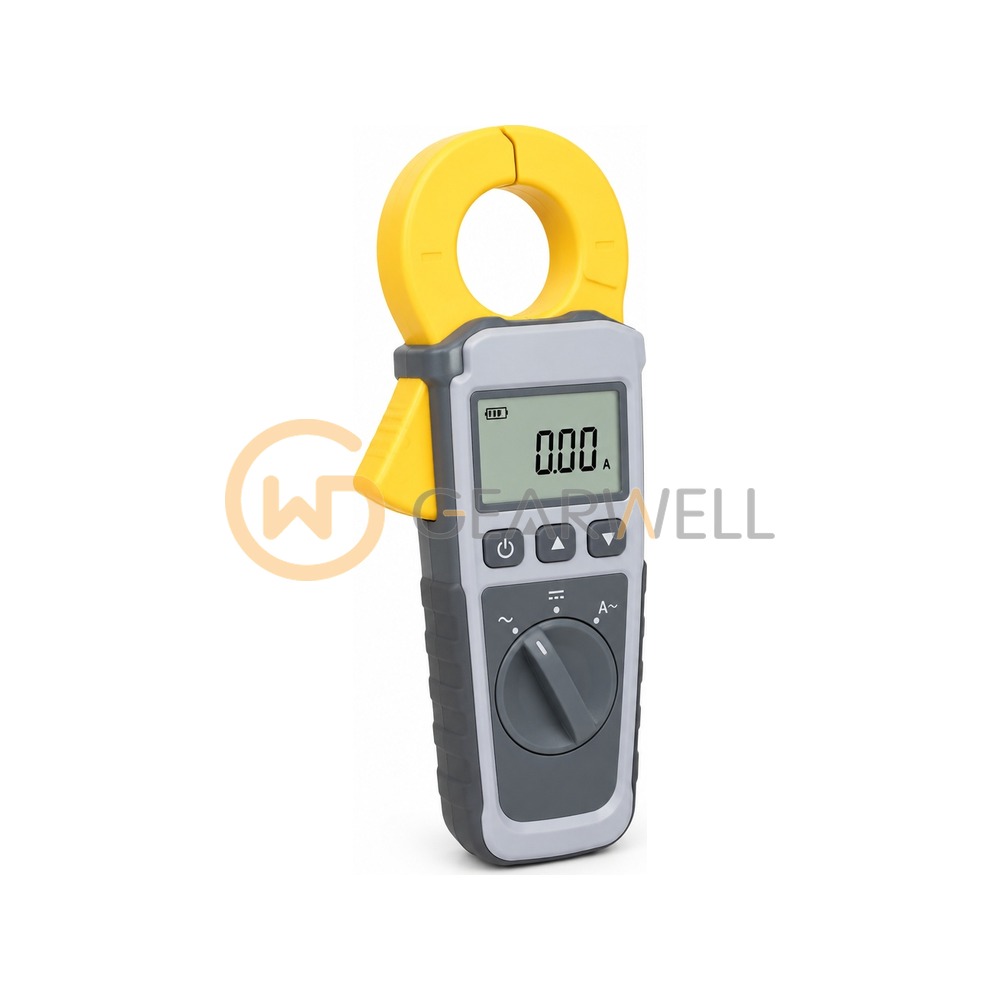

VICTOR 7300M Energy Meter Field Tester Clamp Power Meter
- Brand
- VICTOR
- Model
- 7300M
- GEARWELL SKU
- GWP-000035058
- Category
- Test & Measurement
Key specifications
- Evidence
- VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403)
- Jaw size
- Φ7.5 x 13 mm
- Harmonics
- 1...50
- Phase range
- 0...360°
- Power supply
- 6LR61 9 V DC, approx. 7 h
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VICTOR 7300M Energy Meter Field Tester Clamp Power Meter |
|---|---|
| Brand | VICTOR |
| Model | 7300M |
| Category | Test & Measurement |
| Evidence | VICTOR (深圳市驿生胜利科技 / Double King Industrial Holdings) original user manual (hosted at datasheet.lcsc.com; china-victor.com returned 403) |
| Jaw size | Φ7.5 x 13 mm |
| Harmonics | 1...50 |
| Phase range | 0...360° |
| Power supply | 6LR61 9 V DC, approx. 7 h |
| Current range | AC 0.0 mA...30.0 A (40...70 Hz) |
| Voltage range | AC 0.1...600 V (40...70 Hz) |
| Measuring method | Clamp CT, true RMS |
| Code as collected | VICTOR 7300M |
| Active power range | 0.00 W...18.0 kW |
| Distributor listing | LCSC C7463884 |
