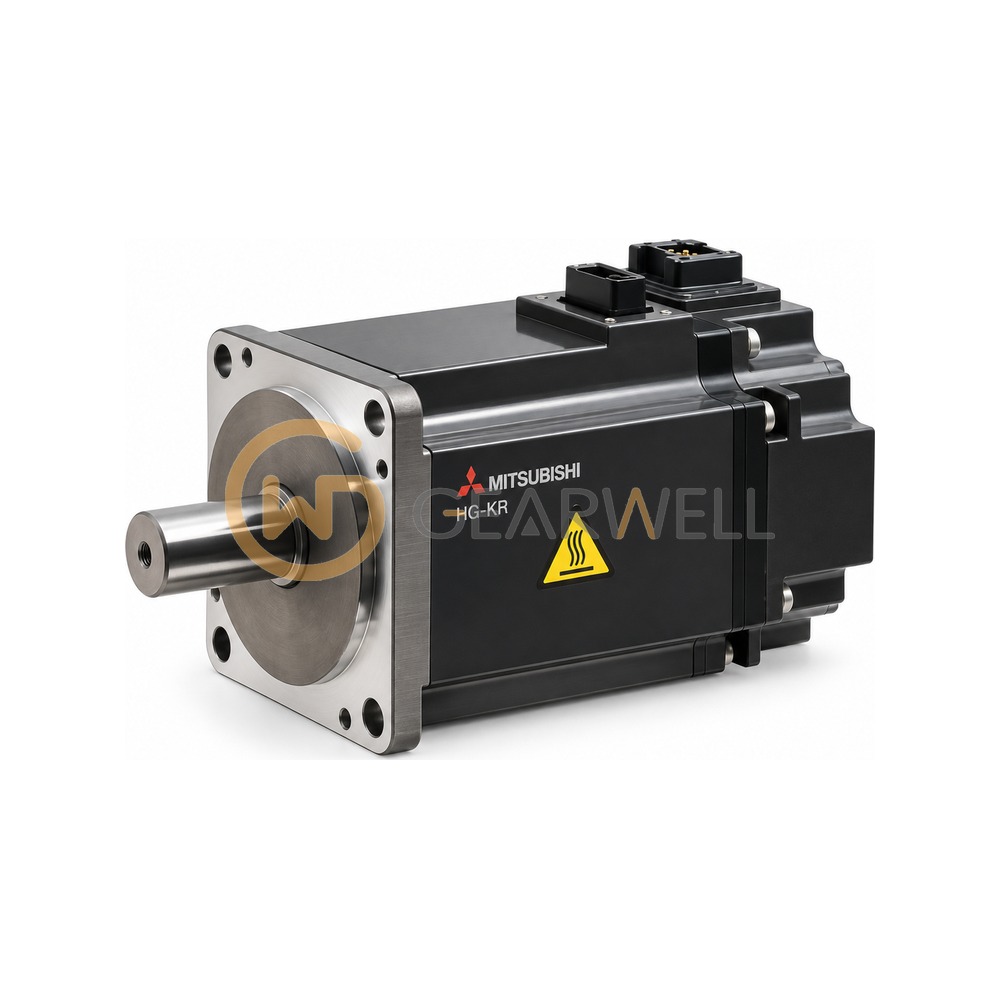

Mitsubishi Electric HG-KR43 AC servo motor, low inertia small capacity
- Brand
- Mitsubishi Electric
- Model
- HG-KR43
- GEARWELL SKU
- GWP-000013487
- Category
- Servo Systems
Key specifications
- Mass
- 1.4 kg
- Encoder
- 22-bit (4194304 pulses/rev)
- Rated output
- 0.4 kW
- Rated torque
- 1.3 N·m
- Maximum torque
- 4.5 N·m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric HG-KR43 is a low-inertia, small-capacity AC servo motor of the HG-KR series. It delivers 0.4 kW rated output with 1.3 N·m rated torque and 4.5 N·m maximum torque, at a rated speed of 3000 r/min and a maximum of 6000 r/min. Rated current is 2.6 A and maximum current is 9.1 A, with a rotor moment of inertia of 0.371 x 10-4 kg·m2. Feedback comes from a 22-bit encoder shared by absolute and incremental systems with 4194304 pulses/rev, and the totally-enclosed, natural-cooling frame is rated IP65 with insulation class 130 (B) for 0 °C to 40 °C ambient operation. The shaft accepts 245 N radial and 98 N thrust load at L = 30 mm, and the motor weighs 1.4 kg.
Technical reference
| Product name | Mitsubishi Electric HG-KR43 AC servo motor, low inertia small capacity |
|---|---|
| Brand | Mitsubishi Electric |
| Model | HG-KR43 |
| Category | Servo Systems |
| Mass | 1.4 kg |
| Encoder | 22-bit (4194304 pulses/rev) |
| Rated output | 0.4 kW |
| Rated torque | 1.3 N·m |
| Maximum torque | 4.5 N·m |
| Moment of inertia | 0.371 kg·cm² |
| Electromagnetic brake | No |
| Rated speed / maximum speed | 3000 / 6000 r/min |
