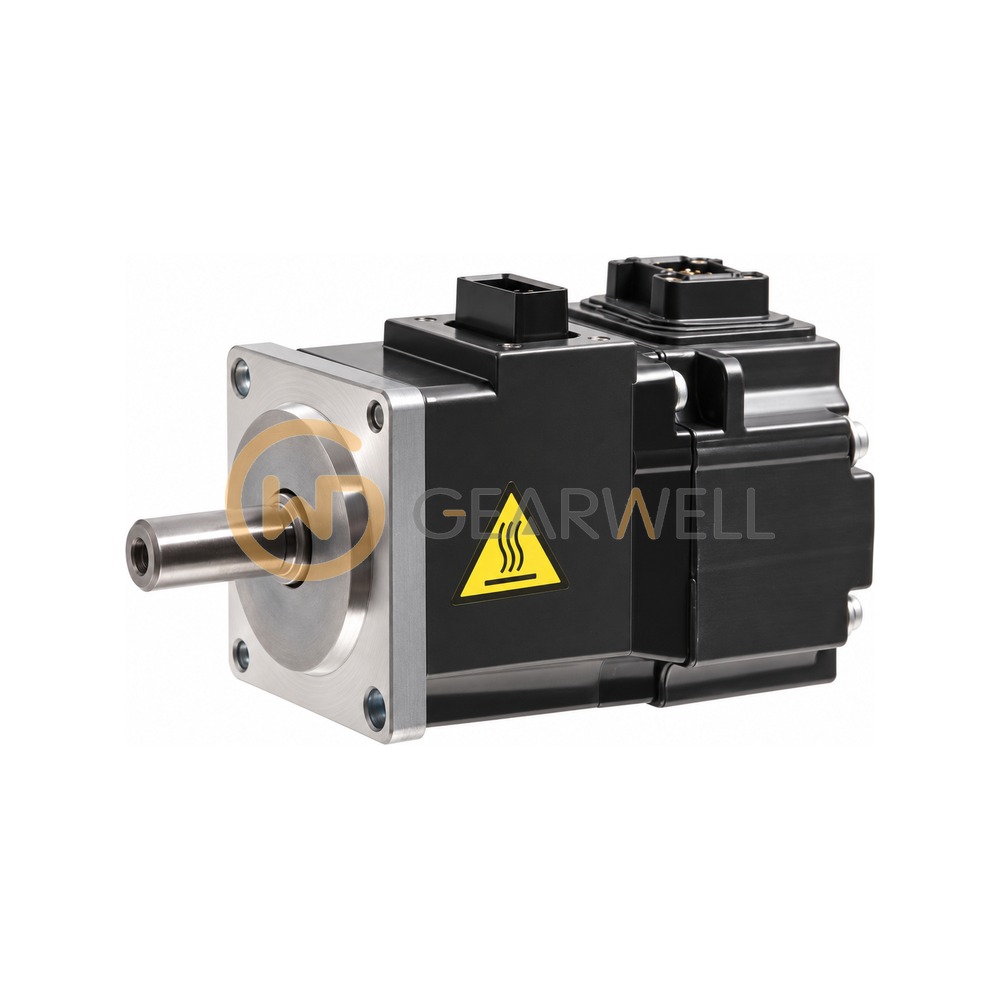

Mitsubishi Electric HG-KR13 AC servo motor, low inertia small capacity
- Brand
- Mitsubishi Electric
- Model
- HG-KR13
- GEARWELL SKU
- GWP-000013484
- Category
- Servo Systems
Key specifications
- Mass
- 0.54 kg
- Encoder
- 22-bit (4194304 pulses/rev)
- Rated output
- 0.1 kW
- Rated torque
- 0.32 N·m
- Maximum torque
- 1.1 N·m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric HG-KR13 is a low-inertia, small-capacity AC servo motor of the HG-KR series. It delivers 0.1 kW rated output with 0.32 N·m rated torque and 1.1 N·m maximum torque, at a rated speed of 3000 r/min and a maximum of 6000 r/min. Rated current is 0.8 A and maximum current is 2.5 A, with a rotor moment of inertia of 0.0777 x 10-4 kg·m2. Feedback comes from a 22-bit encoder shared by absolute and incremental systems with 4194304 pulses/rev, and the totally-enclosed, natural-cooling frame is rated IP65 with insulation class 130 (B) for 0 °C to 40 °C ambient operation. The shaft accepts 88 N radial and 59 N thrust load at L = 25 mm, and the motor weighs 0.54 kg.
Technical reference
| Product name | Mitsubishi Electric HG-KR13 AC servo motor, low inertia small capacity |
|---|---|
| Brand | Mitsubishi Electric |
| Model | HG-KR13 |
| Category | Servo Systems |
| Mass | 0.54 kg |
| Encoder | 22-bit (4194304 pulses/rev) |
| Rated output | 0.1 kW |
| Rated torque | 0.32 N·m |
| Maximum torque | 1.1 N·m |
| Moment of inertia | 0.0777 kg·cm² |
| Electromagnetic brake | No |
| Rated speed / maximum speed | 3000 / 6000 r/min |
