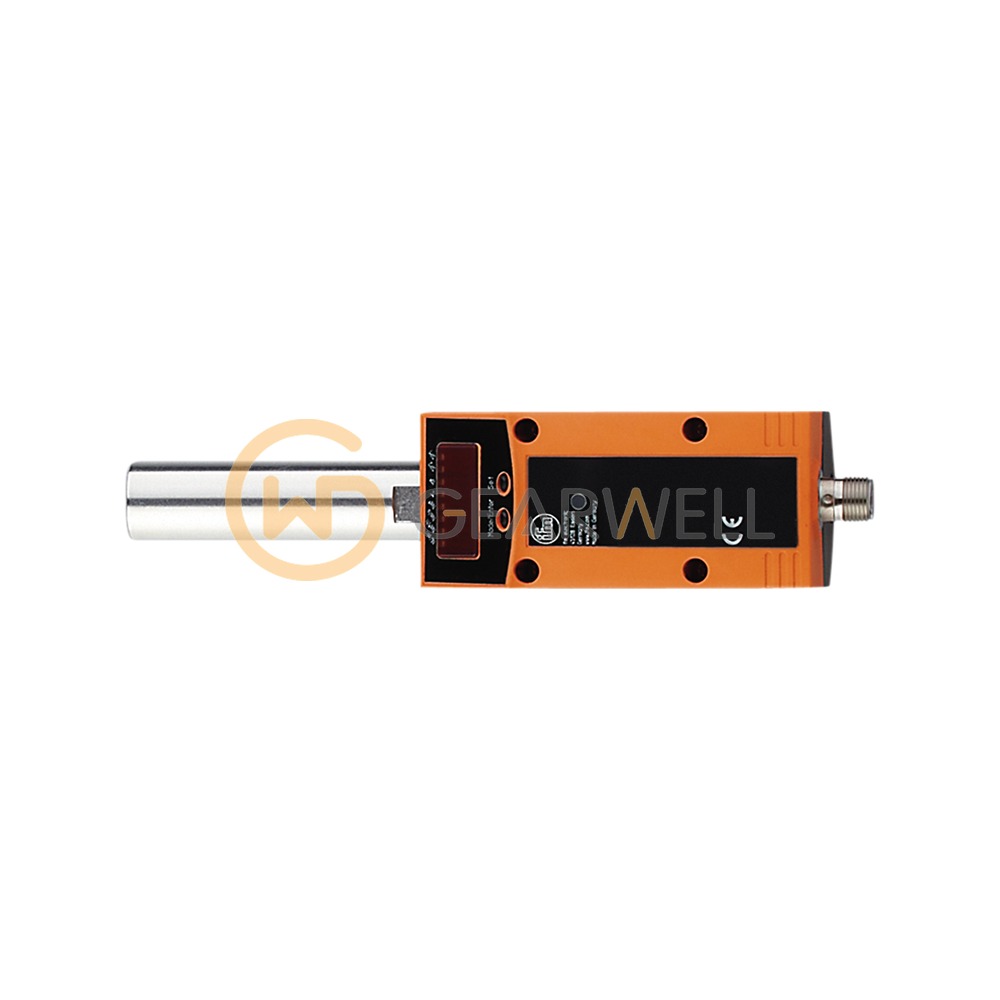

IFM SD5000 SDR14DGXFPKG/US-100 Compressed Air Meter

Product overview

The ifm SD5000 (SDR14DGXFPKG/US-100) is a compressed air meter measuring 1…250 l/min (0.3…82.9 m/s and 0.04…15 m³/h) and medium temperature over 0…60 °C, with a consumed-quantity pulse output; values refer to standard volume flow to DIN ISO 2533. ifm gives an accuracy of ±(3 % of the measured value + 0.3 % of the final value) for air quality class 141 and ±(6 % + 0.6 %) for class 344, a repeatability of ±1.5 % of the measured value and a response time of 0.1 s. The process connection is a G 1/4 internal thread DN8, the pressure rating is 16 bar and the medium temperature range is 0…60 °C. It has two PNP switching outputs configurable as normally open or normally closed (250 mA each), a scalable 4…20 mA analog output, a pulse output and IO-Link, runs on 18…30 V DC, connects through an M12 connector (A-coded, 4 contacts), measures 182.3 x 45 x 74.5 mm and is rated IP65 for 0…60 °C ambient.
