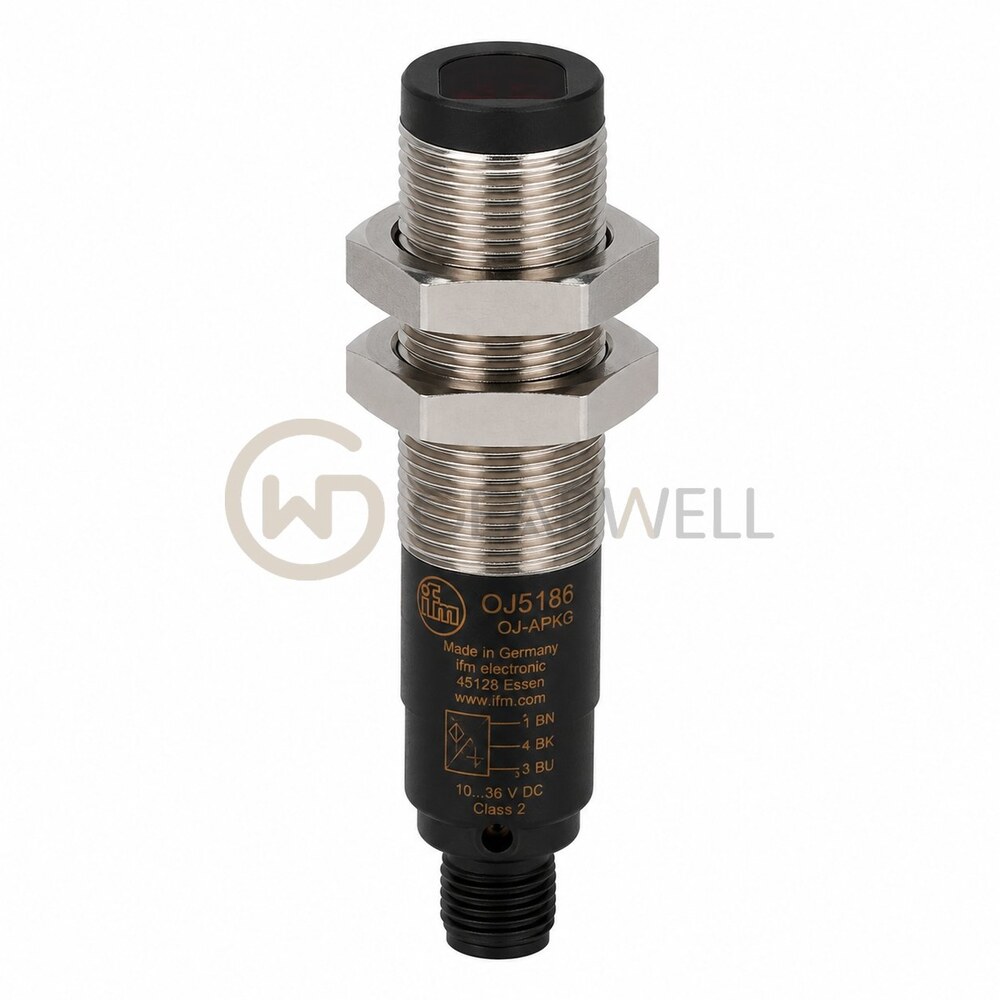

IFM OJ5186 Retro-Reflective Sensor for The Detection of Transparent Objects
- Brand
- IFM
- Model
- OJ5186
- GEARWELL SKU
- GWP-000003208
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- 35 x 11 x 24 mm
- Protection
- IP 67
- Product type
- Retro-reflective sensor for the detection of transparent objects
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OJ5186 (OJPGFPKG/SO/AS) is a retro-reflective sensor for the detection of transparent objects in a rectangular housing measuring 35 x 11 x 24 mm. ifm specifies a range of 0.2…1.5 m with prismatic reflector 50 x 50 mm E20722. It works with red light (660 nm) and has a polarization filter. The light spot is at most 64 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 2000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 4 contacts). It has an ABS housing and a glass front lens and is rated IP67 for 0…60 °C ambient.
Technical reference
| Product name | IFM OJ5186 Retro-Reflective Sensor for The Detection of Transparent Objects |
|---|---|
| Brand | IFM |
| Model | OJ5186 |
| Category | Industrial Automation Parts |
| Dimensions | 35 x 11 x 24 mm |
| Protection | IP 67 |
| Product type | Retro-reflective sensor for the detection of transparent objects |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC |
| Ambient temperature | 0...60 °C |
| Current consumption | < 22 mA |
