IFM OJ5154 Laser Diffuse Reflection Sensor
- Brand
- IFM
- Model
- OJ5154
- GEARWELL SKU
- GWP-000000974
- Category
- Proximity & Photoelectric Sensors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

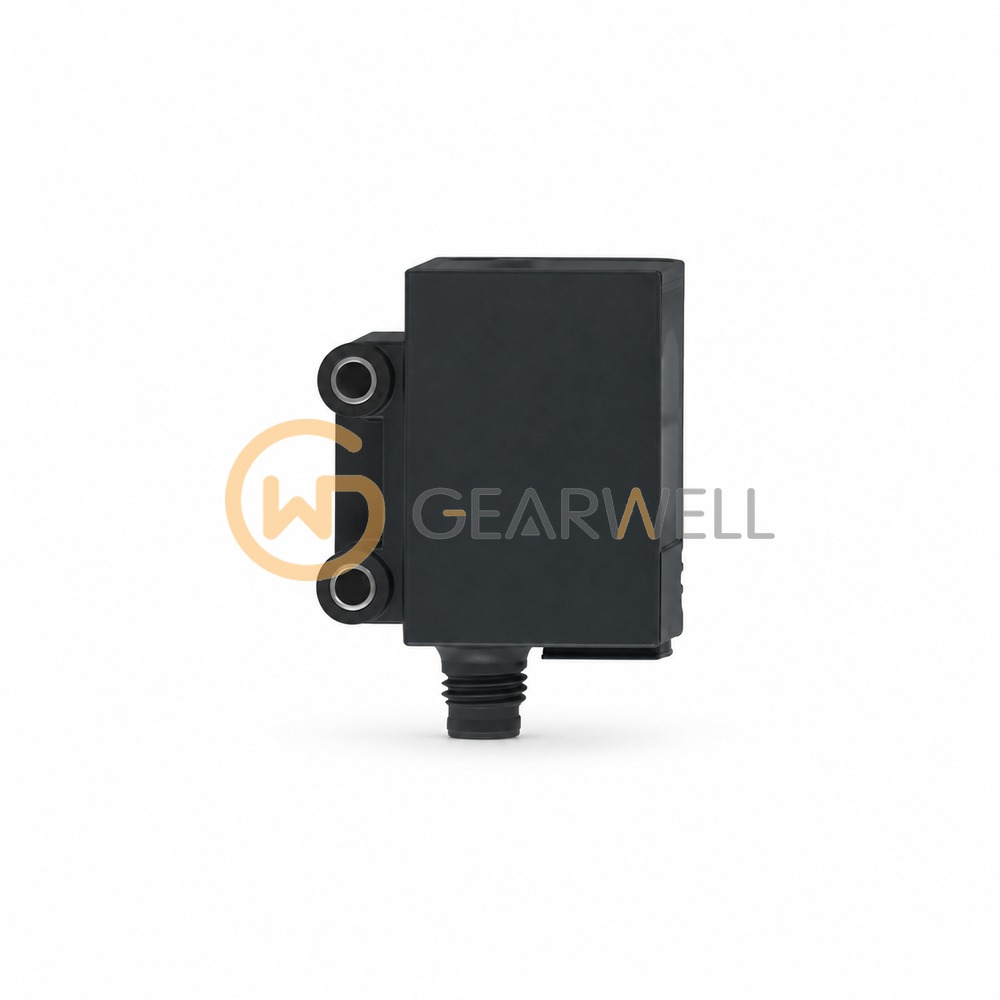

The ifm OJ5154 (OJHLFPKG/SO/AS) is a laser diffuse reflection sensor in a rectangular housing measuring 35 x 11 x 24 mm. ifm specifies a range of 15…200 mm on white paper 200 x 200 mm with 90 % remission. It works with red light (650 nm), is laser protection class 1 and has background suppression. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 4 contacts). It has an ABS housing and a PMMA front lens and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OJ5154 Laser Diffuse Reflection Sensor |
|---|---|
| Brand | IFM |
| Model | OJ5154 |
| Category | Proximity & Photoelectric Sensors |
