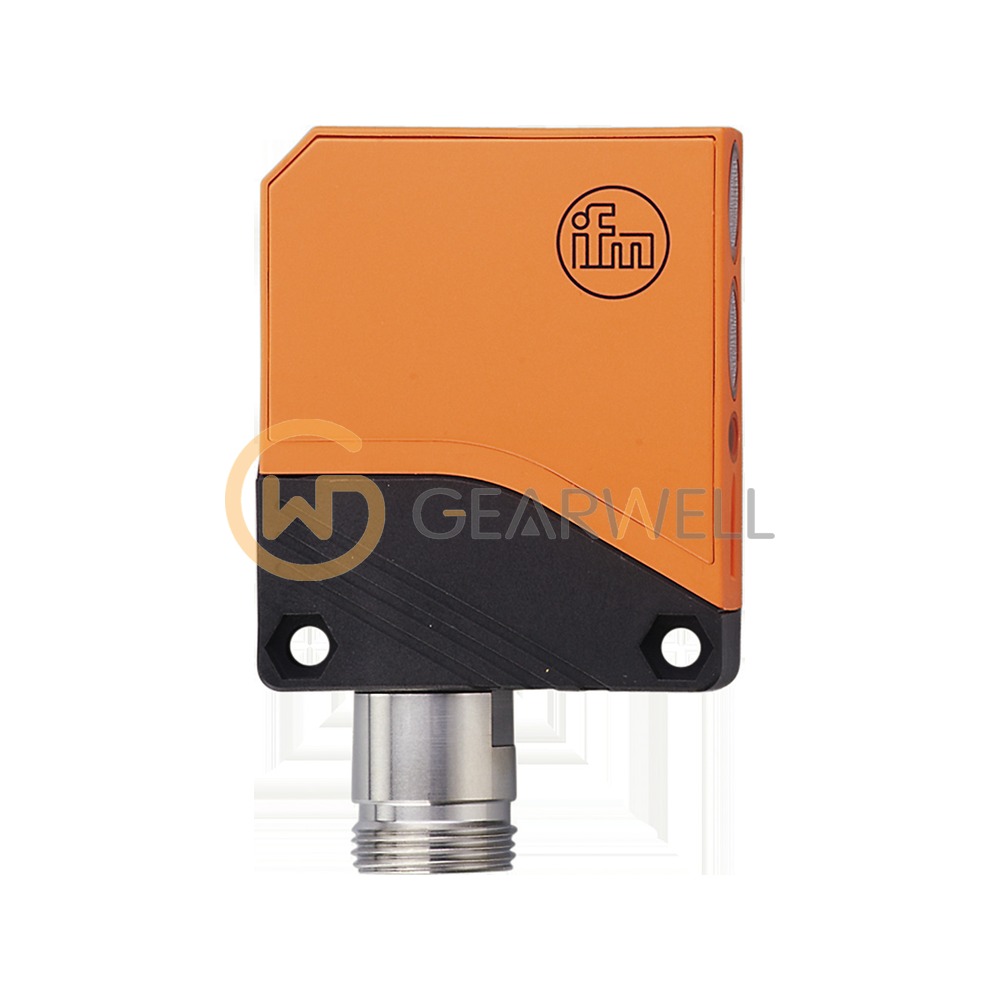

IFM OL0010 photoelectric sensors OL Retro-reflective sensor
- Brand
- IFM
- Model
- OL0010
- GEARWELL SKU
- GWP-000012126
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- rectangular
- Protection
- IP 67
- Type of light
- red light
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- Relay
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OL0010 (OLP-FKOA/SL/LS-500) is a retro-reflective sensor in a rectangular housing measuring 75 x 27 x 62 mm. ifm specifies a range of 0.3…5 m with prismatic reflector Ø 80 E20005. It works with red light (660 nm) and has a polarization filter. It has a relay output. The relay output is programmable for light-on or dark-on mode, switches at up to 10 Hz and has a contact rating of 250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W. It runs on 20…250 V AC/DC and connects through a 7/8" connector (A-coded, 5 contacts). It has a PMMA front lens and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM OL0010 photoelectric sensors OL Retro-reflective sensor |
|---|---|
| Brand | IFM |
| Model | OL0010 |
| Category | Proximity & Photoelectric Sensors |
| Housing | rectangular |
| Protection | IP 67 |
| Type of light | red light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | Relay |
| Operating voltage | 20...250 AC/DC V |
| Ambient temperature | -25...80 °C |
| Range referred to prismatic reflector | 0.3...5; (Prismatic reflector Ø 80 E20005) m |
