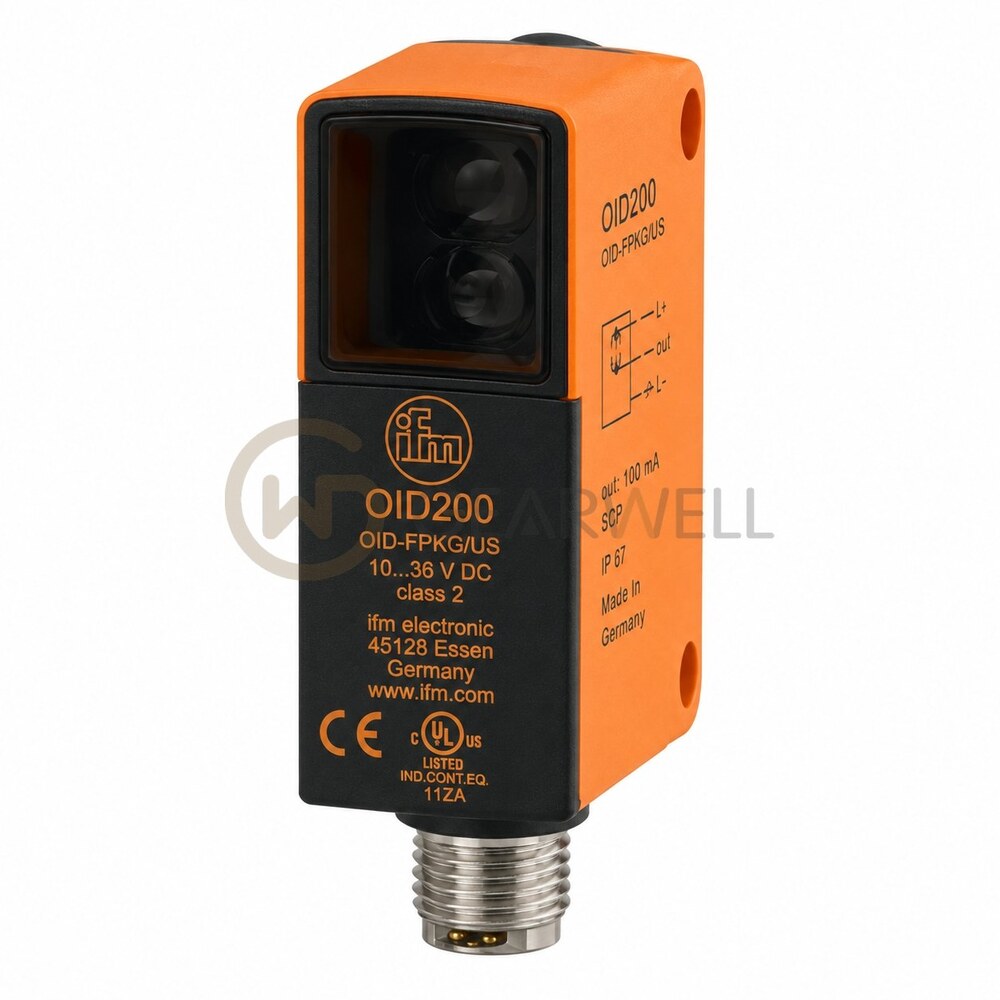

IFM OID200 Photoelectric Laser Distance Sensor
- Brand
- IFM
- Model
- OID200
- GEARWELL SKU
- GWP-000002190
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- M30 × 90 mm
- Laser protection class
- Class 2
- Output type
- Complementary PNP
- Product type
- Photoelectric laser distance sensor
- Measurement range
- 30–2000 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OID200 (OIDLCPKG/US) is a laser distance sensor in an M30 x 1.5 threaded housing 100 mm long. ifm specifies a measuring range of 0.03…2 m. It works with red light (650 nm), is laser protection class 2 and has background suppression. The light spot is at most 5 mm in diameter at 2 m. It has 2 PNP switching outputs and IO-Link. The switching outputs are complementary (normally open and normally closed), switch at up to 11 Hz and carry up to 100 mA each. It runs on 10…30 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a stainless steel housing and is rated IP65 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OID200 Photoelectric Laser Distance Sensor |
|---|---|
| Brand | IFM |
| Model | OID200 |
| Category | Industrial Automation Parts |
| Dimensions | M30 × 90 mm |
| Laser protection class | Class 2 |
| Output type | Complementary PNP |
| Product type | Photoelectric laser distance sensor |
| Measurement range | 30–2000 mm |
| Operating voltage | 10–30 V DC |
| Protection rating | IP65 / IP67 |
| Switching frequency | 11 Hz |
