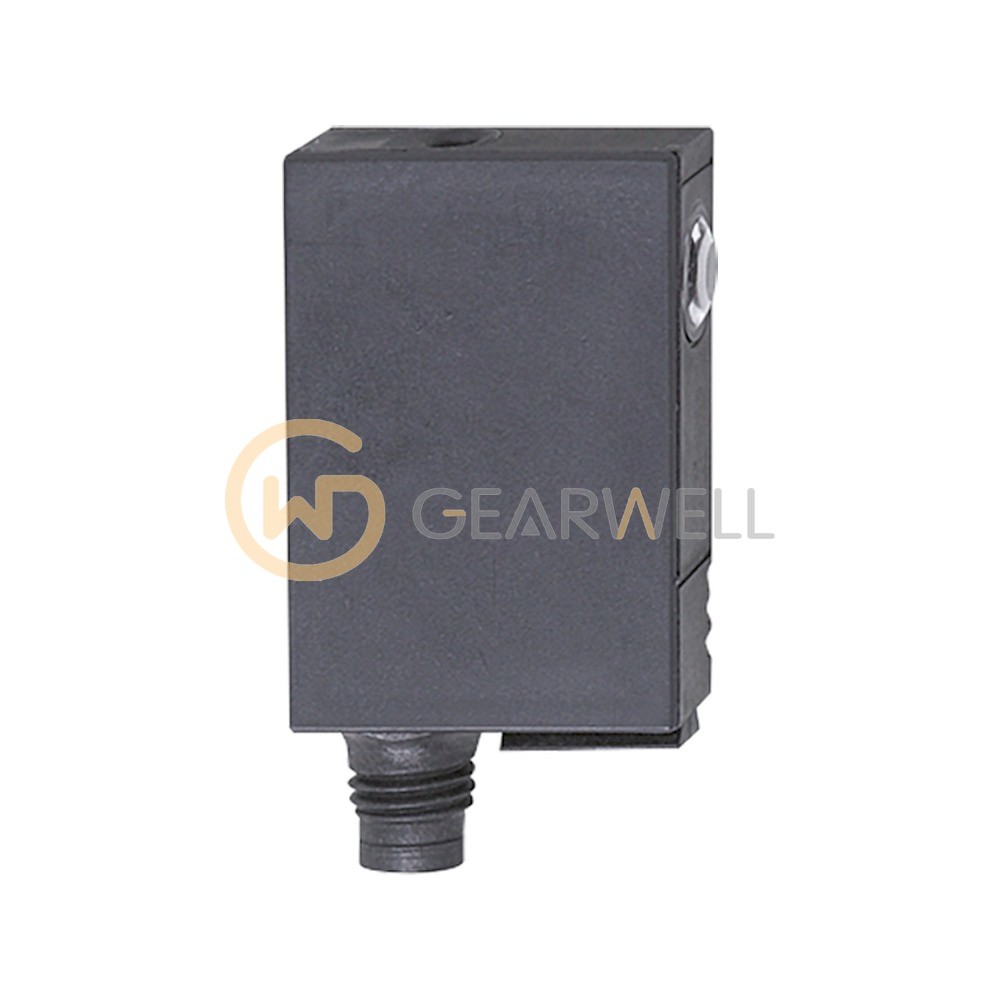

IFM OJ5036 OJPLFPKG/SO/AS Retro-reflective Laser Sensor
- Brand
- IFM
- Model
- OJ5036
- GEARWELL SKU
- GWP-000009374
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 35 x 11 x 24 mm
- Protection
- IP 67
- Output function
- light-on/dark-on mode (programmable)
- Electrical design
- PNP
- Operating voltage
- 10...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OJ5036 (OJPLFPKG/SO/AS) is a retro-reflective laser sensor in a rectangular housing measuring 35 x 11 x 24 mm. ifm specifies a range of 8 m with prismatic reflector 50 x 50 mm E20722. It works with red light (650 nm), is laser protection class 1 and has a polarization filter. The light spot is at most 12 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 2000 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 4 contacts). It has an ABS housing and a glass front lens and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OJ5036 OJPLFPKG/SO/AS Retro-reflective Laser Sensor |
|---|---|
| Brand | IFM |
| Model | OJ5036 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 35 x 11 x 24 mm |
| Protection | IP 67 |
| Output function | light-on/dark-on mode (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -10...60 °C |
| Current consumption | < 15 mA |
| Switching frequency DC | 2000 Hz |
