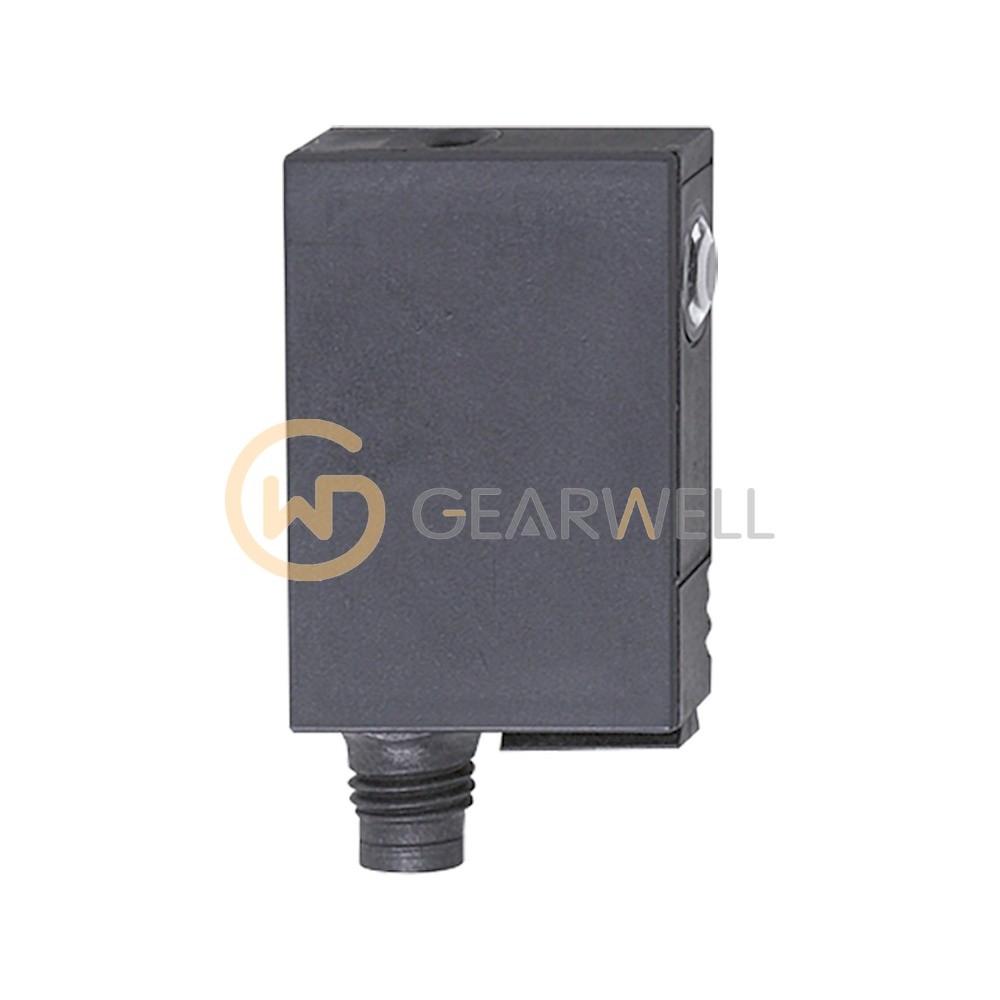

IFM OJ5038 OJSLOOKG/SO/AS Through-beam Laser Sensor Transmitter
- Brand
- IFM
- Model
- OJ5038
- GEARWELL SKU
- GWP-000009375
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 15 m
- Housing
- rectangular
- Materials
- housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
- Dimensions
- 35 x 11 x 24 mm
- Protection
- IP 67
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OJ5038 (OJSLOOKG/SO/AS) is a through-beam laser sensor transmitter in a rectangular housing measuring 35 x 11 x 24 mm. ifm specifies a range of up to 15 m. It works with red light (650 nm) and is laser protection class 1. The light spot is at most 24 mm in diameter at maximum range. As the transmitter of a through-beam pair it has no switching output; it runs on 10…30 V DC and connects through an M8 connector (A-coded, 4 contacts). It has an ABS housing and a glass front lens and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OJ5038 OJSLOOKG/SO/AS Through-beam Laser Sensor Transmitter |
|---|---|
| Brand | IFM |
| Model | OJ5038 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 15 m |
| Housing | rectangular |
| Materials | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS |
| Dimensions | 35 x 11 x 24 mm |
| Protection | IP 67 |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -10...60 °C |
| Current consumption | < 12 mA |
