IFM OGS200 OGS-OOKG/US100 Through-beam Sensor Transmitter
- Brand
- IFM
- Model
- OGS200
- GEARWELL SKU
- GWP-000008415
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 20 m
- Housing
- threaded type
- Materials
- housing: stainless steel (316L/1.4404)
- Dimensions
- M18 x 1 / L = 60 mm
- Protection
- IP 67
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

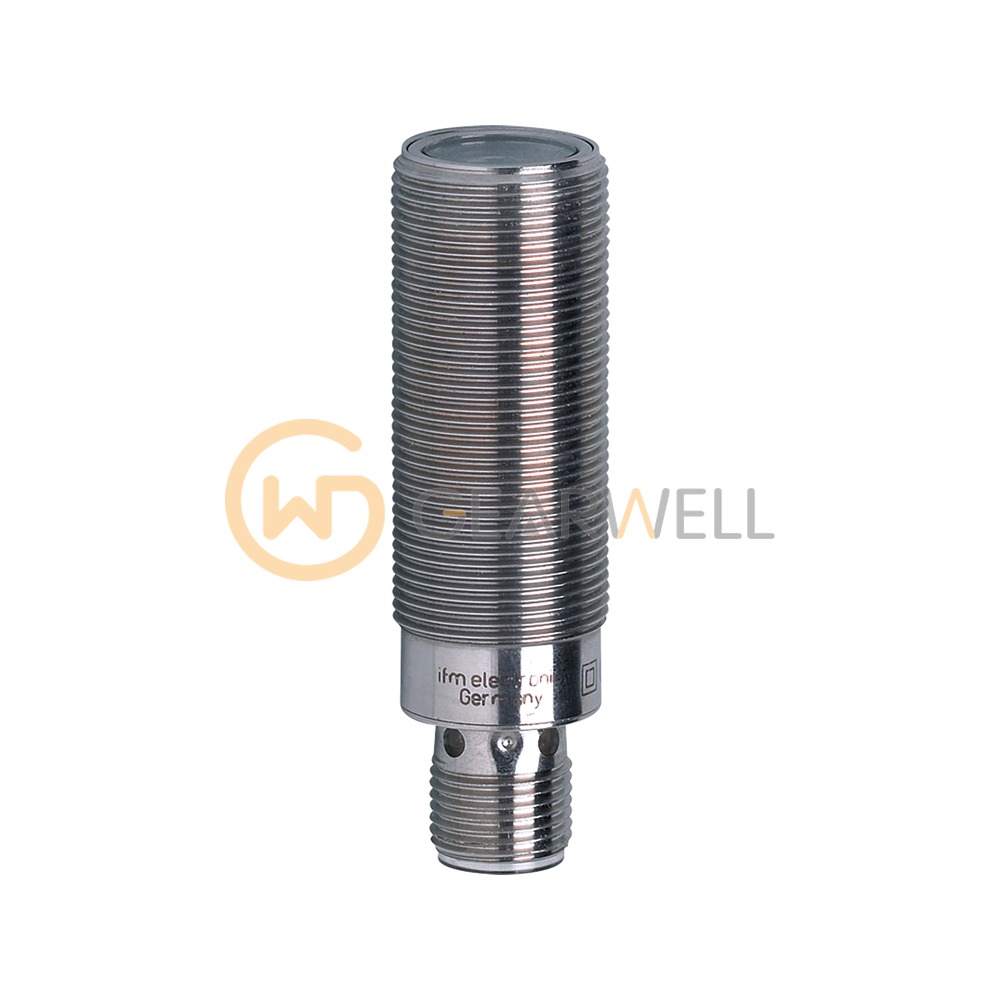

The ifm OGS200 (OGS-OOKG/US100) is a through-beam sensor transmitter in an M18 x 1 threaded housing 60 mm long. ifm specifies a range of up to 20 m. It works with red light (624 nm). The light spot is at most 800 mm in diameter at maximum range. As the transmitter of a through-beam pair it has no switching output; it runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a stainless steel (1.4404 / 316L) housing and a PMMA front lens and is rated IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGS200 OGS-OOKG/US100 Through-beam Sensor Transmitter |
|---|---|
| Brand | IFM |
| Model | OGS200 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 20 m |
| Housing | threaded type |
| Materials | housing: stainless steel (316L/1.4404) |
| Dimensions | M18 x 1 / L = 60 mm |
| Protection | IP 67 |
| Operating voltage | 10...36 DC V |
| Ambient temperature | -25...60 °C |
| Current consumption | 15 mA |
