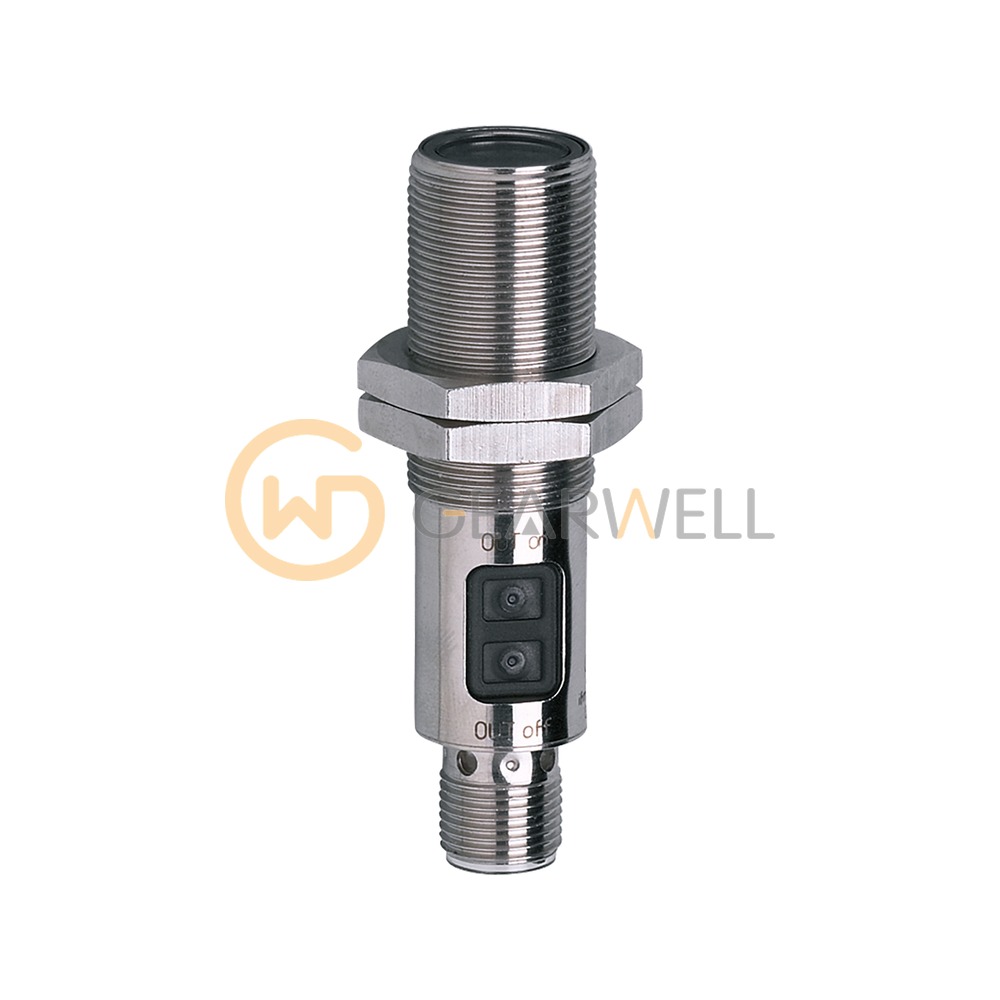

IFM OGT500 OGT-FPKG/US100 Diffuse reflection sensor
- Brand
- IFM
- Model
- OGT500
- GEARWELL SKU
- GWP-000012466
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 2...800; (white paper 200 x 200 mm 90 % remission) mm
- Housing
- Threaded type
- Type of light
- red light
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGT500 (OGT-FPKG/US100) is a diffuse reflection sensor in an M18 x 1 threaded housing 72 mm long. ifm specifies a range of 2…800 mm on white paper 200 x 200 mm with 90 % remission. The switching distance can be set within 150…800 mm. It works with red light (624 nm). The light spot is at most 66 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 2000 Hz and carries up to 150 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a PMMA front lens and is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM OGT500 OGT-FPKG/US100 Diffuse reflection sensor |
|---|---|
| Brand | IFM |
| Model | OGT500 |
| Category | Proximity & Photoelectric Sensors |
| Range | 2...800; (white paper 200 x 200 mm 90 % remission) mm |
| Housing | Threaded type |
| Type of light | red light |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 DC; (cULus - Class 2 source required) V |
| Current consumption | 25 mA |
| Switching frequency DC | 2000 Hz |
