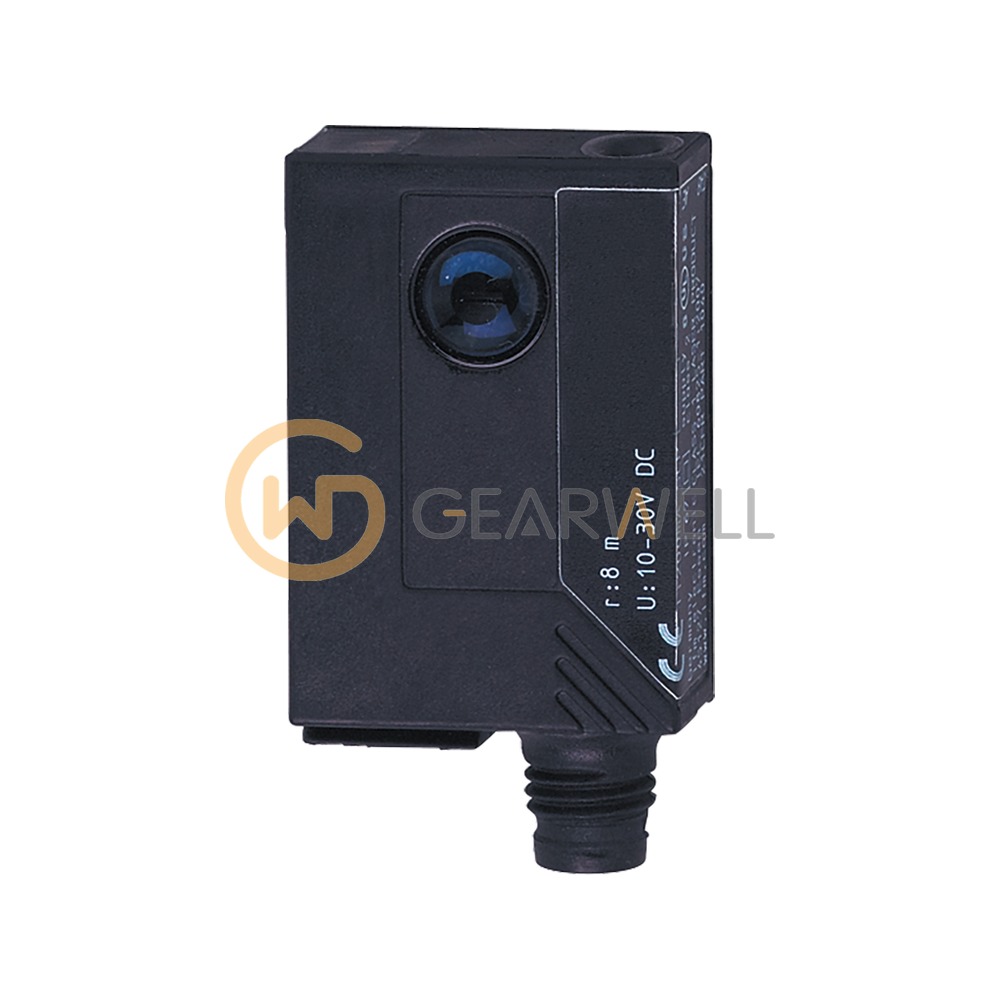

IFM OJ5020 OJELFPKG/FO/AS Through-beam Laser Sensor Receiver
- Brand
- IFM
- Model
- OJ5020
- GEARWELL SKU
- GWP-000008416
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 1 m
- Dimensions
- 35 x 24 x 11 mm
- Protection
- IP 67
- Output function
- light-on/dark-on mode (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OJ5020 (OJELFPKG/FO/AS) is a through-beam laser sensor receiver in a rectangular housing measuring 35 x 24 x 11 mm. ifm specifies a range of up to 1 m. It works with red light (650 nm). It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 1200 Hz and carries up to 200 mA. It runs on 10…30 V DC and connects through an M8 connector (A-coded, 4 contacts). It has an ABS housing and a glass front lens and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OJ5020 OJELFPKG/FO/AS Through-beam Laser Sensor Receiver |
|---|---|
| Brand | IFM |
| Model | OJ5020 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 1 m |
| Dimensions | 35 x 24 x 11 mm |
| Protection | IP 67 |
| Output function | light-on/dark-on mode (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Current consumption | < 12 mA |
| Switching frequency DC | 1200 Hz |
