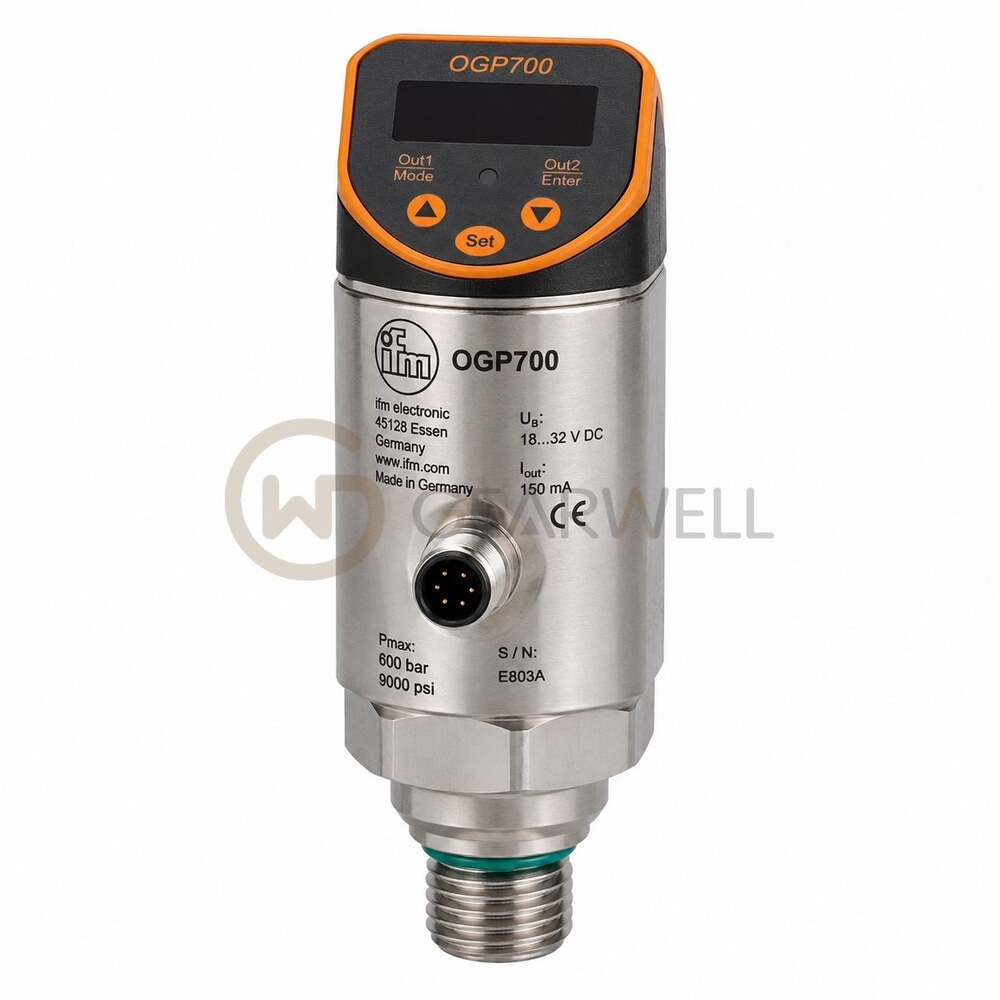

IFM OGP700 Retro-Reflective LASER Sensor
- Brand
- IFM
- Model
- OGP700
- GEARWELL SKU
- GWP-000001244
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- M18 x 1 / L = 72 mm
- Protection
- IP 65; IP 67
- Product type
- Retro-reflective LASER sensor
- Output function
- light-on/dark-on mode; (programmable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGP700 (OGPLFPKG/US100) is a retro-reflective laser sensor in an M18 x 1 threaded housing 72 mm long. ifm specifies a range of 0.2…15 m with prismatic reflector Ø 80 E20005. It works with red light (655 nm), is laser protection class 1 and has a polarization filter. The light spot is at most 78 mm in diameter at maximum range. It has 1 PNP switching output. The switching output is programmable for light-on or dark-on mode, switches at up to 2000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a stainless steel (1.4404 / 316L) housing and a PMMA front lens and is rated IP65 and IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM OGP700 Retro-Reflective LASER Sensor |
|---|---|
| Brand | IFM |
| Model | OGP700 |
| Category | Industrial Automation Parts |
| Dimensions | M18 x 1 / L = 72 mm |
| Protection | IP 65; IP 67 |
| Product type | Retro-reflective LASER sensor |
| Output function | light-on/dark-on mode; (programmable) |
| Electrical design | PNP |
| Operating voltage | 10...36 V DC |
| Ambient temperature | -10...60 °C |
| Current consumption | 15; (24 V) mA |
