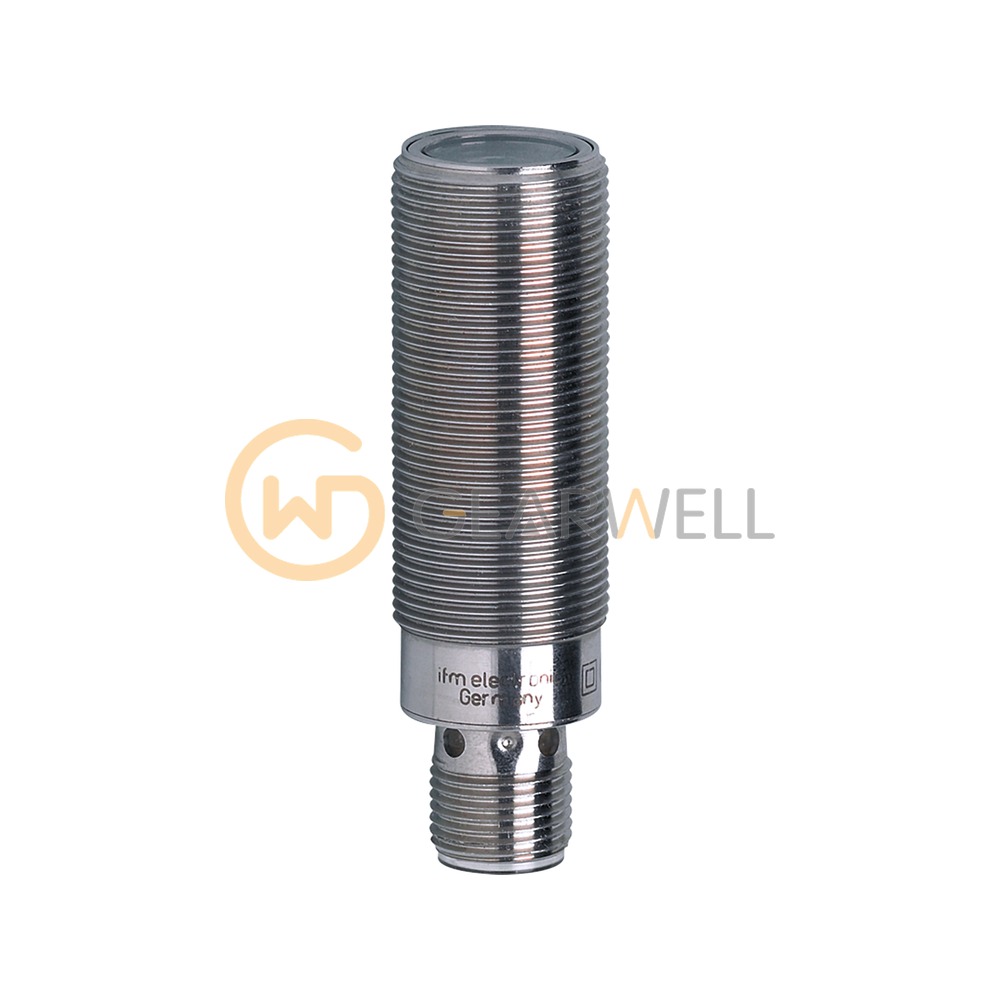

IFM OGE200 OGE-DPKG/US100 Through-beam sensor receiver
- Brand
- IFM
- Model
- OGE200
- GEARWELL SKU
- GWP-000012462
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- < 20 m
- Housing
- Threaded type
- Type of light
- red light
- Output function
- dark-on mode
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm OGE200 (OGE-DPKG/US100) is a through-beam sensor receiver in an M18 x 1 threaded housing 60 mm long. ifm specifies a range of up to 20 m. It works with red light (624 nm). It has 1 PNP switching output. The switching output works in dark-on mode, switches at up to 1000 Hz and carries up to 200 mA. It runs on 10…36 V DC and connects through an M12 connector (A-coded, 4 contacts). It has a stainless steel (1.4404 / 316L) housing and a PMMA front lens and is rated IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM OGE200 OGE-DPKG/US100 Through-beam sensor receiver |
|---|---|
| Brand | IFM |
| Model | OGE200 |
| Category | Proximity & Photoelectric Sensors |
| Range | < 20 m |
| Housing | Threaded type |
| Type of light | red light |
| Output function | dark-on mode |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | 10 mA |
| Switching frequency DC | 1000 Hz |
