IFM O1D300 O1D laser distance / level sensors Optical level sensor
- Brand
- IFM
- Model
- O1D300
- GEARWELL SKU
- GWP-000012121
- Category
- Pressure, Flow & Temperature
Key specifications
- Measuring range
- 0.2...10; (white paper 200 x 200 mm 90 % remission) m
- Output function
- normally open / closed; (programmable)
- Electrical design
- PNP
- Operating voltage
- 18...30 DC; (cULus - Class 2 source required) V
- Analog current output
- 4...20; (IEC 61131-2) mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

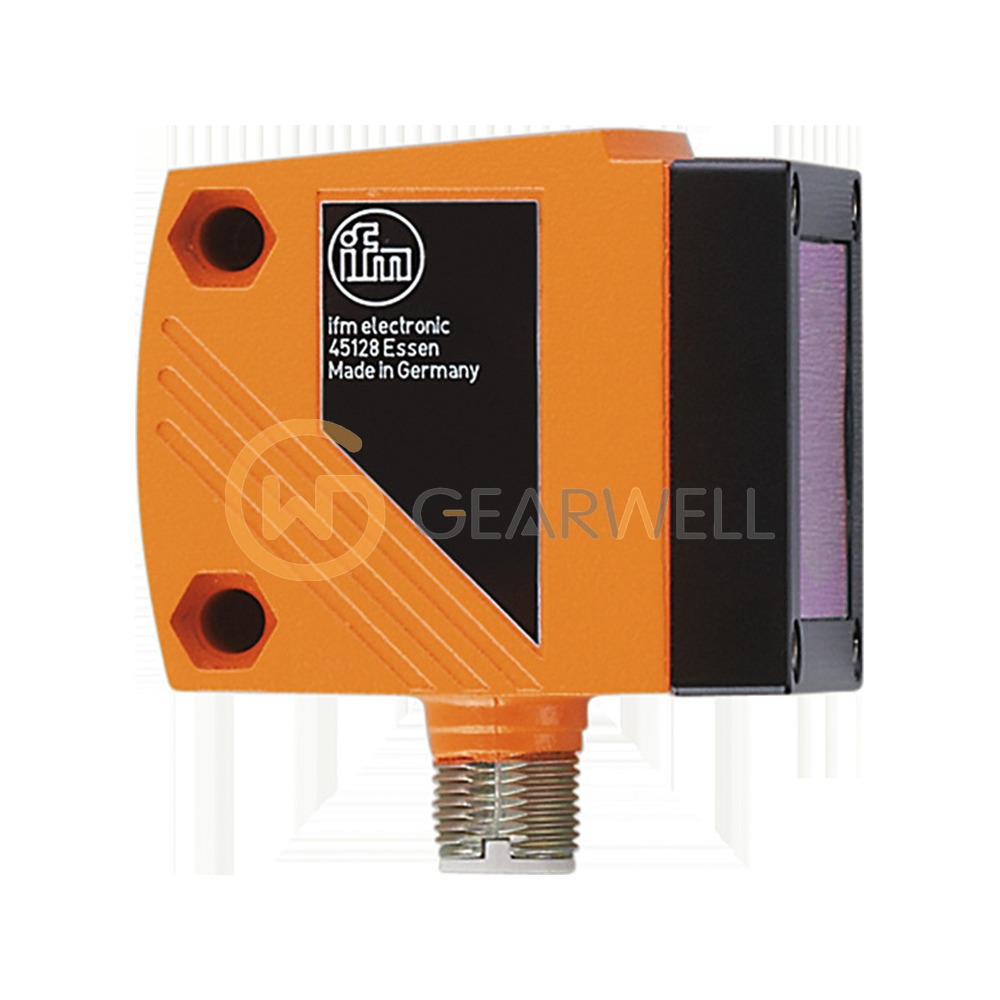

The ifm O1D300 (O1DLF3KG/IO-LINK) is an optical level sensor in a rectangular housing measuring 59 x 42 x 52 mm. ifm specifies a measuring range of 0.2…10 m on white paper 200 x 200 mm with 90 % remission. It is laser protection class 2. The light spot is at most 25 mm in diameter at 10 m. It has 2 PNP switching outputs, 1 analog output (4…20 mA or 0…10 V) and IO-Link. The switching outputs are programmable as normally open or normally closed and carry up to 200 mA each. It runs on 18…30 V DC and connects through an M12 connector (A-coded, 5 contacts). It has a diecast zinc housing and is rated IP67 for -10…60 °C ambient.
Technical reference
| Product name | IFM O1D300 O1D laser distance / level sensors Optical level sensor |
|---|---|
| Brand | IFM |
| Model | O1D300 |
| Category | Pressure, Flow & Temperature |
| Measuring range | 0.2...10; (white paper 200 x 200 mm 90 % remission) m |
| Output function | normally open / closed; (programmable) |
| Electrical design | PNP |
| Operating voltage | 18...30 DC; (cULus - Class 2 source required) V |
| Analog current output | 4...20; (IEC 61131-2) mA |
| Analog voltage output | 0...10; (IEC 61131-2) V |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
