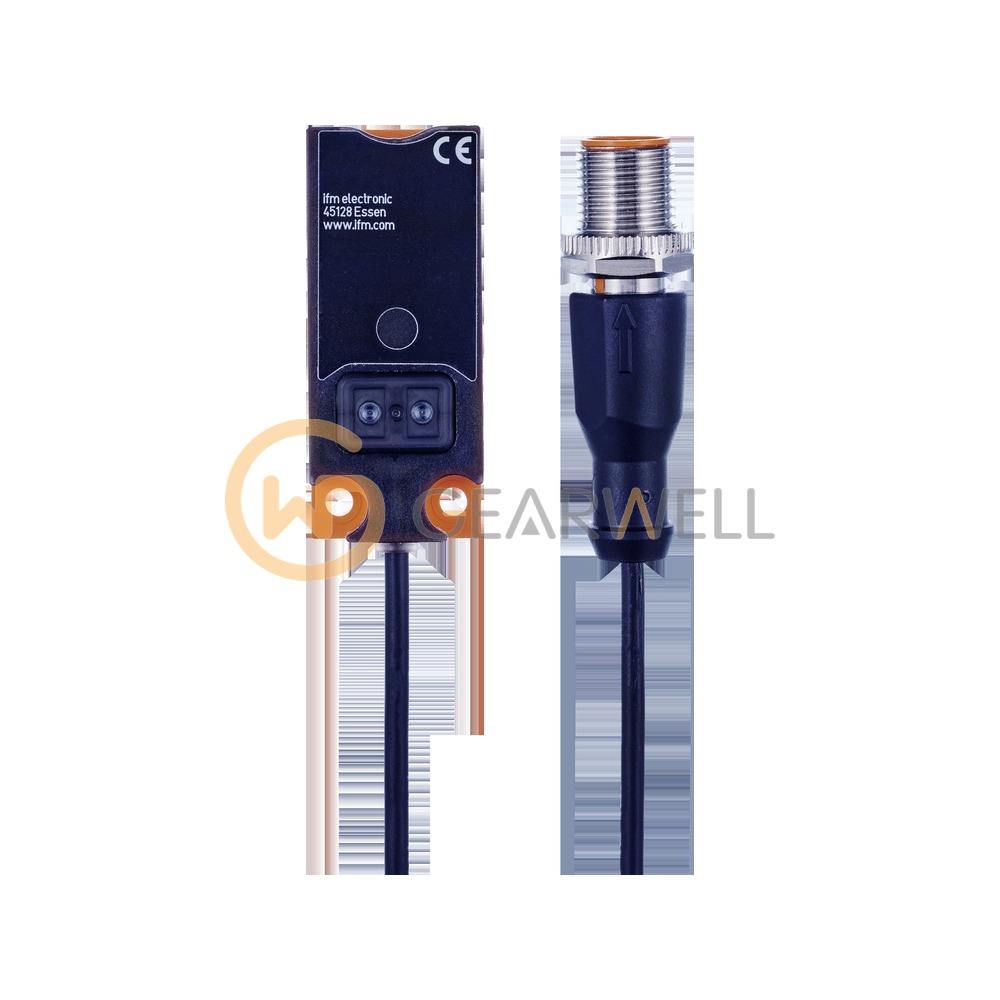

IFM KQ6005 efector capacitive / level sensors KQ Capacitive sensor
- Brand
- IFM
- Model
- KQ6005
- GEARWELL SKU
- GWP-000012116
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Media
- dry bulk material; liquids
- Protection
- IP 65; IP 67; IP 69K
- Sensing range
- 12 mm
- Output function
- normally open / closed; (selectable)
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KQ6005 (KQ-3120NFPKG/2T/0,1M/US) is a capacitive proximity sensor in a rectangular housing measuring 20 x 14 x 48 mm, for non-flush mounting. Its rated sensing range is 12 mm. The real sensing range is 12 mm ± 10%. The PNP switching output is selectable as normally open or normally closed, rated at 100 mA and up to 10 Hz on 10…30 V DC, with reverse polarity protection. The sensor has a PBT reinforced glass-fiber housing, connects through a 0.1 m PVC cable with 3 x 0.14 mm² conductors ending in an M12 connector (A-coded, 3 contacts) and is rated IP65, IP67 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM KQ6005 efector capacitive / level sensors KQ Capacitive sensor |
|---|---|
| Brand | IFM |
| Model | KQ6005 |
| Category | Proximity & Photoelectric Sensors |
| Media | dry bulk material; liquids |
| Protection | IP 65; IP 67; IP 69K |
| Sensing range | 12 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...80 °C |
| Communication interface | IO-Link |
