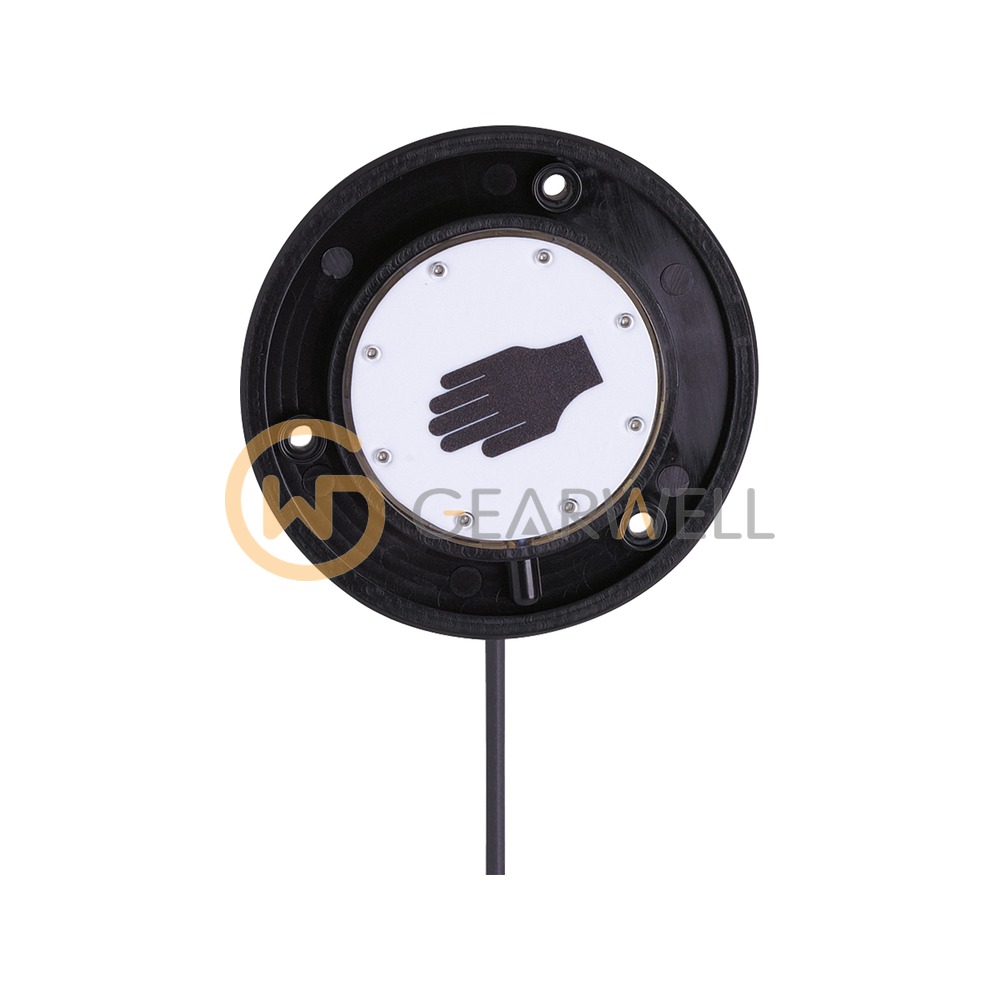

IFM KT5010 KTRDHOK-RBPKG/AM/2M Capacitive Touch Sensor
- Brand
- IFM
- Model
- KT5010
- GEARWELL SKU
- GWP-000008436
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- cylindrical
- Dimensions
- Ø 96.9 / L = 11 mm
- Protection
- IP 67; IP 69K (on the front)
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KT5010 (KTRDHOK-RBPKG/AM/2M) is a capacitive touch sensor in a round Ø 96.9 mm housing 11 mm long. It is operated by touch on the actuating surface, with a response time of 35 ms and an output pulse of 300 ms. The PNP switching output is normally open, rated at 200 mA, on 12…30 V DC. The sensor has a transparent PA (Grilamid TR 90UV) actuating surface and a black PC/ABS housing, and connects through a 2 m PUR cable, and is rated IP67 and IP69K on the front for -40…85 °C ambient.
Technical reference
| Product name | IFM KT5010 KTRDHOK-RBPKG/AM/2M Capacitive Touch Sensor |
|---|---|
| Brand | IFM |
| Model | KT5010 |
| Category | Proximity & Photoelectric Sensors |
| Housing | cylindrical |
| Dimensions | Ø 96.9 / L = 11 mm |
| Protection | IP 67; IP 69K (on the front) |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 12...30 DC V |
| Ambient temperature | -40...85 °C |
| Current consumption | 30 mA |
