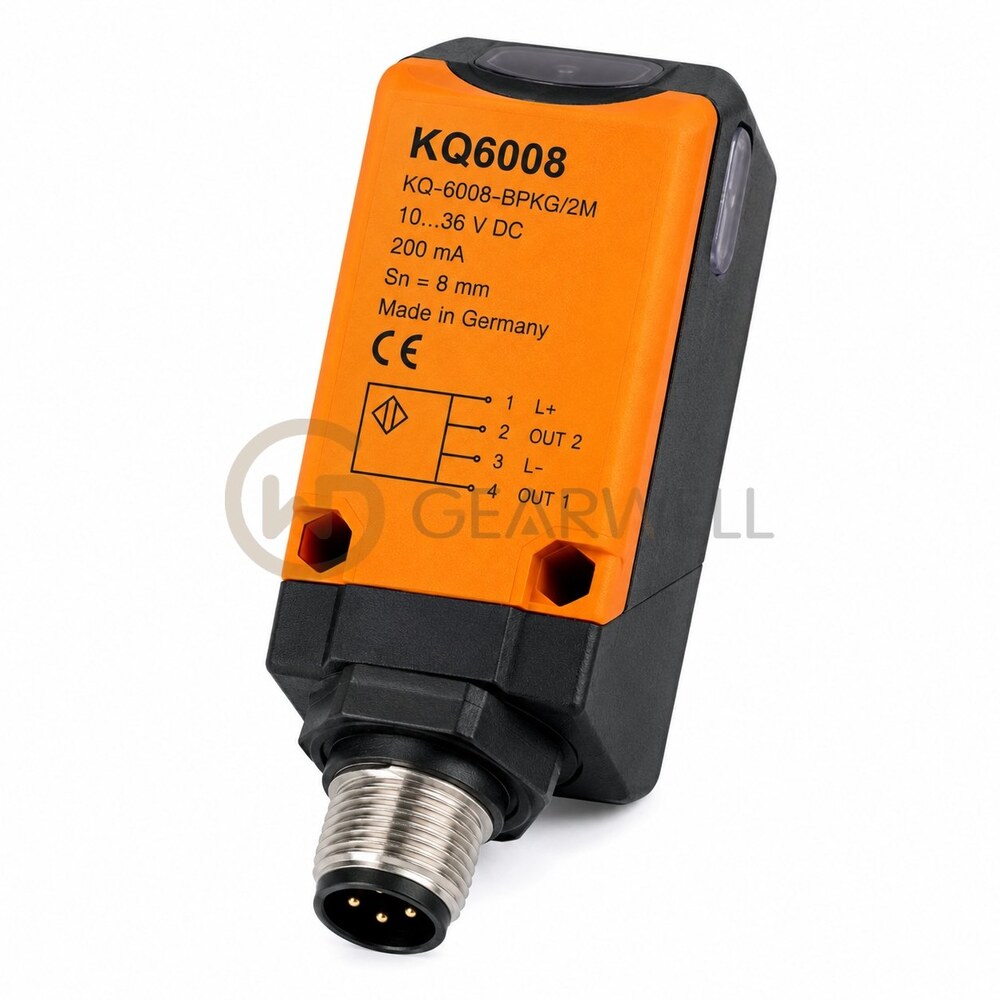

IFM KQ6008 Capacitive Sensor
- Brand
- IFM
- Model
- KQ6008
- GEARWELL SKU
- GWP-000000926
- Category
- Industrial Automation Parts
Key specifications
- Connection
- 0.04 m cable with M8 A-coded connector
- Output type
- PNP; selectable NO/NC
- Product type
- Capacitive sensor
- Communication
- IO-Link 1.1
- Sensing range
- 12 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KQ6008 (KQ-3120NFPKG/2T/0,04M/AS) is a capacitive proximity sensor in a rectangular housing measuring 57 x 36 x 14 mm, for non-flush mounting. Its rated sensing range is 12 mm. The real sensing range is 12 mm ± 10%. The PNP switching output is selectable as normally open or normally closed, rated at 100 mA and up to 10 Hz on 10…30 V DC, with reverse polarity protection. The sensor has a PBT reinforced glass-fiber housing, connects through a 0.04 m PVC cable with 3 x 0.14 mm² conductors ending in an M8 connector (A-coded, 3 contacts) and is rated IP65, IP67 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM KQ6008 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KQ6008 |
| Category | Industrial Automation Parts |
| Connection | 0.04 m cable with M8 A-coded connector |
| Output type | PNP; selectable NO/NC |
| Product type | Capacitive sensor |
| Communication | IO-Link 1.1 |
| Sensing range | 12 mm |
| Operating voltage | 10–30 V DC |
| Protection rating | IP65 / IP67 / IP69K |
| Ambient temperature | -25 to +80 °C |
