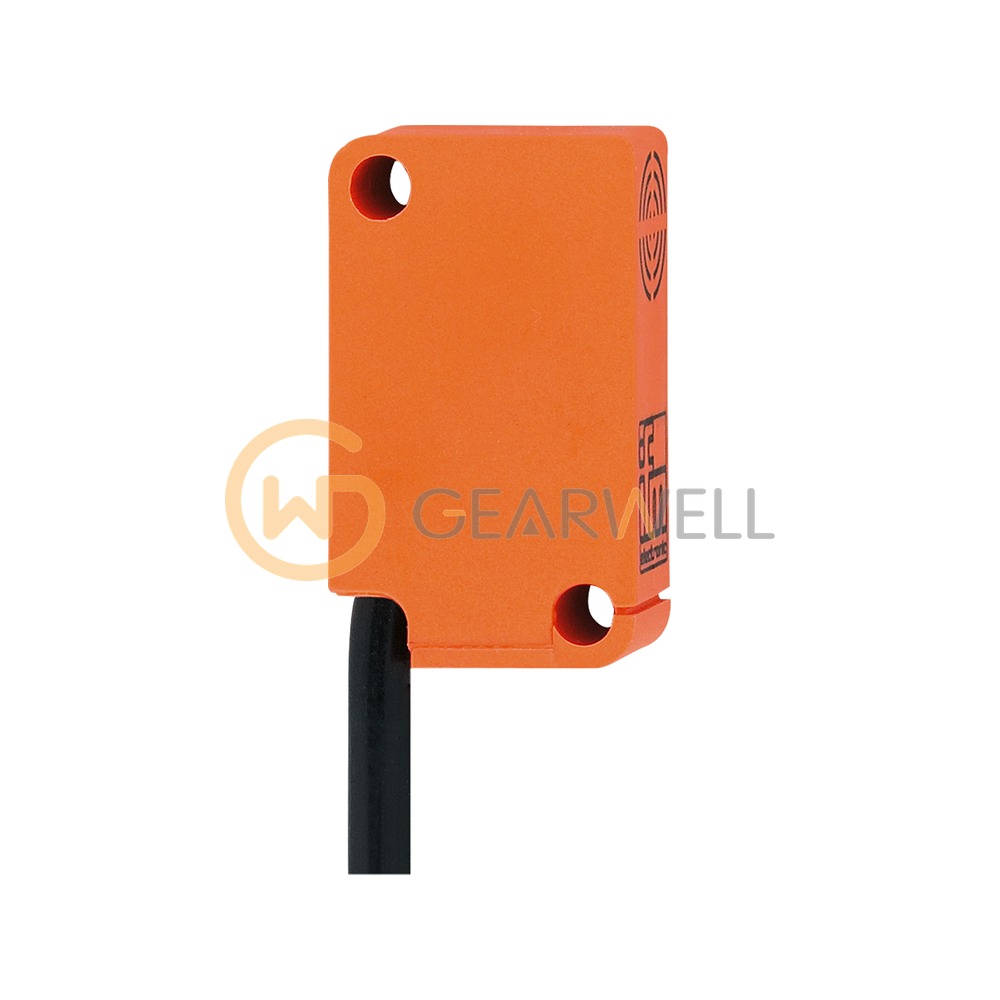

IFM IS5070 IS series Inductive sensor
- Brand
- IFM
- Model
- IS5070
- GEARWELL SKU
- GWP-000012436
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 28 x 10 x 16 mm
- Protection
- IP 67
- Sensing range
- 4 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IS5070 (IS-3004-BPKG) is an inductive proximity sensor in a rectangular housing measuring 28 x 10 x 16 mm, for non-flush mounting. Its rated sensing range is 4 mm. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.24 mm. The PNP switching output is normally open, rated at 200 mA and up to 2000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. The sensor has a PBT housing, connects through a 2 m PVC cable with 3 x 0.14 mm² conductors and is rated IP67 for -25…70 °C ambient. ifm lists it for use where space is restricted.
Technical reference
| Product name | IFM IS5070 IS series Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IS5070 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 28 x 10 x 16 mm |
| Protection | IP 67 |
| Sensing range | 4 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...70 °C |
| Switching frequency DC | 2000 Hz |
