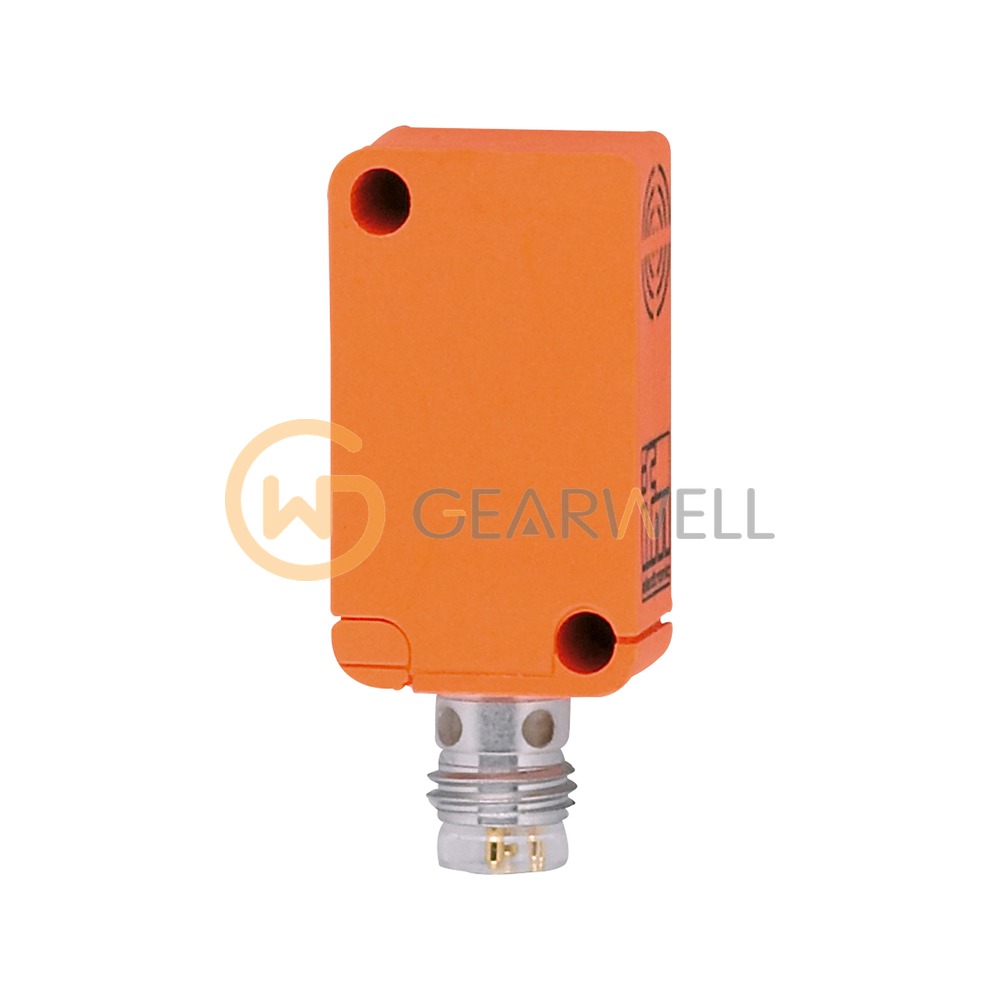

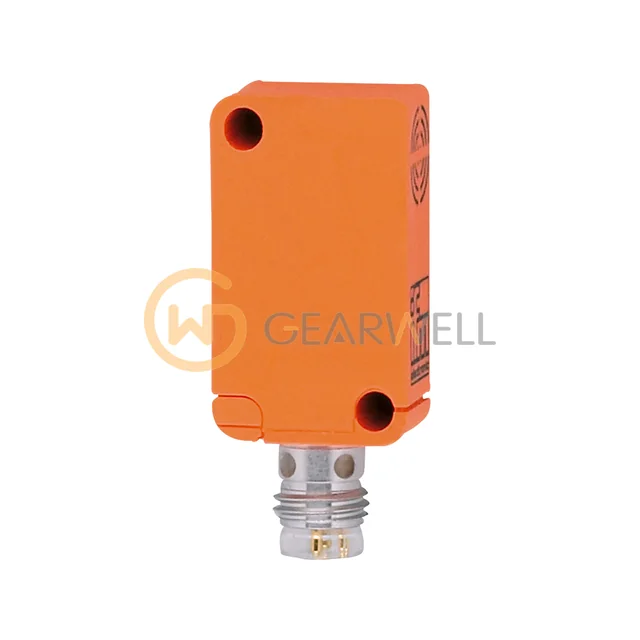

IFM IS5036 IS series Inductive sensor
- Brand
- IFM
- Model
- IS5036
- GEARWELL SKU
- GWP-000012434
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 28 x 10 x 16 mm
- Protection
- IP 65; IP 67; (with ifm socket duly screwed on)
- Sensing range
- 2 mm
- Output function
- normally closed
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IS5036 (IS-3002-APKG/AS) is an inductive proximity sensor in a rectangular housing measuring 36.8 x 10.2 x 16 mm, for flush mounting. Its rated sensing range is 2 mm. The real sensing range is 2 mm ± 10% and the operating distance on steel is 0…1.6 mm. The PNP switching output is normally closed, rated at 200 mA and up to 800 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a PBT housing, connects through an M8 connector (A-coded, 3 contacts) and is rated IP65 and IP67 for -25…80 °C ambient. ifm lists it for use where space is restricted.
Technical reference
| Product name | IFM IS5036 IS series Inductive sensor |
|---|---|
| Brand | IFM |
| Model | IS5036 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 28 x 10 x 16 mm |
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
| Sensing range | 2 mm |
| Output function | normally closed |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Ambient temperature | -25...80 °C |
| Switching frequency DC | 800 Hz |
