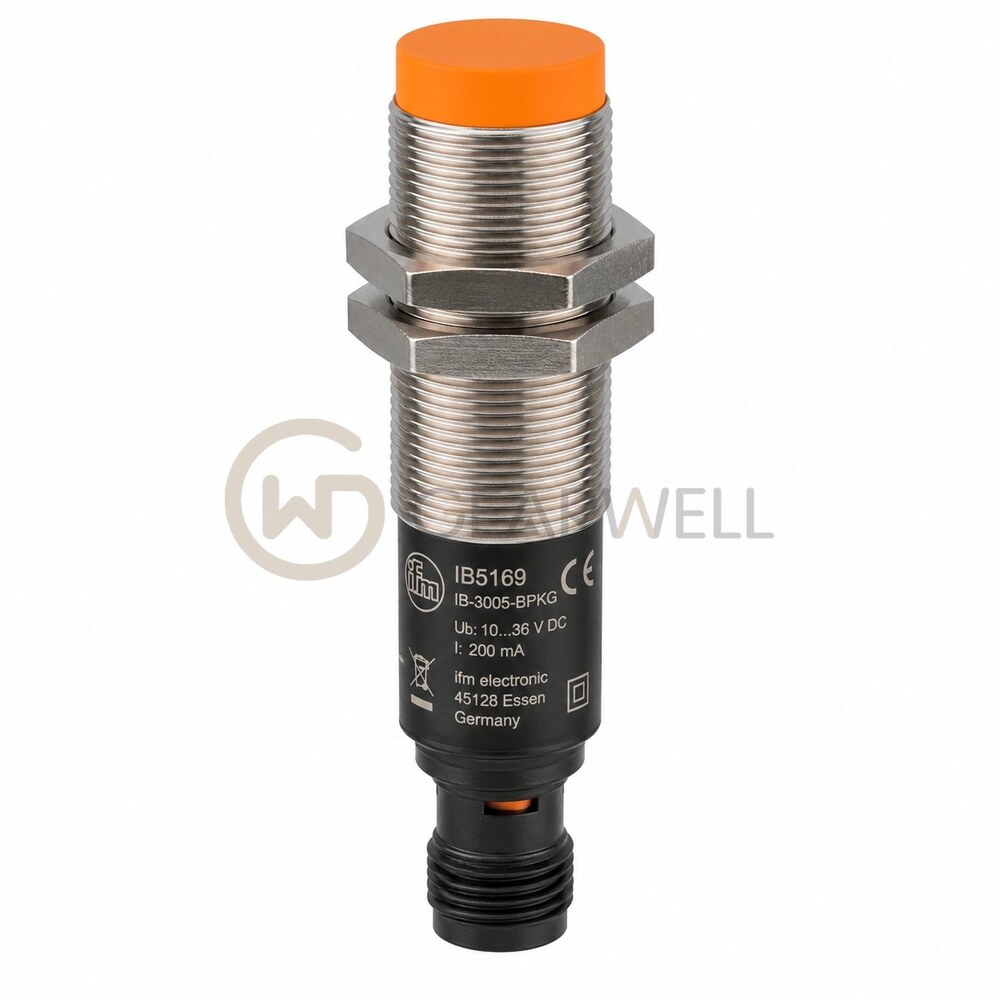

IFM IB5169 Inductive Sensor
- Brand
- IFM
- Model
- IB5169
- GEARWELL SKU
- GWP-000000937
- Category
- Industrial Automation Parts
Key specifications
- Dimensions
- Ø 34 / L = 95 mm
- Protection
- IP 67
- Product type
- Inductive sensor
- Sensing range
- 20 mm
- Output function
- normally open / closed; (selectable)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IB5169 (IB-2020-FRKG/US-104-IRF) is an inductive proximity sensor in a smooth tubular Ø 34 mm housing 95 mm long, for non-flush mounting. Its rated sensing range is 20 mm. The real sensing range is 20 mm ± 10% and the operating distance on steel is 0…16.2 mm. The PNP/NPN switching output is selectable as normally open or normally closed, rated at 250 mA and up to 200 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a PBT housing with an orange PBT sensing face, connects through an M12 connector (A-coded, 4 gold-plated contacts) and is rated IP67 for -25…70 °C ambient. Supplied with one mounting clamp.
Technical reference
| Product name | IFM IB5169 Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IB5169 |
| Category | Industrial Automation Parts |
| Dimensions | Ø 34 / L = 95 mm |
| Protection | IP 67 |
| Product type | Inductive sensor |
| Sensing range | 20 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP/NPN |
| Operating voltage | 10...36 V DC |
| Ambient temperature | -25...70 °C |
