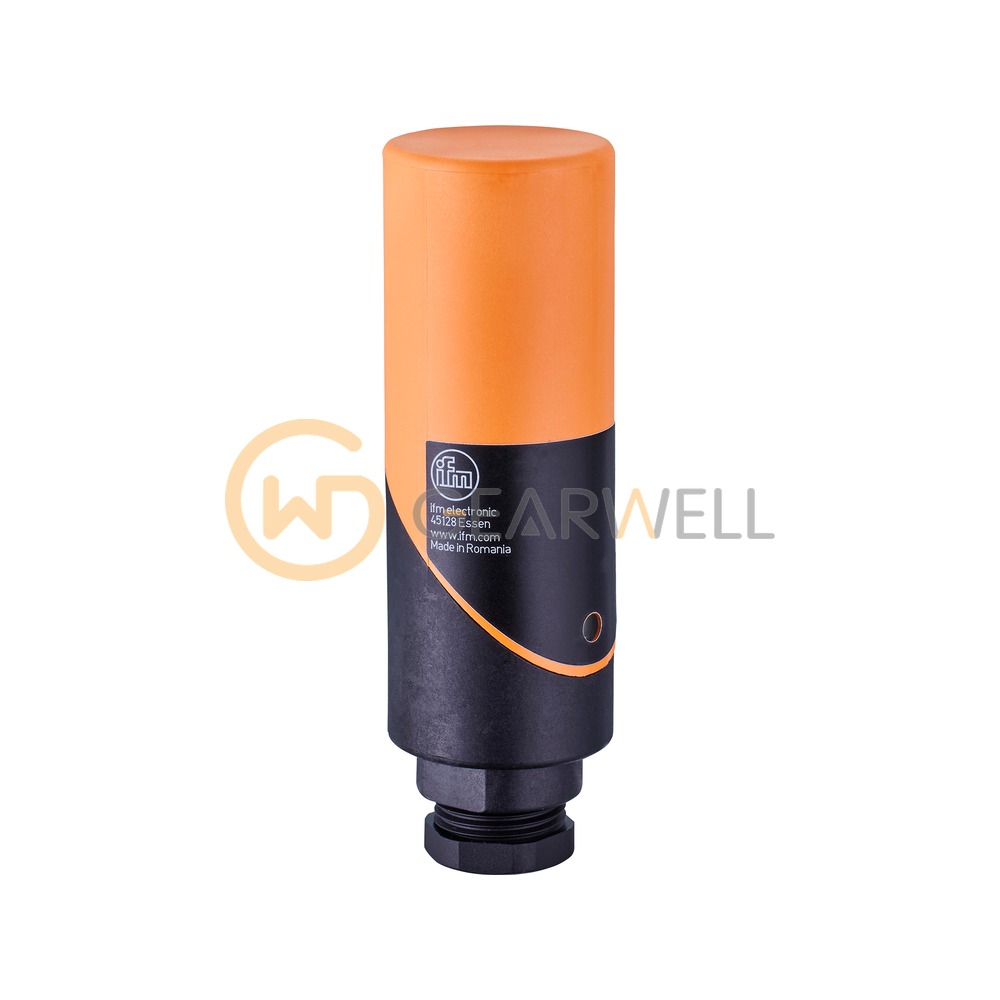

IFM IB5133 Inductive sensors Inductive sensor

Product overview

The ifm IB5133 (IBE3030-FPKG) is an inductive proximity sensor in a smooth tubular Ø 34 mm housing 98 mm long, for non-flush mounting. Its rated sensing range is 30 mm. The real sensing range is 30 mm ± 10% and the operating distance on steel is 0…24.3 mm. The PNP switching output is selectable as normally open or normally closed, rated at 200 mA and up to 350 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a PBT housing, connects through terminals for conductors up to 2.5 mm² in a terminal chamber with an M20 x 1.5 cable gland for cable Ø 7…13 mm and is rated IP65 for -25…80 °C ambient. Supplied with one mounting clamp.
