IFM EVT007 Connecting Cable
- Brand
- IFM
- Model
- EVT007
- GEARWELL SKU
- GWP-000002916
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 206 g
- Dimensions
- 26.5 x 15.5 x 36.5 mm
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Product type
- Female cordset
- Travel speed
- max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

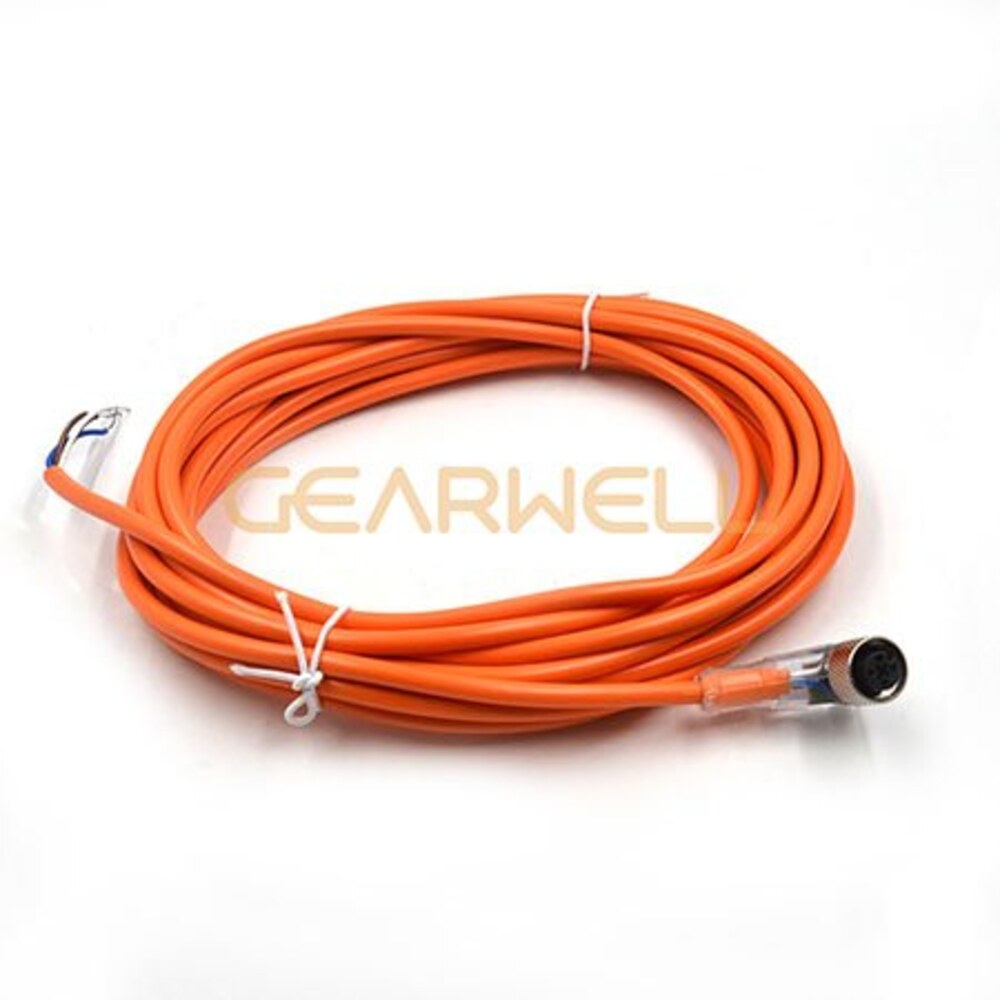

The ifm EVT007 (ADOAH043VAS0005E04) is a female cordset with an angled M12 connector (A-coded, 4 gold-plated contacts) for sanitary and wet areas in the food industry; it is free from silicone and suitable for drag chains. The 5 m orange PVC cable is Ø 4.9 mm with 4 x 0.34 mm² conductors. The connector has LEDs for the switching status (2 x yellow) and power (green) for PNP sensors at 10…36 V DC. It is rated for 10…36 V DC and 4 A in total, has a PVC body with a stainless steel (1.4404 / 316L) nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…100 °C ambient (5…100 °C when moving).
Technical reference
| Product name | IFM EVT007 Connecting Cable |
|---|---|
| Brand | IFM |
| Model | EVT007 |
| Category | Industrial Automation Parts |
| Weight | 206 g |
| Dimensions | 26.5 x 15.5 x 36.5 mm |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Product type | Female cordset |
| Travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² |
| Electrical design | PNP |
| Operating voltage | 10...36 V DC |
| Ambient temperature | -25...100 °C |
