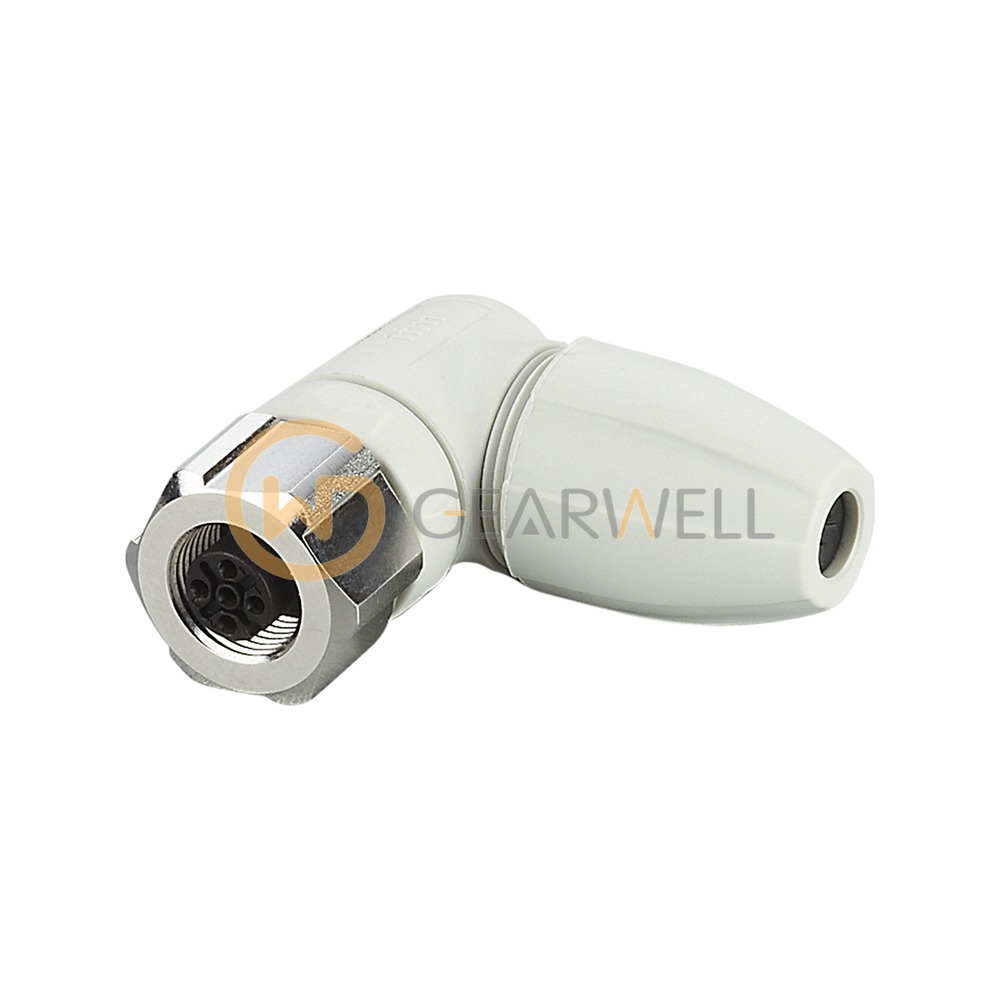

IFM EVF566 Female wirable connectors
- Brand
- IFM
- Model
- EVF566
- GEARWELL SKU
- GWP-000014133
- Category
- Terminals, Cables & Connectors
Key specifications
- Connector
- 1 x M12, angled; coding: A; Contacts: 4, gold-plated; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Material nut
- stainless steel (1.4404 / 316L)
- screw terminals
- 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17
- Sealing material
- EPDM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EVF566 (SDOAH040VASFKPG) is a wirable angled M12 female connector (A-coded, 4 gold-plated contacts) for sanitary and wet areas in the food industry, free from silicone. It has screw terminals for conductors of 0.25…1 mm² (AWG 23…17) and cable sheaths of Ø 3.5…6 mm, and is rated below 250 V AC / 300 V DC and 4 A (up to 40 °C). The body is PA 6.6 with a stainless steel (1.4404 / 316L) nut and EPDM seal, and it is rated IP65, IP67, IP68 and IP69K for -25…100 °C ambient.
Technical reference
| Product name | IFM EVF566 Female wirable connectors |
|---|---|
| Brand | IFM |
| Model | EVF566 |
| Category | Terminals, Cables & Connectors |
| Connector | 1 x M12, angled; coding: A; Contacts: 4, gold-plated; Moulded body: PA 6.6, grey; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart! |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Material nut | stainless steel (1.4404 / 316L) |
| screw terminals | 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17 |
| Sealing material | EPDM |
| Operating voltage | < 250 AC / < 300 DC V |
| Ambient temperature | -25...100 °C |
| Max. current load total | 4; (...40 °C) A |
