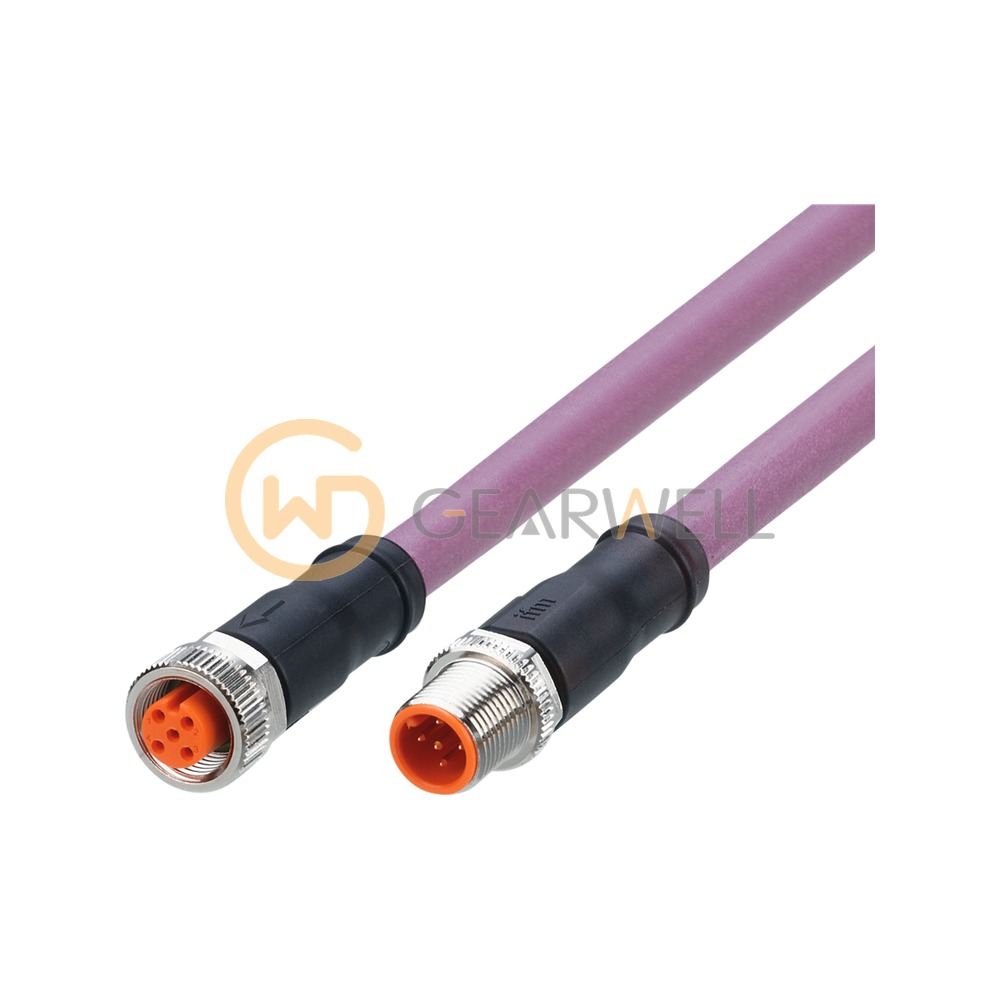

IFM EVC948 VDOGH050MSD0002C05STGH050MSS Connection Cable
- Brand
- IFM
- Model
- EVC948
- GEARWELL SKU
- GWP-000008384
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 233.2 g
- Protection
- IP 67; IP 68; IP 69K
- Application
- Use in mobile and harsh applications; CAN bus
- Special feature
- Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
- Operating voltage
- < 30 AC / < 36 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EVC948 (VDOGH050MSD0002C05STGH050MSS) is an M12 connection cable (A-coded, 5 gold-plated contacts) for mobile and harsh applications and CAN bus; it is halogen-free and suitable for drag chains. The 2 m lilac screened PUR cable is Ø 8.4 mm with 2 x 0.75 mm² and 2 x 0.5 mm² conductors plus a 0.75 mm² screen conductor. It is rated for below 30 V AC / below 36 V DC and 4 A in total, has a TPU body with a nickel-plated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP67, IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM EVC948 VDOGH050MSD0002C05STGH050MSS Connection Cable |
|---|---|
| Brand | IFM |
| Model | EVC948 |
| Category | Terminals, Cables & Connectors |
| Weight | 233.2 g |
| Protection | IP 67; IP 68; IP 69K |
| Application | Use in mobile and harsh applications; CAN bus |
| Special feature | Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability |
| Operating voltage | < 30 AC / < 36 DC V |
| Ambient temperature | -25...80 °C |
