IFM EVT138 ADOAF040VAS0002E04 Connecting Cable with Socket
- Brand
- IFM
- Model
- EVT138
- GEARWELL SKU
- GWP-000009577
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 83.5 g
- Dimensions
- 19 x 10 x 25.5 mm
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Special feature
- Free from silicone; Gold-plated contacts; Drag chain suitability
- Operating voltage
- < 50 AC / < 60 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

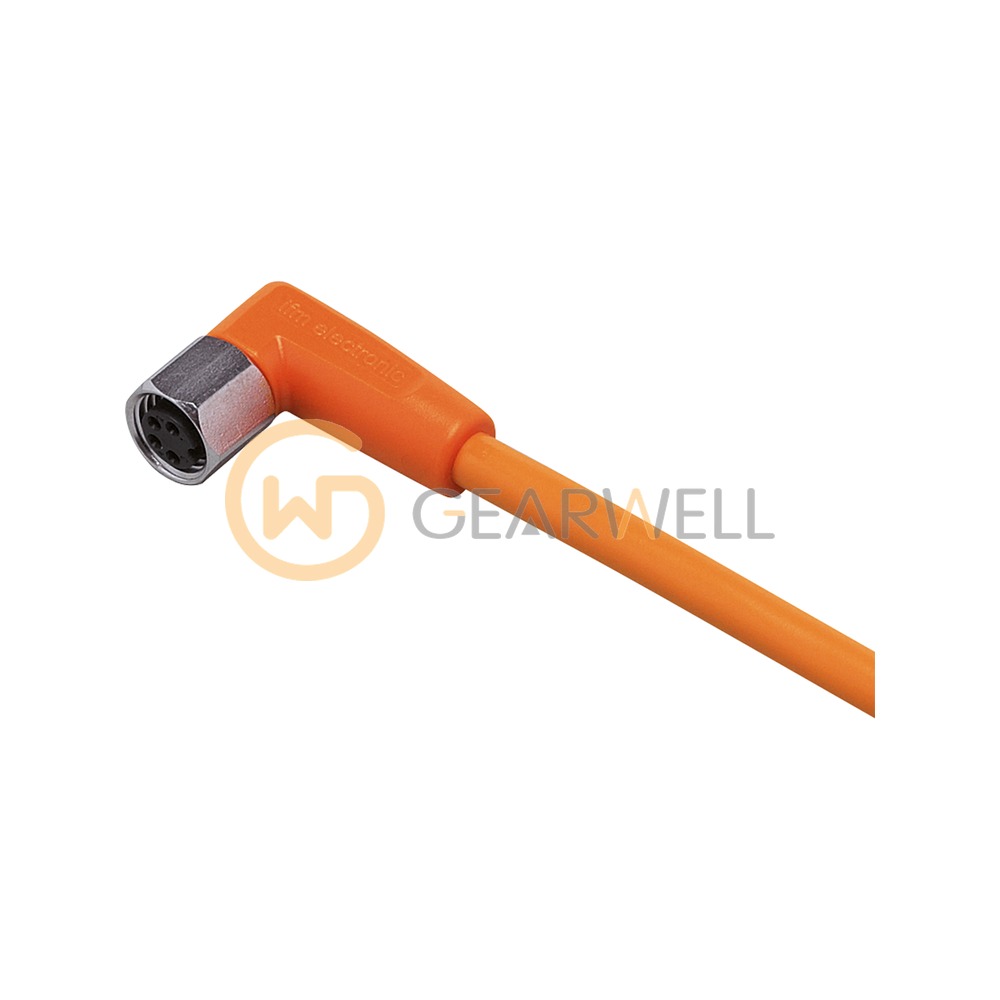

The ifm EVT138 (ADOAF040VAS0002E04) is a female cordset with an angled M8 connector (A-coded, 4 gold-plated contacts) for sanitary and wet areas in the food industry; it is free from silicone and suitable for drag chains. The 2 m orange PVC cable is Ø 4.9 mm with 4 x 0.34 mm² conductors. It is rated for below 50 V AC / below 60 V DC and 3 A in total, has a PVC body with a stainless steel (1.4404 / 316L) nut (tightening torque 0.3…0.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…80 °C ambient (5…80 °C when moving).
Technical reference
| Product name | IFM EVT138 ADOAF040VAS0002E04 Connecting Cable with Socket |
|---|---|
| Brand | IFM |
| Model | EVT138 |
| Category | Terminals, Cables & Connectors |
| Weight | 83.5 g |
| Dimensions | 19 x 10 x 25.5 mm |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Special feature | Free from silicone; Gold-plated contacts; Drag chain suitability |
| Operating voltage | < 50 AC / < 60 DC V |
| Ambient temperature | -25...80 °C |
