IFM EVT122 ADOGF030VAS0002E03 Connecting Cable with Socket
- Brand
- IFM
- Model
- EVT122
- GEARWELL SKU
- GWP-000009576
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 76.8 g
- Dimensions
- 10 x 10 x 31 mm
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Special feature
- Free from silicone; Gold-plated contacts; Drag chain suitability
- Operating voltage
- < 50 AC / < 60 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

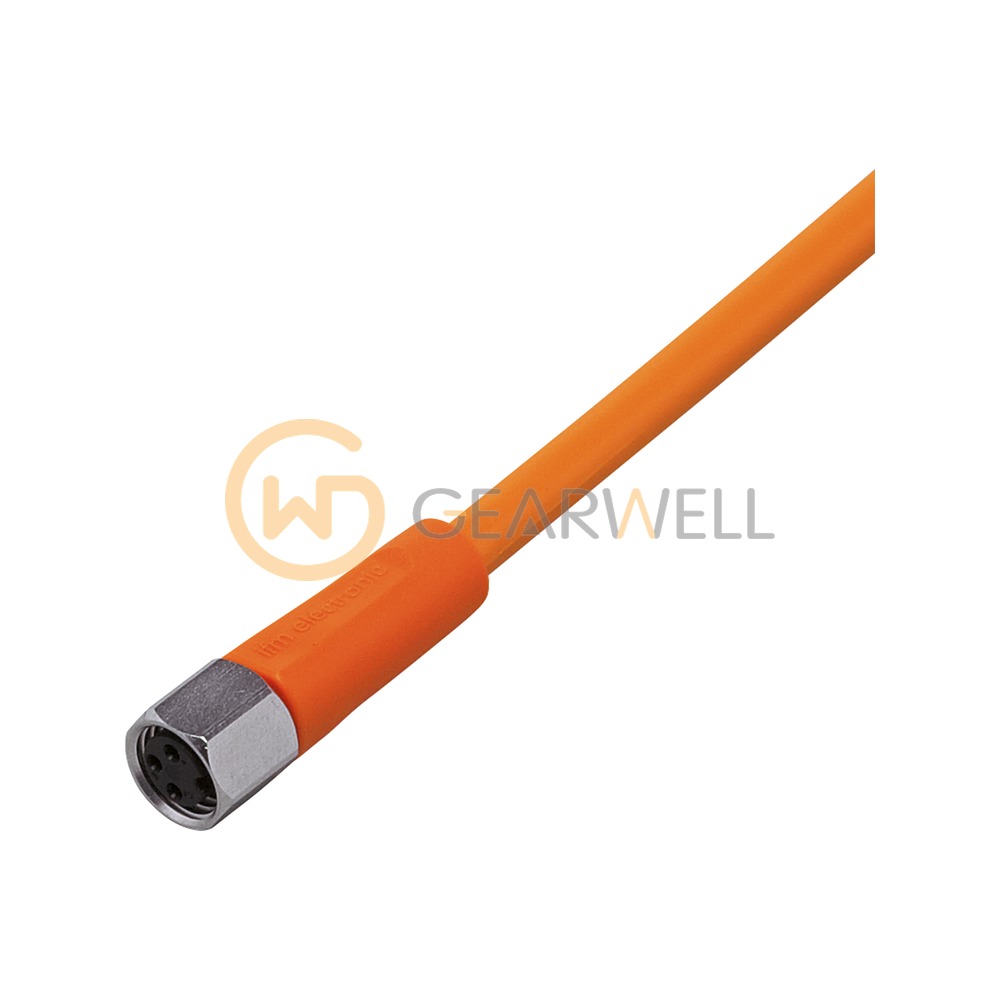

The ifm EVT122 (ADOGF030VAS0002E03) is a female cordset with a straight M8 connector (A-coded, 3 gold-plated contacts) for sanitary and wet areas in the food industry; it is free from silicone and suitable for drag chains. The 2 m orange PVC cable is Ø 4.9 mm with 3 x 0.34 mm² conductors. It is rated for below 50 V AC / below 60 V DC and 3 A in total, has a PVC body with a stainless steel (1.4404 / 316L) nut (tightening torque 0.3…0.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…80 °C ambient (5…80 °C when moving).
Technical reference
| Product name | IFM EVT122 ADOGF030VAS0002E03 Connecting Cable with Socket |
|---|---|
| Brand | IFM |
| Model | EVT122 |
| Category | Terminals, Cables & Connectors |
| Weight | 76.8 g |
| Dimensions | 10 x 10 x 31 mm |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Special feature | Free from silicone; Gold-plated contacts; Drag chain suitability |
| Operating voltage | < 50 AC / < 60 DC V |
| Ambient temperature | -25...80 °C |
