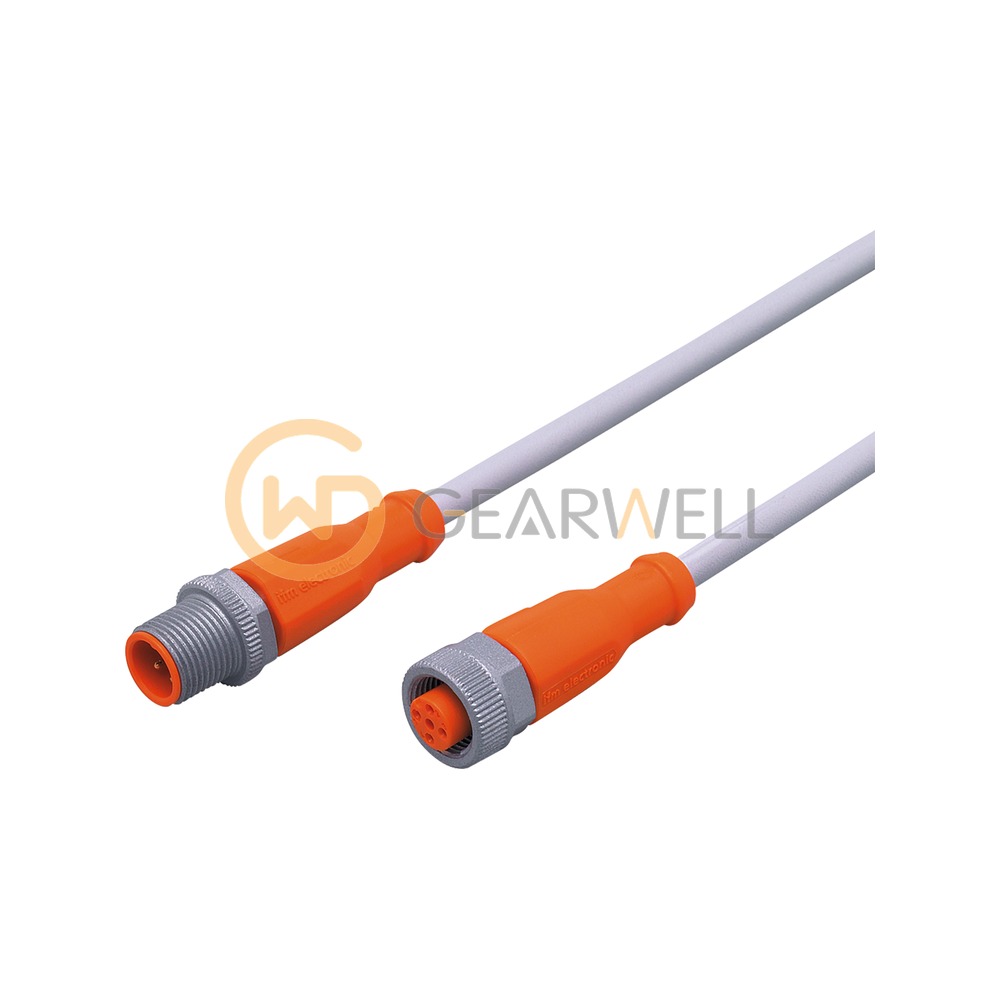

IFM EVW037 Connection cables (welding) Connection cable
- Brand
- IFM
- Model
- EVW037
- GEARWELL SKU
- GWP-000012257
- Category
- Terminals, Cables & Connectors
Key specifications
- Cable
- 0.3 m, PUR, Halogen-free, grey, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )
- Connector
- 1 x M12, straight; coding: A; Contacts: 4, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, weld coated; Tightening torque: 0.6...1.5 Nm
- Protection
- IP 65; IP 67; IP 68; IP 69K
- Operating voltage
- < 250 AC / < 300 DC V
- Ambient temperature
- -25...90 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm EVW037 (VDOGH040SCS00,3T04STGH040SCS) is an M12 connection cable (A-coded, 4 gold-plated contacts) for welding applications, with a cable resistant to welding sparks; it is halogen-free, free from silicone and suitable for drag chains. The 0.3 m grey PUR cable is Ø 4.9 mm with 4 x 0.34 mm² conductors. It is rated for below 250 V AC / below 300 V DC and 4 A in total, has a TPU body with a weld-coated brass nut (tightening torque 0.6…1.5 Nm) and is rated IP65, IP67, IP68 and IP69K for -25…90 °C ambient. Two 30 mm label holders are included.
Technical reference
| Product name | IFM EVW037 Connection cables (welding) Connection cable |
|---|---|
| Brand | IFM |
| Model | EVW037 |
| Category | Terminals, Cables & Connectors |
| Cable | 0.3 m, PUR, Halogen-free, grey, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
| Connector | 1 x M12, straight; coding: A; Contacts: 4, gold-plated; Moulded body: TPU (urethane), orange; Locking: brass, weld coated; Tightening torque: 0.6...1.5 Nm |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| Operating voltage | < 250 AC / < 300 DC V |
| Ambient temperature | -25...90 °C |
| Max. current load total | 4 A |
