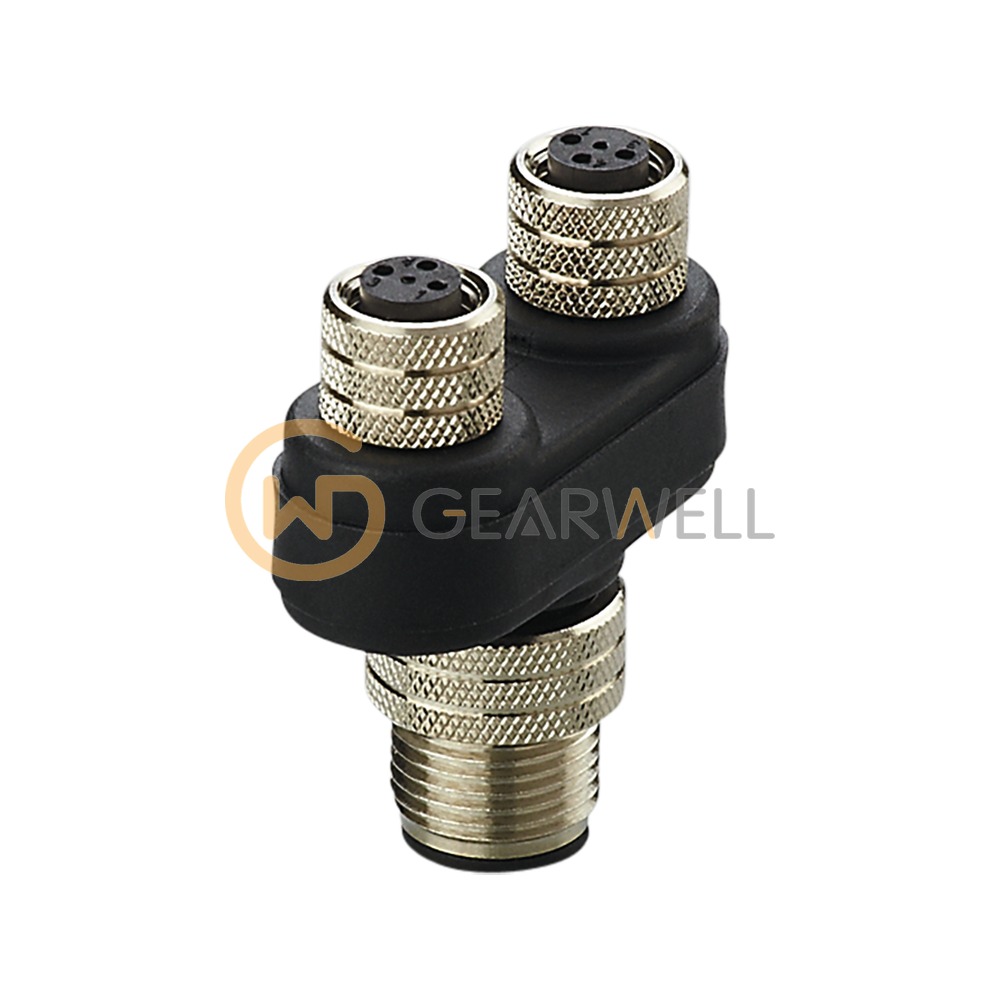

IFM E10802 ZDO2F030MSS0000-00STGH040MSS Y-splitter
- Brand
- IFM
- Model
- E10802
- GEARWELL SKU
- GWP-000008648
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 21.8 g
- Materials
- PUR
- Dimensions
- 15.4 x 35.4 x 39.1 mm
- Protection
- IP 67
- Operating voltage
- < 60 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm E10802 (ZDO2F030MSS0000-00STGH040MSS) is a Y/T splitter with an M12 connector (A-coded, 4 gold-plated contacts) and M8 connections, free from silicone, for industrial applications. It is rated for voltages below 60 V DC and a total current of 3 A, has a PUR body and nickel-plated brass nut, measures 15.4 x 35.4 x 39.1 mm and is rated IP67 for -25…90 °C ambient.
Technical reference
| Product name | IFM E10802 ZDO2F030MSS0000-00STGH040MSS Y-splitter |
|---|---|
| Brand | IFM |
| Model | E10802 |
| Category | Terminals, Cables & Connectors |
| Weight | 21.8 g |
| Materials | PUR |
| Dimensions | 15.4 x 35.4 x 39.1 mm |
| Protection | IP 67 |
| Operating voltage | < 60 DC V |
| Ambient temperature | -25...90 °C |
