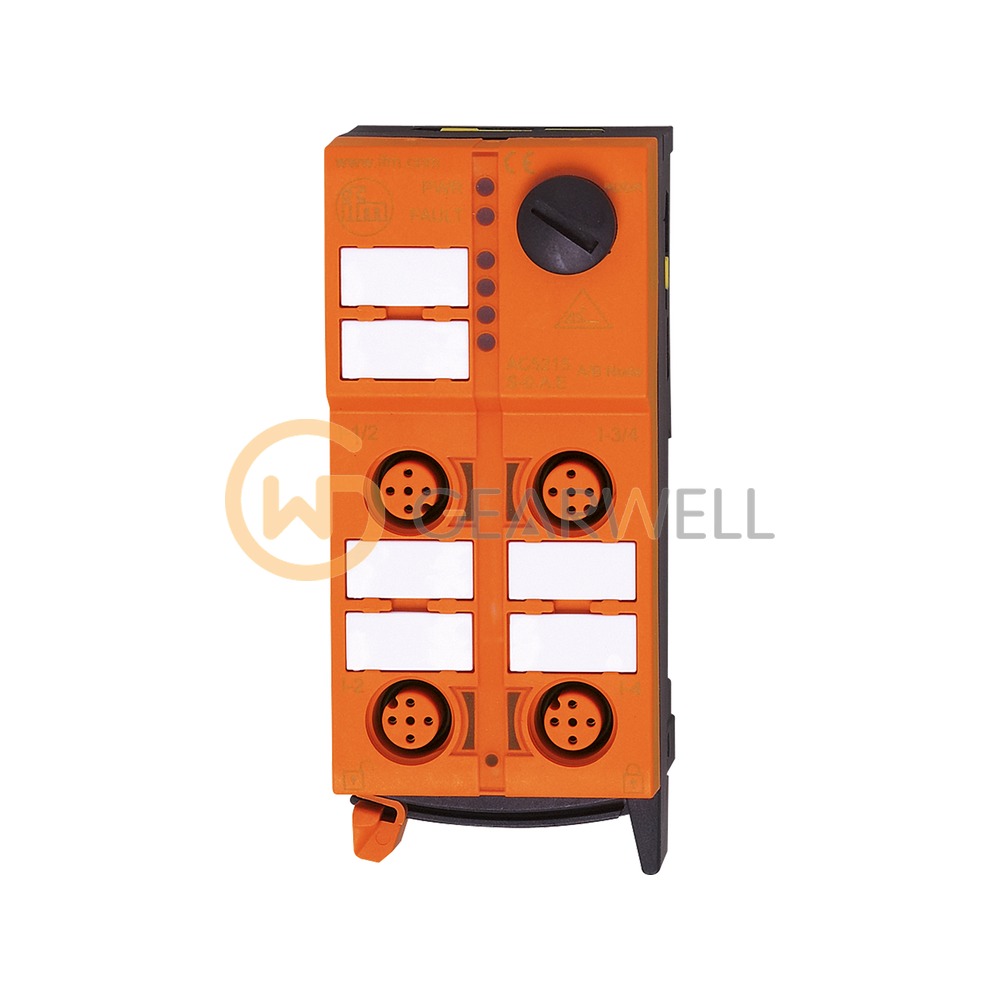

IFM AC5215 AS-Interface ClassicLine module with quick mounting technology
- Brand
- IFM
- Model
- AC5215
- GEARWELL SKU
- GWP-000006782
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC5215 (ClassicLine 4DI-Y IP67) is an AS-Interface ClassicLine module with quick mounting technology for field installation. It has four digital inputs, with PNP inputs powered from AS-i. On the AS-i side it supports AS-i versions 2.11 and 3.0 with slave profile S-0.A.E and extended (A/B) addressing, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 250 mA. The housing measures 103 x 45 x 44.7 mm and is made of PA. It connects to the AS-i flat cable and mounts on a TH35 DIN rail, has an M12 socket and is rated IP67 for -25…70 °C ambient. Supplied with the lower part.
Technical reference
| Product name | IFM AC5215 AS-Interface ClassicLine module with quick mounting technology |
|---|---|
| Brand | IFM |
| Model | AC5215 |
| Category | PLCs & I/O |
