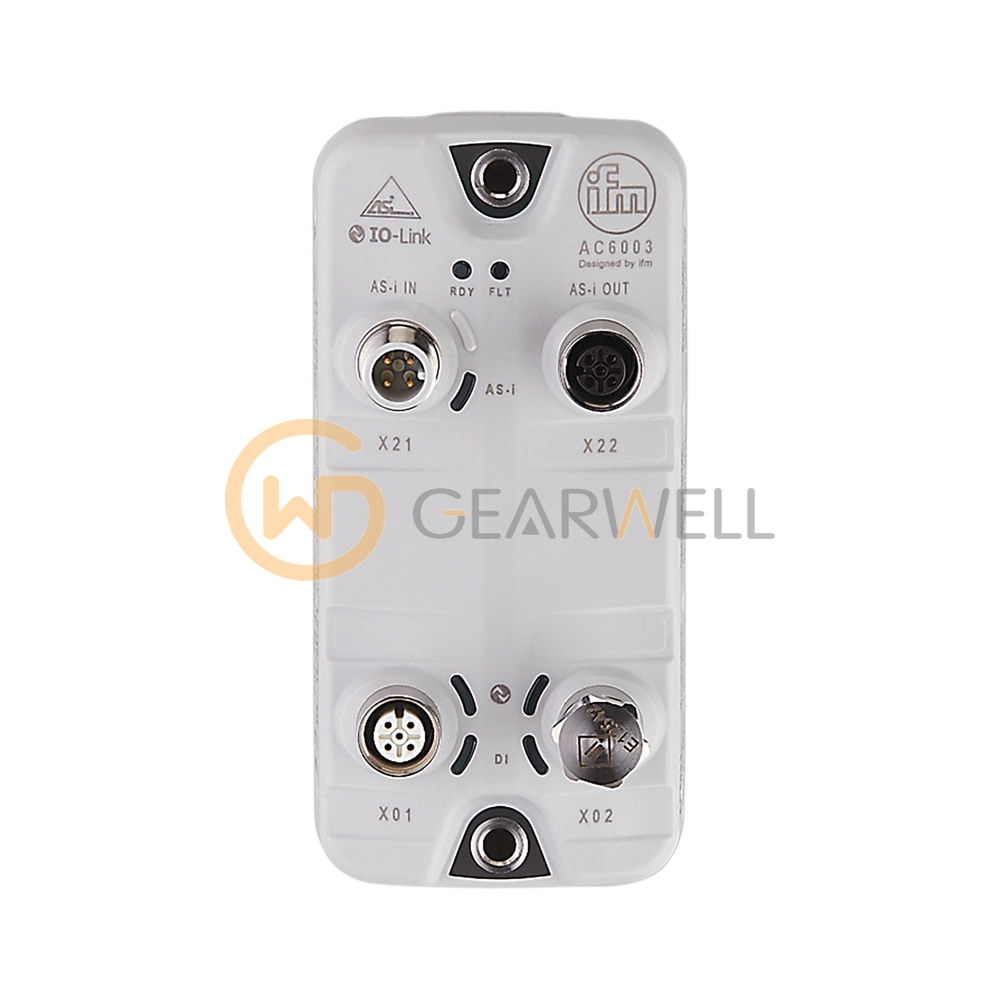

IFM AC6003 IO-Link Master with AS-i Interface

Product overview

The ifm AC6003 (IO-Link Master AS-i 2P IP69K) is an IO-Link master with AS-i interface for sanitary and wet areas in the food industry. It has two class A IO-Link ports (IO-Link revision 1.1), which provide 4 configurable inputs and outputs in total: up to 4 digital inputs and 2 digital outputs. On AS-i it supports versions 2.11 and 3.0 and appears as 1…5 AS-i devices, with slave profile S-7.3.E for the additional CTT1 slave. It runs on 26…31.6 V DC from AS-i, and both the supply and the fieldbus can be daisy-chained. The grey PA housing measures 124 x 59.3 x 38.4 mm and has stainless steel (1.4404 / 316L) sockets. It mounts on a backplane, has two M12 sockets (A-coded, 4-pin) and is rated IP65, IP66, IP67 and IP69K (IP69K with stainless steel protective caps) for -25…60 °C ambient.
