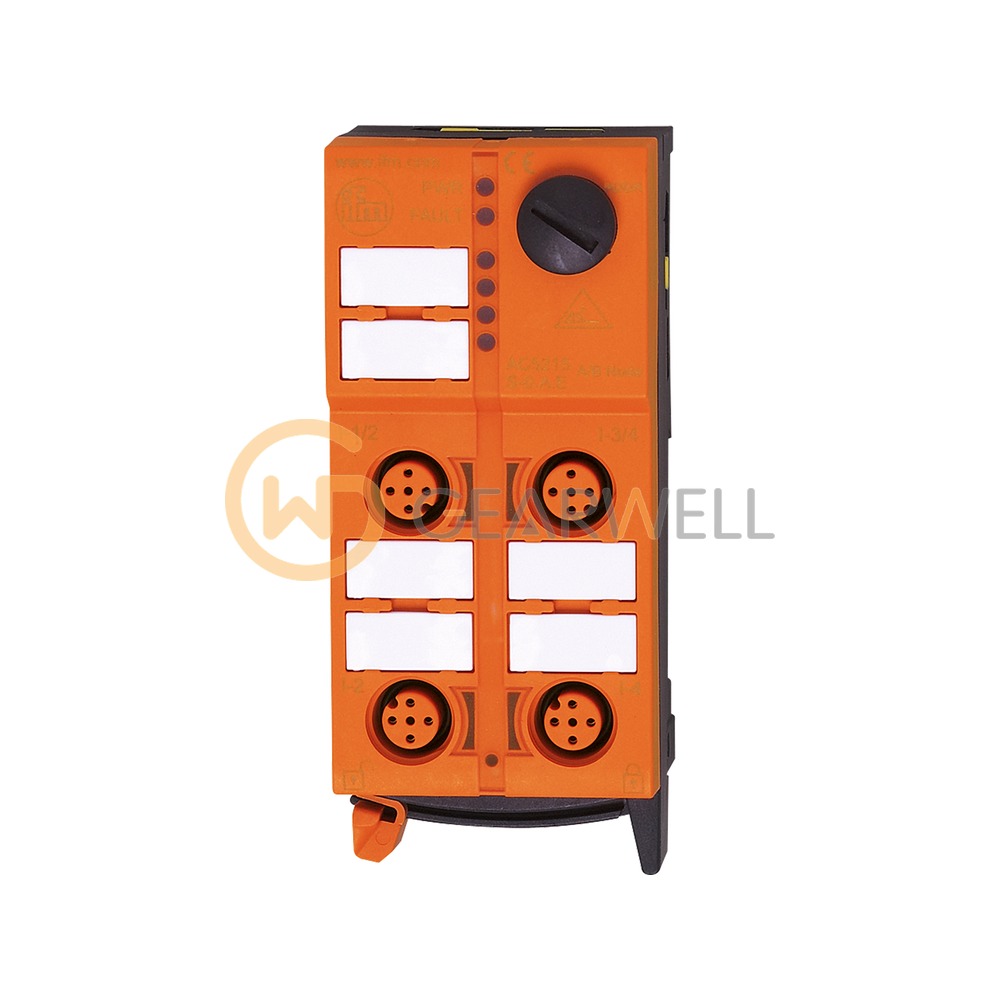

IFM AC5211 AS-Interface ClassicLine Module
- Brand
- IFM
- Model
- AC5211
- GEARWELL SKU
- GWP-000008617
- Category
- PLCs & I/O
Key specifications
- Housing
- rectangular
- Dimensions
- 103 x 45 x 44.7 mm
- Protection
- IP 67
- Operating voltage
- 26.5...31.6 DC ("supply class 2" to cULus) V
- Ambient temperature
- -25...70 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC5211 (ClassicLine 2DI 2DO-Y IP67) is an AS-Interface ClassicLine module with quick mounting technology for field installation. It has two digital inputs and two digital outputs, with PNP inputs powered from AS-i. The PNP outputs carry up to 2000 mA each and 4 A in total, with an output supply of 15…30 V DC. On the AS-i side it supports AS-i versions 2.11 and 3.0 with slave profile S-3.0.E, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 150 mA, with an AUX supply of 15…30 V DC. The housing measures 103 x 45 x 44.7 mm and is made of PA. It connects to the AS-i flat cable and mounts on a TH35 DIN rail, has an M12 socket (A-coded, 5-pin) and is rated IP67 for -25…70 °C ambient. Supplied with the lower part.
Technical reference
| Product name | IFM AC5211 AS-Interface ClassicLine Module |
|---|---|
| Brand | IFM |
| Model | AC5211 |
| Category | PLCs & I/O |
| Housing | rectangular |
| Dimensions | 103 x 45 x 44.7 mm |
| Protection | IP 67 |
| Operating voltage | 26.5...31.6 DC ("supply class 2" to cULus) V |
| Ambient temperature | -25...70 °C |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 |
| Max. current consumption from AS-i | 150 mA |
