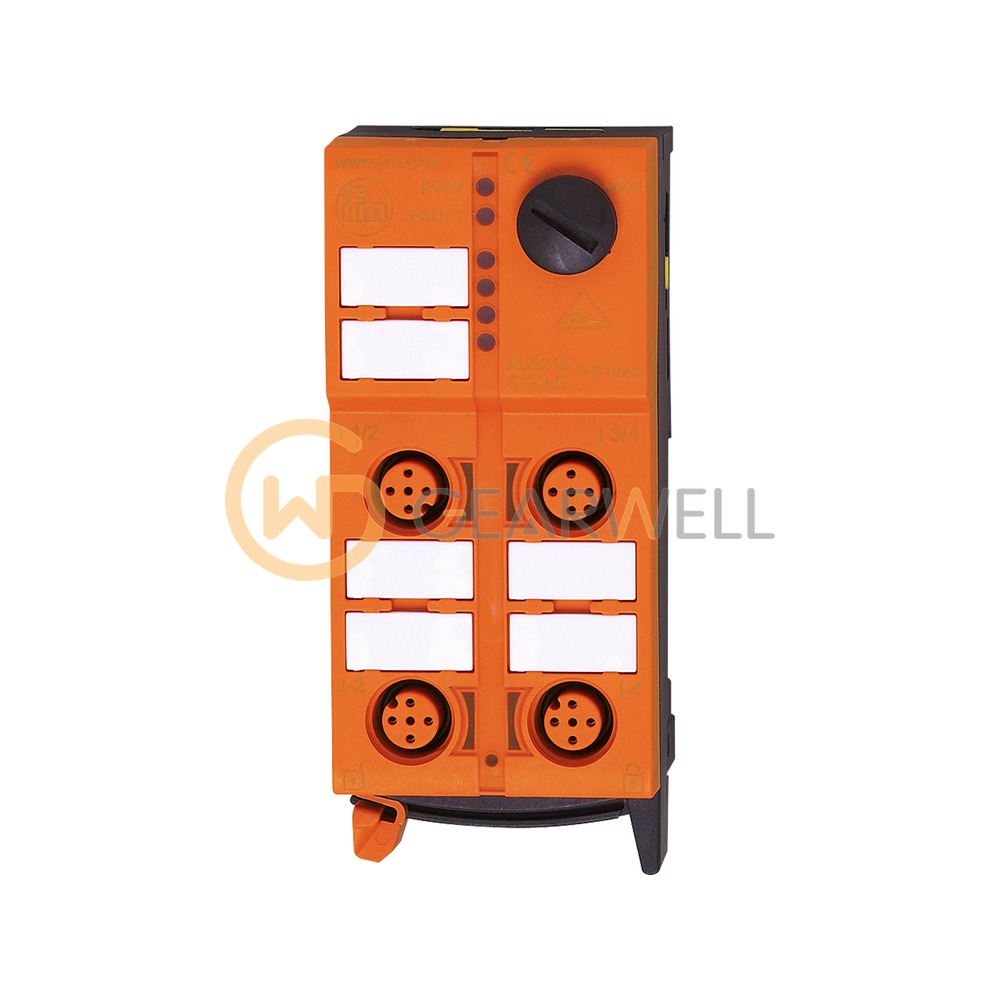

IFM AC505A AS-Interface ClassicLine Module
- Brand
- IFM
- Model
- AC505A
- GEARWELL SKU
- GWP-000008614
- Category
- PLCs & I/O
Key specifications
- Housing
- rectangular
- Materials
- PA; piercing contacts: CuSn6 nickel-plated and tin-plated
- Dimensions
- 103 x 45 x 44.7 mm
- Protection
- IP 50
- Operating voltage
- 26.5...31.6 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC505A (ClassicLine 4DI II 3D) is an AS-Interface ClassicLine module with quick mounting technology. It has four digital inputs, with PNP inputs powered from AS-i. On the AS-i side it supports AS-i versions 2.11 and 3.0 with slave profile S-0.0.E, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 250 mA. The housing measures 103 x 45 x 44.7 mm and is made of PA. It connects to the AS-i flat cable and mounts on a TH35 DIN rail, has four M12 sockets (A-coded, 4-pin) and is rated IP50 for -10…50 °C ambient. It carries ATEX marking II 3D Ex tc IIIB T80°C Dc X IP50, and ifm notes that mechanical protection must be provided, otherwise it must be installed with the impact protection housing (E7000A). Supplied with the lower part.
Technical reference
| Product name | IFM AC505A AS-Interface ClassicLine Module |
|---|---|
| Brand | IFM |
| Model | AC505A |
| Category | PLCs & I/O |
| Housing | rectangular |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
| Dimensions | 103 x 45 x 44.7 mm |
| Protection | IP 50 |
| Operating voltage | 26.5...31.6 DC V |
| Ambient temperature | -10...50 °C |
| Number of digital inputs | 4 |
| Max. current consumption from AS-i | 250 mA |
