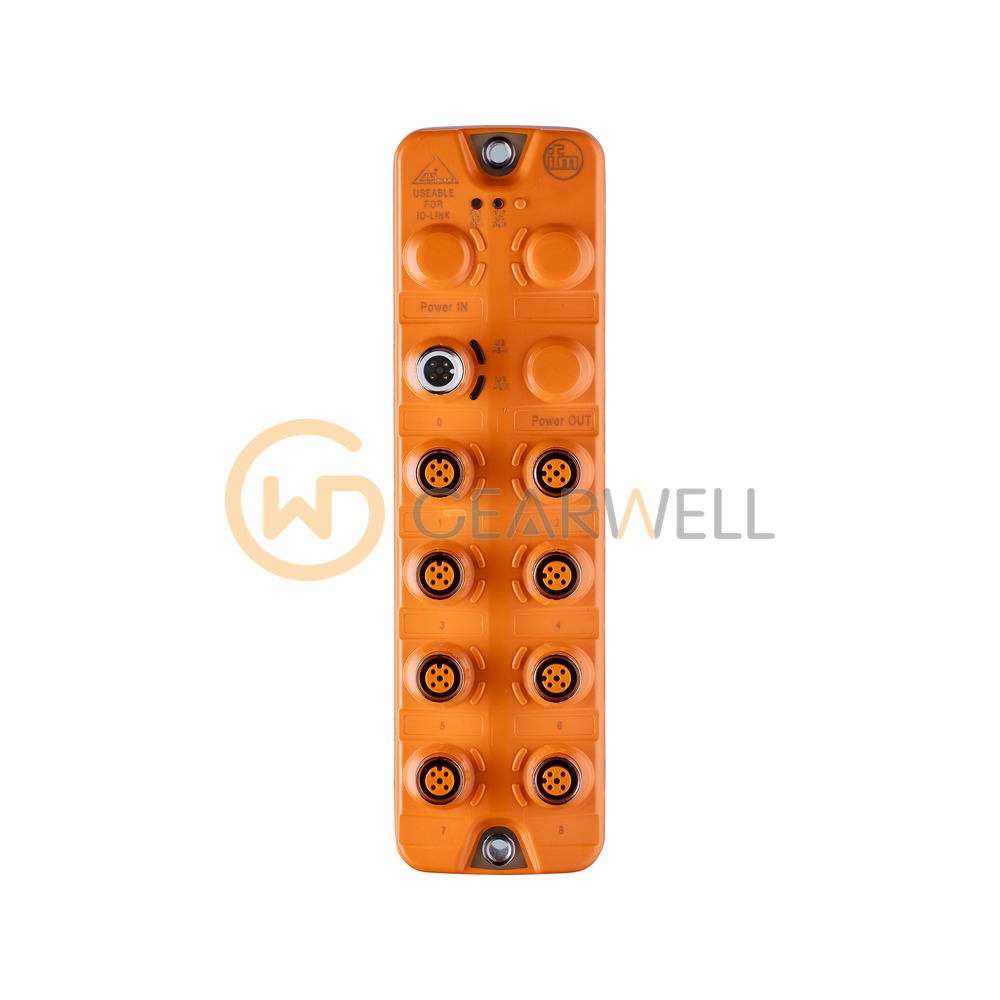

IFM AC5051 Splitter Box 8SB IP67 Passive Power Distributor
- Brand
- IFM
- Model
- AC5051
- GEARWELL SKU
- GWP-000008613
- Category
- Terminals, Cables & Connectors
Key specifications
- Weight
- 383.4 g
- Housing
- rectangular
- Materials
- housing: PA orange; plugs and sockets: brass nickel-plated
- Dimensions
- 208 x 59.3 x 38.4 mm
- Protection
- IP 65; IP 66; IP 67
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC5051 (Splitter Box 8SB IP67) is a passive power distributor that ifm lists for distributing AS-i or IO-Link supply voltage in the field. It takes 18…31.6 V DC on AS-i and 15…30 V DC on AUX, with ifm giving a current of 4000 mA on AS-i and up to 4000 mA on AUX, and detects overcurrent at 4400 mA ± 200 mA. The housing measures 208 x 59.3 x 38.4 mm and is made of orange PA. It mounts on a backplane, has an M12 socket (A-coded, 4-pin) and is rated IP65, IP66 and IP67 for -25…60 °C ambient.
Technical reference
| Product name | IFM AC5051 Splitter Box 8SB IP67 Passive Power Distributor |
|---|---|
| Brand | IFM |
| Model | AC5051 |
| Category | Terminals, Cables & Connectors |
| Weight | 383.4 g |
| Housing | rectangular |
| Materials | housing: PA orange; plugs and sockets: brass nickel-plated |
| Dimensions | 208 x 59.3 x 38.4 mm |
| Protection | IP 65; IP 66; IP 67 |
| Operating voltage | 18...31.6 DC (AS_i) V |
| Ambient temperature | -25...60 °C |
| Current consumption | 4000 (AS-i) mA |
