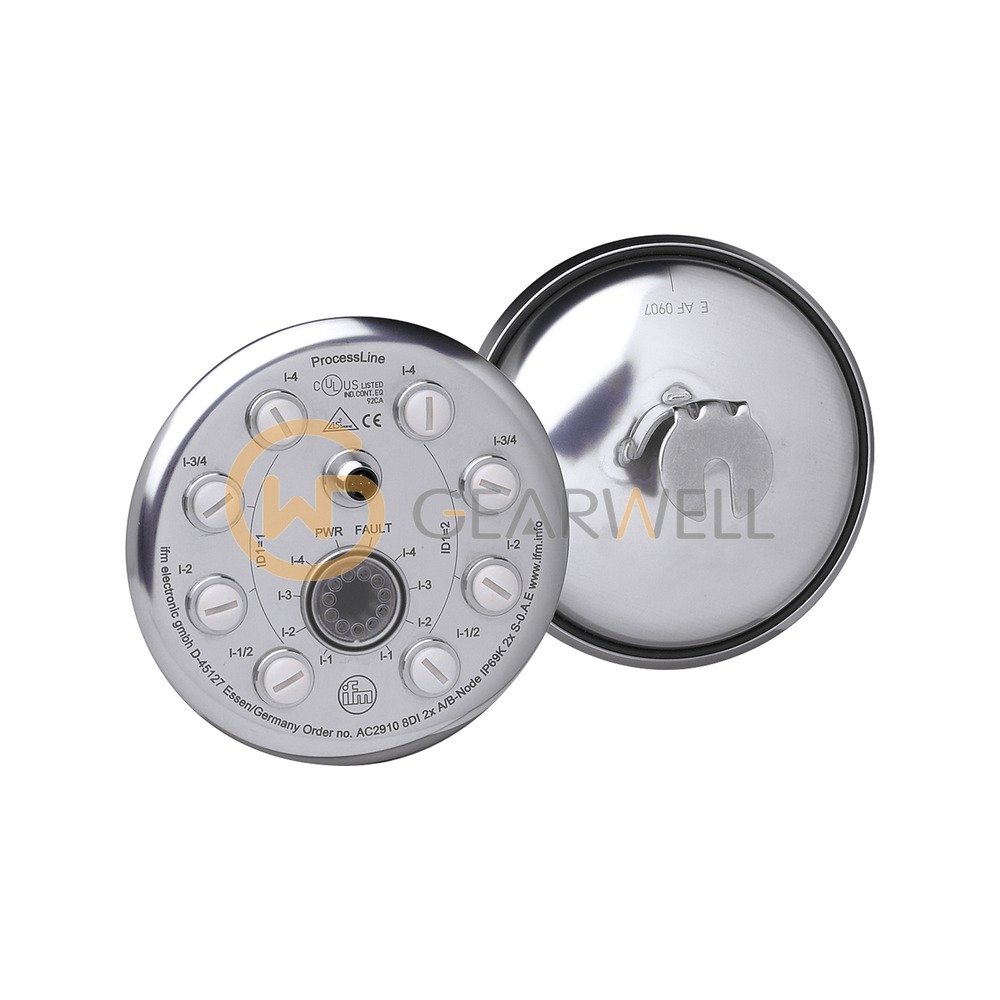

IFM AC2910 ProcessLine 8DI IP69K AS-Interface ProcessLine Module
- Brand
- IFM
- Model
- AC2910
- GEARWELL SKU
- GWP-000008610
- Category
- PLCs & I/O
Key specifications
- Housing
- cylindrical
- Materials
- threaded bush: stainless steel (316L/1.4404); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP
- Dimensions
- Ø 137.3 / L = 80 mm
- Protection
- IP 68; IP 69K
- Operating voltage
- 26.5...31.6 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm AC2910 (ProcessLine 8DI IP69K) is an AS-Interface ProcessLine module for sanitary and wet areas in the food industry. It has eight digital inputs, with PNP inputs (type 2 to IEC 61131-2) powered from AS-i. On the AS-i side it supports AS-i version 2.1 with slave profile S-0.A.E and extended (A/B) addressing, and it works with AS-i masters of profile M2, M3 and M4. It runs on 26.5…31.6 V DC from the AS-i line, drawing up to 500 mA. The tubular unit is Ø 137.3 mm and 80 mm long, with a stainless steel (1.4404 / 316L) threaded bush. It sits on a mounting base, has an M12 socket (A-coded, 5-pin) and is rated IP68 and IP69K for -5…70 °C ambient. ifm notes that it occupies two slave addresses and that the round cable connected to AS-i should not be longer than 2 m. Supplied with an M12 protective cap (E70297).
Technical reference
| Product name | IFM AC2910 ProcessLine 8DI IP69K AS-Interface ProcessLine Module |
|---|---|
| Brand | IFM |
| Model | AC2910 |
| Category | PLCs & I/O |
| Housing | cylindrical |
| Materials | threaded bush: stainless steel (316L/1.4404); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP |
| Dimensions | Ø 137.3 / L = 80 mm |
| Protection | IP 68; IP 69K |
| Operating voltage | 26.5...31.6 DC V |
| Ambient temperature | -5...70 °C |
| Number of digital inputs | 8 (2 x Slave) |
| Max. current consumption from AS-i | 500 mA |
