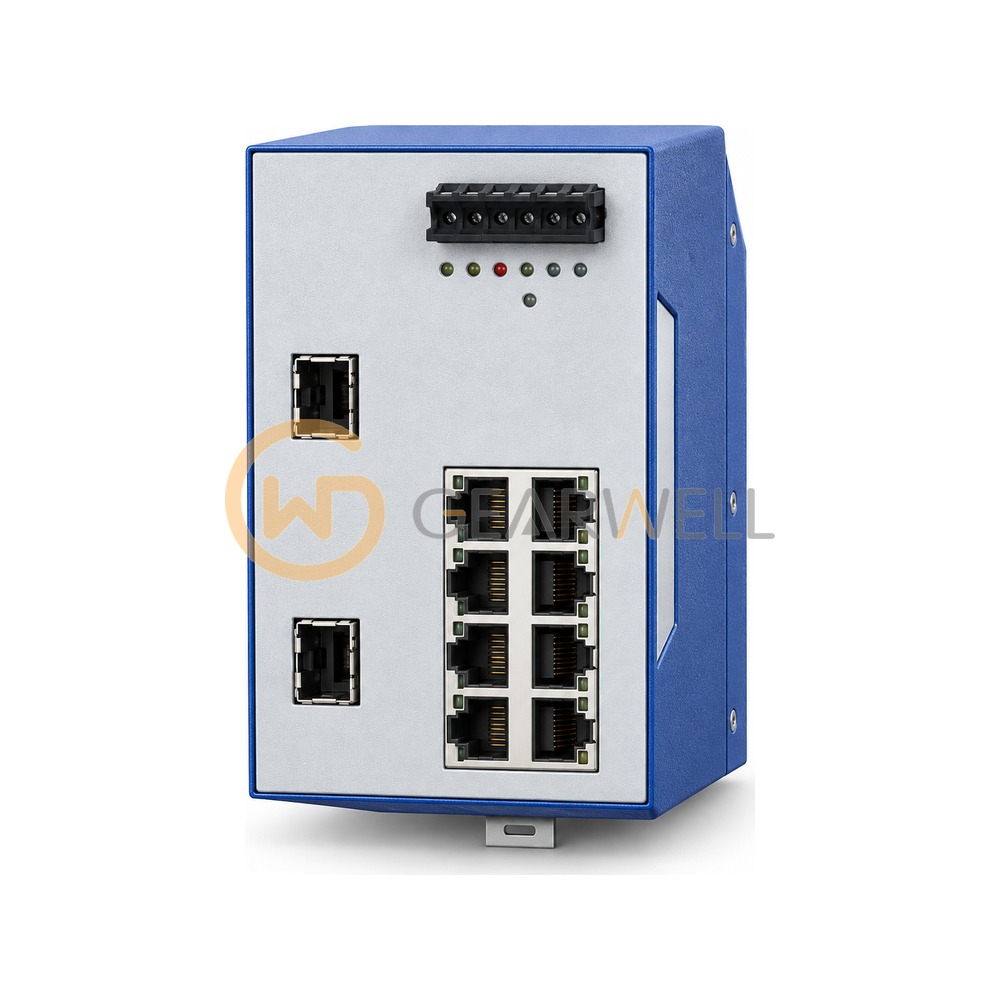

HIRSCHMANN RS20-0800T1T1SDAPHH07.1.01 RS20 Managed Rail Switch
- Brand
- HIRSCHMANN
- Model
- RS20-0800T1T1SDAPHH07.1.01
- GEARWELL SKU
- GWP-000013277
- Category
- Industrial Communication
Key specifications
- Product code
- RS20 - Rail Switch, Fast Ethernet
- Approvals (code A)
- US Class 1 Div. 2, cUL 508
- Power supply (code D)
- 12-48 V DC and 24 V AC
- Software version (code P)
- Layer 2 Professional
- Software release "07.1.01"
- as collected; not listed in the official configurator (release options: 09.1., XX.X. latest)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN RS20-0800T1T1SDAPHH07.1.01 RS20 Managed Rail Switch |
|---|---|
| Brand | HIRSCHMANN |
| Model | RS20-0800T1T1SDAPHH07.1.01 |
| Category | Industrial Communication |
| Product code | RS20 - Rail Switch, Fast Ethernet |
| Approvals (code A) | US Class 1 Div. 2, cUL 508 |
| Power supply (code D) | 12-48 V DC and 24 V AC |
| Software version (code P) | Layer 2 Professional |
| Software release "07.1.01" | as collected; not listed in the official configurator (release options: 09.1., XX.X. latest) |
| Temperature range (code S) | 0 to +60 °C |
| Fast Ethernet ports (code 08) | 8 x 10/100 Mbit/s |
| Uplink 1 / uplink 2 (codes T1, T1) | 1 x RJ45 / 1 x RJ45 |
| Configuration / OEM type (codes H, H) | Standard / Standard |
