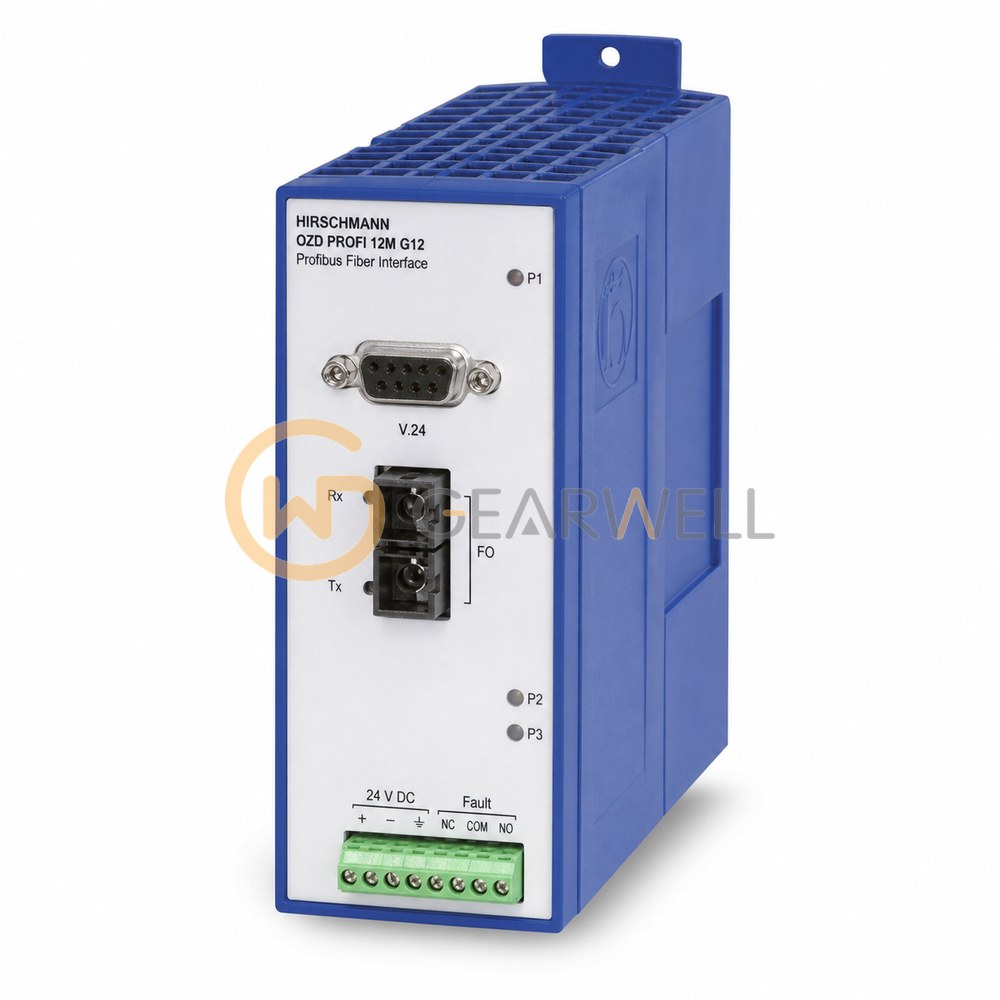

HIRSCHMANN OZD PROFI 12M G12 Profibus Fiber Interface
- Brand
- HIRSCHMANN
- Model
- OZD PROFI 12M G12
- GEARWELL SKU
- GWP-000001815
- Category
- Industrial Automation Parts
Key specifications
- Dimensions (W × H × D)
- 35 × 156 × 114 mm
- Order number
- 943 905-321
- Product type
- PROFIBUS rail repeater with electrical and optical interfaces
- Operating voltage
- 18–32 V DC (24 V DC typical)
- Optical connector
- BFOC/2.5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN OZD PROFI 12M G12 Profibus Fiber Interface |
|---|---|
| Brand | HIRSCHMANN |
| Model | OZD PROFI 12M G12 |
| Category | Industrial Automation Parts |
| Dimensions (W × H × D) | 35 × 156 × 114 mm |
| Order number | 943 905-321 |
| Product type | PROFIBUS rail repeater with electrical and optical interfaces |
| Operating voltage | 18–32 V DC (24 V DC typical) |
| Optical connector | BFOC/2.5 |
| Transmission rate | 9.6 kbit/s to 12 Mbit/s, automatic setting |
| Electrical interface | RS-485 |
| Operating temperature | 0 to 60 °C |
