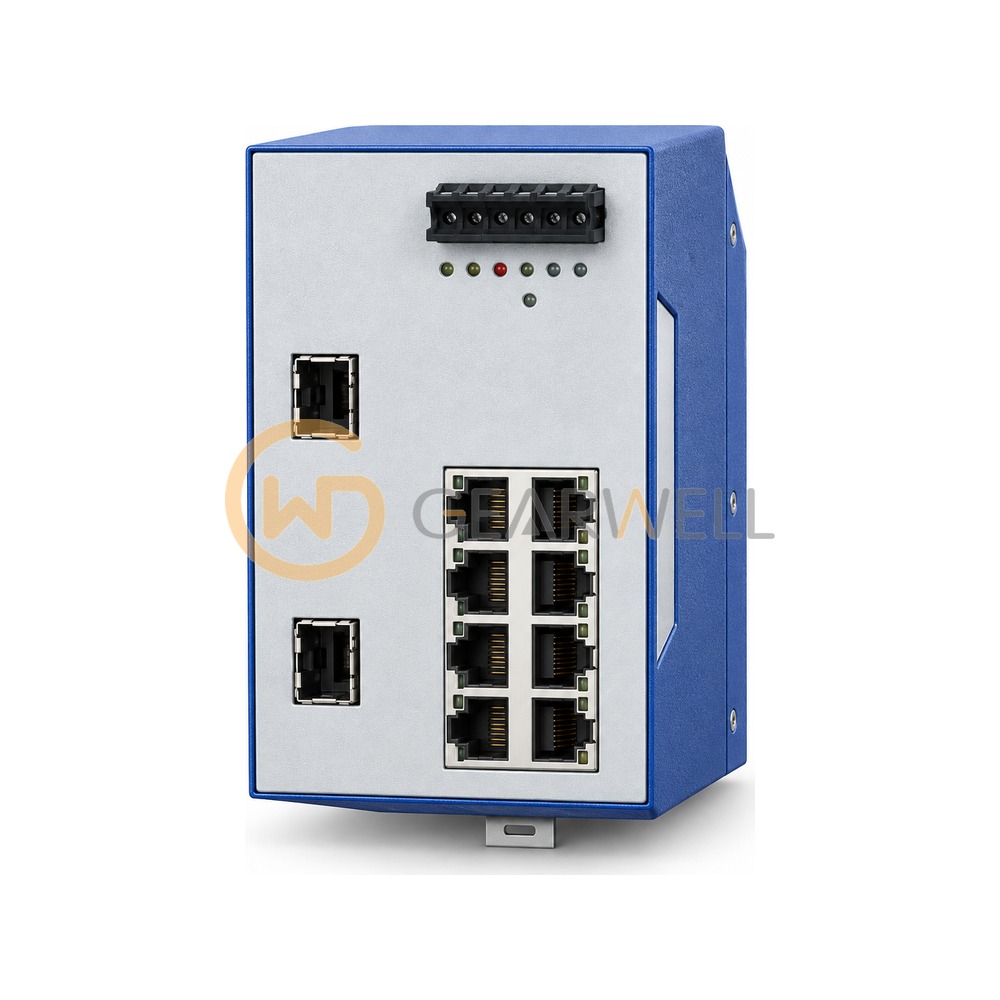

HIRSCHMANN RS20-0800M2T1TDAEWW07.0.02 RS20 Managed Rail Switch
- Brand
- HIRSCHMANN
- Model
- RS20-0800M2T1TDAEWW07.0.02
- GEARWELL SKU
- GWP-000013276
- Category
- Industrial Communication
Key specifications
- Product code
- RS20 - Rail Switch, Fast Ethernet
- Approvals (code A)
- US Class 1 Div. 2, cUL 508
- Uplink 1 (code M2)
- 1 x multimode SC
- Uplink 2 (code T1)
- 1 x twisted pair / RJ45
- Option letters "WW"
- as collected; not listed in the official configurator (configuration options P/H/E, OEM type options H/F/V)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HIRSCHMANN RS20-0800M2T1TDAEWW07.0.02 RS20 Managed Rail Switch |
|---|---|
| Brand | HIRSCHMANN |
| Model | RS20-0800M2T1TDAEWW07.0.02 |
| Category | Industrial Communication |
| Product code | RS20 - Rail Switch, Fast Ethernet |
| Approvals (code A) | US Class 1 Div. 2, cUL 508 |
| Uplink 1 (code M2) | 1 x multimode SC |
| Uplink 2 (code T1) | 1 x twisted pair / RJ45 |
| Option letters "WW" | as collected; not listed in the official configurator (configuration options P/H/E, OEM type options H/F/V) |
| Power supply (code D) | 12-48 V DC and 24 V AC |
| Software version (code E) | Layer 2 Enhanced |
| Software release "07.0.02" | as collected; not listed in the official configurator (release options: 09.1., XX.X. latest) |
| Temperature range (code T) | -40 to +70 °C |
| Fast Ethernet ports (code 08) | 8 x 10/100 Mbit/s |
